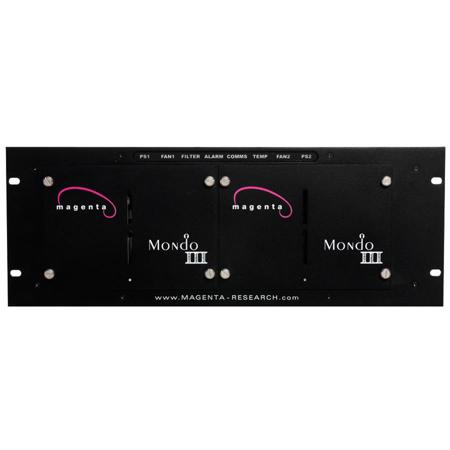

Magenta Research Mondo III 12U 32x48 Full-Matrix UTP Switch, 3 Frames

SKU: MRMM32X48 MFR: 222R3001-32X48
Earn VIP Reward Points

Key Features

  • Experience high resolution video switching with this 32x48 full-matrix UTP switch.
  • Enjoy low latency performance, ensuring seamless transitions for critical video feeds.
  • Benefit from reliable connection technology, minimizing downtime in demanding environments.
  • Simplify your setup with easy configuration options for video and audio signal routing.
  • Ensure good compatibility with various video formats: RGBHV, Component, Y/C, and Composite.
  • This video switcher offers strong security features, protecting your valuable content.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Magenta Research Mondo Matrix III Specifications

  • Switching Capability

    Video, Audio and serial

  • Extension Capability

    Built-in (50% of extension system)

  • Connectors

    1x RJ-45 per I/O

  • Maximum Configuration

    256x512

  • Upgradability

    Field Upgradable

  • Configuration/Frame

    32x48

  • Video Input

    100Ohms balanced, I-V p-p

  • Dynamic Headroom

    >3dB

  • Coupling & Gain

    DC, unity gain

  • Video Signal Type

    RGBHV, Component, Y/C, Composite

  • Inputs/4U Frame

    16xN (max 64) RJ-45 Female

  • Loop Out

    16xN (max 64) RJ-45 Female

  • Outputs/4U Frame

    16 RJ-45 Female

  • Audio Signals

    MultiView Component Dependent

  • Control

    RS-232/RS-422

  • Switch Control Interface

    10-pin Phoenix

  • Aux Serial Ports

    8x DB9 (optional)

  • Network Interface

    RJ-45 Female (optional)

  • Rackmount

    Standard 4U, 19" EIA

  • Enclosure

    Front panel powder coat
    Chassis: Passive aluminum

  • Power Input

    90 to 264V/50 to 60Hz, 150W max

  • Switch Speed

    50ns from command recognition

  • Vibration

    ISTA/NSTA IA in Carton

  • Compliance

    CE, FCC, Class A, Safety EN60950, RoHS

  • Humidity

    10 to 90% non-condensing

  • Temperature

    Operating: 32 to 104 deg. F/ 0 to 40 deg. C
    Storage: -40 to 158 deg. F / -40 to 70 deg. C

About Magenta Research Mondo Matrix III

A cutting-edge solution for high-definition video, stereo audio, and addressable duplex serial signals, the Mondo III 12U 32x48 Full-Matrix UTP Switch is a testament to Magenta's innovative technology. Building on the success of the Mondo Matrix II, the Mondo III offers enhanced performance, reliability, and redundancy, setting a new benchmark for UTP switching and extension.

The Mondo III is equipped with an optional addressable duplex capability, enabling digital signage applications to gather individual display data and metrics while maintaining independent control over each display. This advanced feature makes it an ideal choice for professional audio, video, and musical instrument applications requiring superior Ethernet connectivity.

The Mondo III is not only durable and high-quality, but it's also designed for future expansion. It allows for the addition of inputs and outputs in increments of 16, supporting an impressive maximum configuration of 256x512. This scalability ensures your investment is future-proof, adapting to your growing needs.

Compatibility with all MultiView products enables the extension of 1920x1200 video, stereo audio, and serial signals over a range of 2000ft/609m. This reliable switch can be programmed and controlled using the onboard touch-screen, Windows HyperTerminal, Magenta's Mondo Matrix Control Software, or third-party control systems such as AMX or Crestron.

The Mondo III also introduces the Mondo Direct option, integrating video inputs directly into the switch and eliminating the need for separate MultiView transmitters. This innovative feature, along with front-panel indicator lights, a replaceable air filter, two DB9 serial connections, true redundant power supplies, and a new backlit 2x16 character LCD, enhances the user experience and aids in configuration and diagnostics.

The Mondo III 12U 32x48 Full-Matrix UTP Switch is a comprehensive solution for HD-video, stereo audio, and serial signals switching and UTP extension. With its advanced features and scalability, it offers significant advantages in functionality, cost, power consumption, and installation complexity over BNC-based RGB switches.

Fully compatible with the MultiView -SAP Series, the Mondo III reduces extension equipment requirements by 50%, enabling the extension of HD-quality video, stereo audio, and addressable duplex serial signals over an unsurpassed range of 2000ft/609m. The Mondo III is a testament to Magenta's commitment to delivering advanced, reliable, and high-quality UTP switches that protect your investment and meet your evolving needs.

Magenta Research Mondo Matrix III Features

  • Advanced full-matrix UTP switch for high-definition video, stereo audio, and addressable duplex serial signals
  • Innovative addressable duplex capability for independent display control
  • Scalable from 16x16 to a maximum configuration of 256x512 for future-proof investment
  • Compatible with all MultiView products for extended range up to 2000ft/609m
  • Integrated video inputs with Mondo Direct option, eliminating need for separate transmitters
  • Enhanced user experience with front-panel indicator lights, replaceable air filter, and backlit 2x16 character LCD

Key Features

  • Experience high resolution video switching with this 32x48 full-matrix UTP switch.
  • Enjoy low latency performance, ensuring seamless transitions for critical video feeds.
  • Benefit from reliable connection technology, minimizing downtime in demanding environments.
  • Simplify your setup with easy configuration options for video and audio signal routing.
  • Ensure good compatibility with various video formats: RGBHV, Component, Y/C, and Composite.
  • This video switcher offers strong security features, protecting your valuable content.

What's in the box:

  • Magenta Research Mondo III 12U 32x48 Full-Matrix UTP Switch
  • Magenta Research 3 Year Warranty
