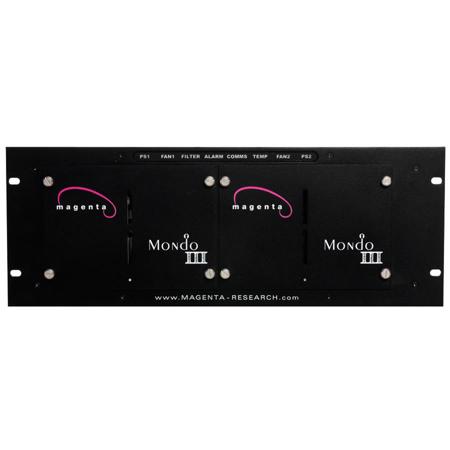

Magenta Research Mondo III 16U 32x64 Full-Matrix UTP Switch, 4 Frames

SKU: MRMM32X64 MFR: 222R3001-32X64
Earn VIP Reward Points

Key Features

  • Achieve seamless video switching with the Magenta Research 32x64 UTP Switch.
  • Enjoy reliable video distribution for RGBHV, Component, Y/C, and Composite signals.
  • This video switcher supports configurations up to 256x512 for ultimate scalability.
  • Benefit from low latency switching at 50ns for command recognition, enhancing user experience.
  • Field upgradable design ensures your video switch investment is future-proof and adaptable.
  • Control via RS-232/RS-422 offers easy integration with existing control systems.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Magenta Research Mondo Matrix III Specifications

  • Switching Capability

    Video, Audio and serial

  • Extension Capability

    Built-in (50% of extension system)

  • Connectors

    1x RJ-45 per I/O

  • Maximum Configuration

    256x512

  • Upgradability

    Field Upgradable

  • Configuration/Frame

    32x64

  • Video Input

    100Ohms balanced, I-V p-p

  • Dynamic Headroom

    >3dB

  • Coupling & Gain

    DC, unity gain

  • Video Signal Type

    RGBHV, Component, Y/C, Composite

  • Inputs/4U Frame

    16xN (max 64) RJ-45 Female

  • Loop Out

    16xN (max 64) RJ-45 Female

  • Outputs/4U Frame

    16 RJ-45 Female

  • Audio Signals

    MultiView Component Dependent

  • Control

    RS-232/RS-422

  • Switch Control Interface

    10-pin Phoenix

  • Aux Serial Ports

    8x DB9 (optional)

  • Network Interface

    RJ-45 Female (optional)

  • Rackmount

    Standard 4U, 19" EIA

  • Enclosure

    Front panel powder coat
    Chassis: Passive aluminum

  • Power Input

    90 to 264V/50 to 60Hz, 150W max

  • Switch Speed

    50ns from command recognition

  • Vibration

    ISTA/NSTA IA in Carton

  • Compliance

    CE, FCC, Class A, Safety EN60950, RoHS

  • Humidity

    10 to 90% non-condensing

  • Temperature

    Operating: 32 to 104 deg. F/ 0 to 40 deg. C
    Storage: -40 to 158 deg. F / -40 to 70 deg. C

About Magenta Research Mondo Matrix III

Discover the Magenta Research Mondo III 16U 32x64 Full-Matrix UTP Switch, an innovative and advanced networking device that redefines the standard for UTP switching and extension. This high-quality, durable switch is capable of switching and extending high-definition video, stereo audio, and addressable duplex serial signals all in one platform.

Building on the success of its predecessor, the Mondo Matrix II, the Mondo III introduces optional addressable duplex capability and a host of performance improvements. This new feature enables digital signage applications to gather individual display data and metrics, while also offering independent control over each display.

The Mondo III is not only reliable but also future-proof, with the ability to upgrade and add inputs and outputs in increments of 16. It supports an impressive maximum configuration of 256x512 and is compatible with all MultiView products, enabling the extension of 1920x1200 video, stereo audio, and serial signals over a range of up to 2000ft/609m.

Programming and controlling the Mondo III is a breeze, thanks to its onboard touchscreen, compatibility with Windows HyperTerminal, Magenta's Mondo Matrix Control Software, and third-party control systems like AMX or Crestron. The Mondo III also offers the option to integrate video inputs directly into the switch, eliminating the need for separate MultiView transmitters.

The Mondo III comes with a host of upgrades, including front-panel indicator lights for easy status checks on power supplies, fans, filters, and temperature. It also features a replaceable air filter, two DB9 serial connections, true redundant power supplies, and a new backlit 2x16 character LCD to assist in configuration and diagnostics.

With the Mondo III, you can enjoy full matrix switching and UTP extension of HD-video, stereo audio, and serial signals. It's scalable and field upgradable from 16x16 to 256x512, compatible with all MultiView-SAP transmitters, receivers, and distribution amplifiers.

The Mondo III UTP switching platform delivers significant advantages in functionality, cost, power consumption, and installation complexity over BNC-based RGB switches. It's fully compatible with the MultiView -SAP Series, reducing extension equipment requirements by 50% and enabling extension of HD-quality video, stereo audio, and addressable duplex serial signals over an unsurpassed range of 2000ft/609m.

Invest in the Mondo III and protect your investment with a modulator platform that's scalable from 16x16 to an unmatched switching capacity of 256x512. It allows for additional inputs and outputs to be added in the field in increments of 16, ensuring cost-effective upgradability for the future. Experience the difference with the Mondo III 16U 32x64 Full-Matrix UTP Switch.

Magenta Research Mondo Matrix III Features

  • Advanced full-matrix UTP switch with 32x64 configuration for extensive networking setups
  • High-definition video, stereo audio, and serial signal extension up to 2000ft/609m
  • Scalable and field upgradable design, expandable from 16x16 to 256x512
  • Compatible with MultiView-SAP transmitters, receivers, and distribution amplifiers
  • Onboard touchscreen and third-party control system compatibility for easy management
  • Innovative addressable duplex serial capability for enhanced digital signage control

Key Features

  • Achieve seamless video switching with the Magenta Research 32x64 UTP Switch.
  • Enjoy reliable video distribution for RGBHV, Component, Y/C, and Composite signals.
  • This video switcher supports configurations up to 256x512 for ultimate scalability.
  • Benefit from low latency switching at 50ns for command recognition, enhancing user experience.
  • Field upgradable design ensures your video switch investment is future-proof and adaptable.
  • Control via RS-232/RS-422 offers easy integration with existing control systems.

What's in the box:

  • Magenta Research Mondo III 16U 32x64 Full-Matrix UTP Switch
  • Magenta Research 3 Year Warranty
