Magenta Research Mondo III 8U 64x32 Full-Matrix UTP Switch, 2 Frames

It's time to meet the Magenta Mondo Matrix III, a full-matrix switching platform that's redefining the standards for UTP switching and extension. This advanced device is capable of seamlessly switching and extending high-definition video, stereo audio, and addressable duplex serial signals, all within a single platform.

Building on the success of the Mondo Matrix II, the Mondo Matrix III introduces optional addressable duplex capability, along with a host of performance enhancements and redundancy improvements. This new feature empowers digital signage applications to gather individual display data and metrics while maintaining independent control over each display.

The Mondo Matrix III is not only a powerful tool but also a future-proof investment. It allows for the addition of inputs and outputs in increments of 16 and supports an unrivaled maximum configuration of 256x512. It's compatible with all MultiView products, enabling the extension of 1920x1200 video, stereo audio, and serial signals over a range of up to 2000ft/609m.

Control and programming of the Mondo Matrix III are made easy with the onboard touchscreen, Windows HyperTerminal, Magenta's Mondo Matrix Control Software, or third-party control systems such as AMX or Crestron. The Mondo III also offers the option to integrate video inputs directly into a switch, eliminating the need for separate MultiView transmitters.

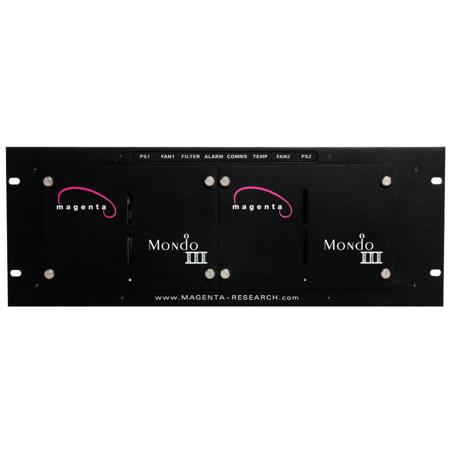

The Mondo Matrix III is fully compatible with the previous Mondo Matrix, but it also offers a range of upgrades and additional features at no extra cost. These include front-panel indicator lights for easy status checks on power supplies, fans, filters, and temperature. The Mondo III also introduces a replaceable air filter, two DB9 serial connections, true redundant power supplies, and a new backlit 2x16 character LCD to aid in configuration and diagnostics.

The Mondo III UTP switching platform delivers significant advantages in functionality, cost, power consumption, and installation complexity over BNC-based RGB switches. It's fully compatible with the Multiview -SAP Series, reducing extension equipment requirements by 50% and enabling the extension of HD-quality video, stereo audio, and addressable duplex serial signals over an unsurpassed range of 2000ft/ 609m.

The Mondo III is a scalable platform, ranging from 16x16 to an unmatched switching capacity of 256x512. It future-proofs your investment by allowing for additional inputs and outputs to be added in the field in increments of 16. With the Mondo III, you can minimize your capital expenditure to today's needs while ensuring cost-effective upgradability for the future.
