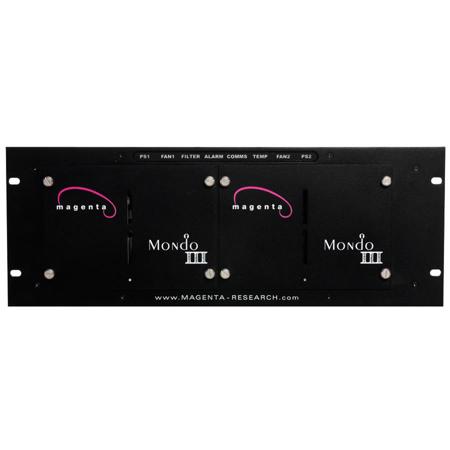

Magenta Research Mondo III 12U 64x48 Full-Matrix UTP Switch, 3 Frames

SKU: MRMM64X48 MFR: 222R3001-64X48
Earn VIP Reward Points

Key Features

  • Achieve seamless video switching with this 64x48 full-matrix UTP switch.
  • Enjoy reliable video distribution across multiple displays with low latency.
  • Easily manage video signals with intuitive RS-232/RS-422 switch control.
  • This video switcher supports RGBHV, Component, Y/C, & Composite signals.
  • Scale your setup with a field-upgradable matrix, up to 256x512 configuration.
  • Ensure high-quality video with >3dB dynamic headroom for optimal clarity.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Magenta Research Mondo Matrix III Specifications

  • Switching Capability

    Video, Audio and serial

  • Extension Capability

    Built-in (50% of extension system)

  • Connectors

    1x RJ-45 per I/O

  • Maximum Configuration

    256x512

  • Upgradability

    Field Upgradable

  • Configuration/Frame

    64x48

  • Video Input

    100Ohms balanced, I-V p-p

  • Dynamic Headroom

    >3dB

  • Coupling & Gain

    DC, unity gain

  • Video Signal Type

    RGBHV, Component, Y/C, Composite

  • Inputs/4U Frame

    16xN (max 64) RJ-45 Female

  • Loop Out

    16xN (max 64) RJ-45 Female

  • Outputs/4U Frame

    16 RJ-45 Female

  • Audio Signals

    MultiView Component Dependent

  • Control

    RS-232/RS-422

  • Switch Control Interface

    10-pin Phoenix

  • Aux Serial Ports

    8x DB9 (optional)

  • Network Interface

    RJ-45 Female (optional)

  • Rackmount

    Standard 4U, 19" EIA

  • Enclosure

    Front panel powder coat
    Chassis: Passive aluminum

  • Power Input

    90 to 264V/50 to 60Hz, 150W max

  • Switch Speed

    50ns from command recognition

  • Vibration

    ISTA/NSTA IA in Carton

  • Compliance

    CE, FCC, Class A, Safety EN60950, RoHS

  • Humidity

    10 to 90% non-condensing

  • Temperature

    Operating: 32 to 104 deg. F/ 0 to 40 deg. C
    Storage: -40 to 158 deg. F / -40 to 70 deg. C

About Magenta Research Mondo Matrix III

Introducing Magenta's Mondo Matrix III
A full-matrix switching platform capable of switching and extending hi-definition video, stereo audio and addressable duplex serial signals in one switching platform. Building on the incredible success of the Mondo Matrix II, Magenta's Mondo Matrix III redefines the standard for UTP switching and extension by adding optional addressable duplex capability and a variety of redundancy and performance improvements. The new addressable duplex serial capability enables digital signage applications to collect individual display data and metrics in addition to independent control over each display. Like its predecessor, the field upgradable Mondo III also future proofs your investment by allowing for the addition of inputs and outputs in increments of 16 and supports an unprecedented maximum configuration of 256x512.

Compatibility with all MultiView products enables the extension of 1920x1200 video, stereo audio and serial signals over a range of 2000ft/609m. The Mondo Matrix III can be programmed and controlled using the onboard touch-screen, Windows HyperTerminal, Magenta's Mondo Matrix Control Software or 3rd party control systems such as AMX or Crestron. The Mondo III also supports the option to integrate video inputs directly into a switch. The Mondo Direct option eliminates the need for separate MultiView transmitters. The Mondo Matrix III, while fully compatible with the previous Mondo Matrix, offers a host of upgrades, plus additional features and benefits at no additional cost. Mondo III now includes front-panel indicator lights, allowing switch operators to check status on the unit's power supplies, fans, filter and temperature at a glance. Mondo III also adds a replaceable air filter, two DB9 serial connections, true redundant power supplies and a new backlit 2x16 character LCD to aid in configuration and diagnostics.

• Full matrix switching and UTP extension of HD-video, stereo audio and serial signals
• -SAP option supports addressable duplex serial through a switch
• Audio and serial signals can be switched independently of video
• Scalable and field upgradable from 16x16 to 256x512
• Compatible with all MultiView-SAP transmitters, receivers and distribution amplifiers
• Enables extension of 1920x1200 resolution video from 1 to 2000ft/609m1
• Option to add up to 8 serial input ports (-SAP version only)
• 64x16 support in a 4U Chassis uses significantly lower rack-space than RGB co-axial switchers

Save Equipment and Labor Cost with UTP Switching
The Mondo III UTP switching platform delivers significant advantages in functionally, cost, power consumption and installation complexity over BNC-based RGB switches.

Fully Compatible with Multiview -SAP Series
With built in support for UTP extension, the Mondo III, combined with Magenta's MultiView-SAP transmitters and receivers, reduce the extension equipment requirements by 50% and enables extension of HD-quality video, stereo audio and addressable duplex serial signals over an unsurpassed range of 2000ft/ 609m. Two-way serial functionality is retained even when daisy chaining receivers off a Mondo III -SAP output!

Protect Your Investment
Mondo III delivers a modulator platform which is scalable from 16x16 to an unmatched switching capacity of 256x512. It also future-proofs your investment by allowing for additional inputs and outputs to be added in the field in increments of 16. With the Mondo III, you can minimize your capital expenditure to today's needs while ensuring cost-effective upgradability for the future.

Key Features

  • Achieve seamless video switching with this 64x48 full-matrix UTP switch.
  • Enjoy reliable video distribution across multiple displays with low latency.
  • Easily manage video signals with intuitive RS-232/RS-422 switch control.
  • This video switcher supports RGBHV, Component, Y/C, & Composite signals.
  • Scale your setup with a field-upgradable matrix, up to 256x512 configuration.
  • Ensure high-quality video with >3dB dynamic headroom for optimal clarity.

What's in the box:

  • Magenta Research Mondo III 12U 64x48 Full-Matrix UTP Switch
  • Magenta Research 3 Year Warranty
