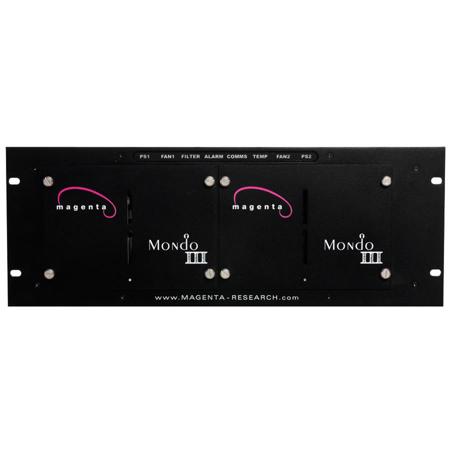

Magenta Research Mondo III 16U 64x64 Full-Matrix UTP Switch, 4 Frames

SKU: MRMM64X64 MFR: 222R3001-64X64
Earn VIP Reward Points

Key Features

  • Manage video, audio, and serial signals effortlessly with this full-matrix UTP Switch.
  • Achieve maximum configuration with a 64x64 video switcher setup per frame.
  • Enjoy field upgradability, ensuring your video switch investment remains future-proof.
  • Experience fast switching speed with only 50ns latency from command recognition.
  • Control via RS-232/RS-422, offering versatile switch control interface options.
  • Reliable video distribution with built-in extension capability for streamlined setup.
See More Product Details
Special Order?Estimated to Ship: 10/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Magenta Research Mondo Matrix III Specifications

  • Switching Capability

    Video, Audio and serial

  • Extension Capability

    Built-in (50% of extension system)

  • Connectors

    1x RJ-45 per I/O

  • Maximum Configuration

    256x512

  • Upgradability

    Field Upgradable

  • Configuration/Frame

    64x64

  • Video Input

    100Ohms balanced, I-V p-p

  • Dynamic Headroom

    >3dB

  • Coupling & Gain

    DC, unity gain

  • Video Signal Type

    RGBHV, Component, Y/C, Composite

  • Inputs/4U Frame

    16xN (max 64) RJ-45 Female

  • Loop Out

    16xN (max 64) RJ-45 Female

  • Outputs/4U Frame

    16 RJ-45 Female

  • Audio Signals

    MultiView Component Dependent

  • Control

    RS-232/RS-422

  • Switch Control Interface

    10-pin Phoenix

  • Aux Serial Ports

    8x DB9 (optional)

  • Network Interface

    RJ-45 Female (optional)

  • Rackmount

    Standard 4U, 19" EIA

  • Enclosure

    Front panel powder coat
    Chassis: Passive aluminum

  • Power Input

    90 to 264V/50 to 60Hz, 150W max

  • Switch Speed

    50ns from command recognition

  • Vibration

    ISTA/NSTA IA in Carton

  • Compliance

    CE, FCC, Class A, Safety EN60950, RoHS

  • Humidity

    10 to 90% non-condensing

  • Temperature

    Operating: 32 to 104 deg. F/ 0 to 40 deg. C
    Storage: -40 to 158 deg. F / -40 to 70 deg. C

About Magenta Research Mondo Matrix III

For businesses and organizations seeking a sophisticated networking solution, the Mondo III 16U 64x64 Full-Matrix UTP Switch, 4 Frames by Magenta Research is a high-tech, state-of-the-art choice. This advanced switch is designed to handle high-definition video, stereo audio, and addressable duplex serial signals, all within one platform. It's a significant upgrade from the already successful Mondo Matrix II, offering optional addressable duplex capability and numerous performance enhancements.

The Mondo III 16U 64x64 Full-Matrix UTP Switch is a versatile tool for digital signage applications, allowing for the collection of individual display data and metrics, as well as independent control over each display. This innovative switch is also field-upgradable, ensuring your investment is future-proofed. It allows for the addition of inputs and outputs in increments of 16, supporting a maximum configuration of 256x512.

Compatibility with all MultiView products enables the extension of 1920x1200 video, stereo audio, and serial signals over a range of 2000ft/609m. The Mondo III can be programmed and controlled using various methods, including the onboard touch-screen, Windows HyperTerminal, Magenta's Mondo Matrix Control Software, or third-party control systems such as AMX or Crestron.

The Mondo III also introduces the Mondo Direct option, which integrates video inputs directly into the switch, eliminating the need for separate MultiView transmitters. This switch is equipped with front-panel indicator lights for easy status checks on power supplies, fans, filters, and temperature. Additional features include a replaceable air filter, two DB9 serial connections, true redundant power supplies, and a new backlit 2x16 character LCD for configuration and diagnostics.

The Mondo III 16U 64x64 Full-Matrix UTP Switch is a scalable solution, field-upgradable from 16x16 to 256x512. It's fully compatible with all MultiView-SAP transmitters, receivers, and distribution amplifiers, enabling the extension of high-resolution video from 1 to 2000ft/609m. This switch offers significant advantages in functionality, cost, power consumption, and installation complexity over BNC-based RGB switches. With the Mondo III, you can minimize your capital expenditure while ensuring cost-effective upgradability for the future.

Magenta Research Mondo Matrix III Features

  • High-tech full-matrix UTP switch with 64x64 capability, ideal for complex networking setups
  • Advanced features including high-definition video, stereo audio, and duplex serial signal switching
  • Field-upgradable design, allowing for future expansion of inputs and outputs in increments of 16
  • Compatible with all MultiView products, supporting extension of high-resolution video up to 2000ft/609m
  • Integrated Mondo Direct option for direct video input, eliminating the need for separate transmitters
  • Enhanced user interface with front-panel indicator lights, backlit LCD, and multiple control options

Key Features

  • Manage video, audio, and serial signals effortlessly with this full-matrix UTP Switch.
  • Achieve maximum configuration with a 64x64 video switcher setup per frame.
  • Enjoy field upgradability, ensuring your video switch investment remains future-proof.
  • Experience fast switching speed with only 50ns latency from command recognition.
  • Control via RS-232/RS-422, offering versatile switch control interface options.
  • Reliable video distribution with built-in extension capability for streamlined setup.

What's in the box:

  • Magenta Research Mondo III 16U 64x64 Full-Matrix UTP Switch
  • Magenta Research 3 Year Warranty
