Matrox VS4Recorder Pro Software and VS4 Quad HD-SDI Capture Card for Telestream Wirecast Pro

-- Quad HD Capture Card --

Stream and record multi-camera live events
Matrox VS4's powerful recording capabilities let you record up to four channels simultaneously using the VS4Recorder Pro stand-alone recording application. Matrox VS4 can also be used to create video streaming productions with Telestream Wirecast.

Capture up to four HD video streams
Matrox VS4 lets you take advantage of professional broadcast video and audio sources for the utmost quality in your internet productions. Using a single PCIe slot, Matrox VS4 provides up to four independent HD inputs with up to eight embedded audio channels per source, taking up an absolute minimum of real estate in your PC.

Effortless on-site set-up
Just hook up your cameras and Matrox VS4 automatically detects the presence, resolution and frame rate of all inputs so you don't have to manually set up each source. Because all inputs on Matrox VS4 are independent, you can use HD and SD cameras in the same production.

Extensive audio support
Matrox VS4 captures up to eight channels of embedded audio on each input. You have the flexibility to go from a simple stereo mix to surround sound for your post-event editing needs.

Expect excellence
Award-winning Matrox Video technology powers a full range of content creation and delivery platforms used by broadcasters, post-production facilities, project studios, corporate communicators and videographers worldwide.

Quad HD capture and ISO recording card for leading streaming production software
Create video streaming productions that are visually striking and grab your audience's attention. The combination of Matrox VS4 and Telestream Wirecast for Windows lets you switch or mix multiple live video feeds and pre-recorded clips while adding graphics and effects. This solution is ideal for internet broadcasts of sports, religious services, corporate meetings and other live events. In addition, Matrox provides an ISO recording tool for Telestream Wirecast providing high-quality recordings of your video sources for post event editing.

Matrox DirectShow Filters
Matrox provides source filters for Microsoft DirectShow for Windows. Applications such as Metus Ingest make use of these filters. Matrox DirectShow source filters can also be used by programmers looking to write custom software to interface with Matrox hardware.

-- VS4Recorder Pro Software --

Arrive. Connect. Record - Multi-camera event recording made simple
The Matrox VS4Recorder Pro software lets you frame accurately record four live audio/video feeds using a Matrox VS4 quad HD-SDI capture card. It's ideal for recording live multi-camera productions like concerts and sporting events to create video assets that can be easily repurposed and archived. The VS4Recorder Pro gives you two different recording modes: "multicam", which provides synchronized frame accurate captures and "independent", which offers a wide range of video and audio codecs to choose from. And what's more, VS4Recorder Pro simultaneously provides a complete multiviewer experience.

Capture NLE-friendly files
Capture to industry-recognized codecs for use with your NLE of choice without transcoding. The efficient, high-quality Matrox MPEG-2 I-frame codec at up to 300Mb/s is provided in an AVI wrapper. H.264 is provided in either MOV or MP4 wrappers. And DV/DVCAM, DVCPRO, DVCPRO50 and DVCPRO HD QuickTime files are provided in MOV wrappers. Global audio settings include audio codecs for .wav and .aac files with bit rate, bit depth and stereo/mono options.

Automatic input detection
Connect your video sources, start VS4Recorder Pro and begin recording. VS4Recorder Pro automatically detects your video format. Each input is independent so you can capture HD and SD in the same recording session.

Frame accurate recording
Easily record multiple angles of a single event with 100% frame accuracy with VS4Recorder Pro's multicam mode. With a single click, all inputs begin recording in sync. Once a session is underway, you can stop any input without interrupting the other inputs. When finished, import the files into an NLE. All files will be perfectly in sync on the timeline.

Independent recording
Quickly and easily capture content for archiving or repurposing by recording any input independently. Monitor multiple video signals to acquire a video asset at the push of a button.

High-quality multi-viewer

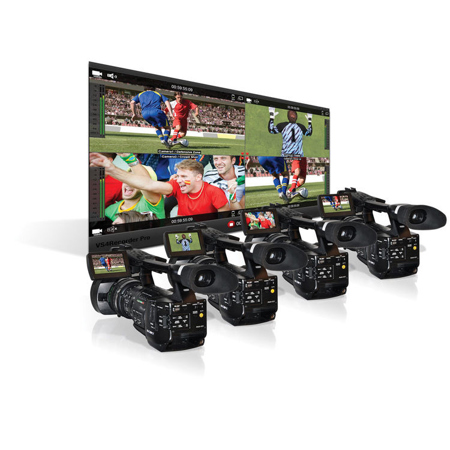

VS4Recorder Pro offers high-quality video monitoring of all inputs. Thanks to patent-pending Matrox technology, video quality is pristine even when viewing interlaced sources on progressive computer monitors. VS4Recorder Pro accurately represents your incoming video signals at any video window size and offers single- and quad-view modes for a customizable multi-viewing experience. Use quad-view mode to preview all four inputs simultaneously or switch to single-view mode and cycle through your inputs.

Split-up the recording
Automatically split your recording into separate files. VS4Recorder Pro will automatically split your recording into separate files, switching to a new file without losing a single frame. You can begin editing the split files as soon as each one is created.

Unattended recording
Set a capture duration. VS4Recorder Pro will stop recording automatically at the end of the time specified.

Informative on-screen display
Configure your VS4Recorder Pro interface just the way you like it. Label and file name overlays in each quadrant can be set to remain on screen or auto-hide after a period of mouse inactivity. Each quadrant also provides controls for source recording, audio monitoring, view mode, elapsed recording time and hard drive status in a popover area that appears/disappears on mouse activity/inactivity. VS4Recorder Pro also provides visual cues showing the amount of storage and the length of record time remaining on your target hard drive so you don't miss important content.

Beyond four channel recording
Use the VS4Control feature for synchronized, frame-accurate recording of an unlimited number of video sources. Simply by networking multiple VS4 machines together in a master-slave configuration, you can capture as many channels as you want. On a single network you can have as many VS4 units as needed and group them into any number of master/slave configurations. The master/slave groupings can be easily re-assigned in any way at any time.

Timecode and metadata support
Stop looking for visual or audio cues to sync your clips. VS4Recorder Pro frame accurately captures your video sources providing easy clip synchronization for any NLE. Metadata support for Adobe Premiere CC/CS6 includes original SDI timecode, the session's timecode or the system time timecode. Additional metadata support provided by VS4Recorder Pro includes label, file names, session name, machine name, event markers and more.

Event markers
Store event markers while recording for use with Adobe Premiere simply by hitting the "star" key. It's easy to quickly visualize highlight moments.

Audio monitoring
Navigate to any quadrant and click the speaker icon to monitor the input's selected audio pair. VS4Recorder Pro automatically directs the audio source to your computer's sound card. Mouse over any speaker icon and a channel-selection flyout appears, offering all available channels by audio pair. In addition, VU meters let you visually monitor up to eight channels of embedded audio per video input.

Shortcut keys
Use your mouse or the predefined shortcut keys to control VS4Recorder Pro. Switch between quad-view, single-view and full-screen modes; cycle through your inputs; or start/stop recording an input or a multi-cam session.

Integrate Matrox VS4Recorder Pro into your own application
For remote control of VS4Recoder Pro, Matrox offers the VS4Recorder Pro API that lets you easily create control software to start, stop and get status information. The API can also be used by automation system programmers to integrate control of VS4Recoder Pro within automation systems such as those from Crestron.

Integrate with Crestron
The VS4Recorder Pro API is an ideal way to integrate VS4Recorder Pro functionality into an existing classroom, boardroom or other space equipped with a Crestron control system. VS4Recorder Pro registered users are invited to download a sample SIMPL module written to run on Crestron 2-Series and 3-Series Room Media Controllers.

Matrox DirectShow Filters
Matrox provides source filters for Microsoft DirectShow for Windows. Applications such as StudioCoast vMix and Metus Ingest make use of these filters. Matrox DirectShow source filters can also be used by programmers looking to write custom software to interface with Matrox hardware.
