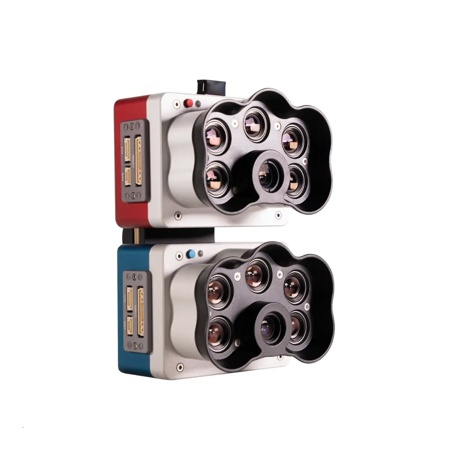

MicaSense RedEdge-P Dual Multispectral Sensor Kit

SKU: MS80500106 MFR: 805-00106
Earn VIP Reward Points

Key Features

  • Capture precise data with this multispectral sensor, perfect for environmental monitoring.
  • Achieve high-resolution imagery with the 5.1 MP RGB output, aligned for accurate analysis.
  • Utilize the calibrated reflectance panel for consistent, reliable data in every drone flight.
  • Enhance your drone imagery with multiple spectral bands, from coastal blue to near-IR.
  • Ensure stable image capture with advanced gimbal compatibility for clear aerial shots.
  • Expand your drone's capabilities with versatile integration cables & mounting hardware included.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

MicaSense RedEdge-P Specifications

  • Spectral Bands

    Coastal blue 444(28)
    Blue 475(32), Green 531(14)
    Green 560(27), Red 650(16)
    Red 668(14)
    Red Edge 705(10)
    Red Edge 717(12)
    Near-IR 740(18)
    Near-IR 842(57)

  • RGB output

    5.1 MP (global shutter, aligned with all bands)

  • Sensor resolution

    1456 x 1088 (1.6 MP per multispectral band)
    2464 x 2056 (5.1 MP panchromatic band)

  • Ground sample distance

    3" (7.7cm) per pixel (per multispectral band) at 400' (120m) AGL
    1.5" (3.98cm) per pixel (panchromatic band) at 400' (120m) AGL

  • Field of view

    50 Degree HFOV x 38 Degree VFOV (multispectral)
    44 Degree HFOV x 38 Degree VFOV (panchromatic)

  • Capture rate

    Up to 3 images per second raw DNG

  • Storage

    CFexpress card

  • Interfaces

    Three configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for Wi-Fi. Serial. 10/100/1000 Ethernet

  • External power

    7.0 V - 25.2 V

  • Power input

    11/14.0/20W (standby, average, peak)

  • Heat

    Ambient without airflow: 0-104 Degree F (0-40 Degree C)
    Ambient with airflow >0.5 meter per second / >1.1 mph: 0-122 Degree F (0-50 Degree C)

  • IP rating

    IP4X

  • Dimensions

    5.1 x 3.1 x 3.5" (13.2 x 8.8 x 9.67cm)

  • Weight

    26.2 oz (745g) (Two sensors, Mounting hardware, DLS2, and cable)

Designed For Use With:

  • Wingtra

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About MicaSense RedEdge-P

While setting a new benchmark for data quality and repeatability, the RedEdge-P Dual Multispectral Sensor Kit is engineered with precision optics and industrial-grade image sensors. It features narrowband, scientific-grade filters and undergoes a stringent factory calibration process, ensuring it delivers high-quality, calibrated, and rugged outputs. This advanced sensor kit is the ultimate solution for capturing high-resolution RGB and multispectral data.

The RedEdge-P boasts increased storage capabilities with its adoption of the CFexpress removable storage standard, allowing for over two captures per second. This feature facilitates quick data turnaround between flights by simply swapping cards. The sensor's synchronized capture capability enables simultaneous acquisition of up to six bands, producing multiple high-resolution outputs, including RGB, crop vigor indices (such as NDVI and NDRE), and high-resolution panchromatic images.

With twice the spatial resolution of its predecessor, the RedEdge, this sensor kit offers a high-resolution panchromatic imager that delivers superior RGB and multispectral outputs, achieving 2cm resolution when flying at 60 meters. This enhanced resolution allows users to detect smaller issues or features earlier, supporting more informed management decisions across various applications.

The RedEdge-P is designed to integrate seamlessly with existing equipment, compatible with a wide range of drones, from large fixed wings to small multirotors. It supports industry-standard tools for flight planning and data processing, ensuring ease of use and flexibility. Its rugged design, with an IP4X rating, provides dust and splash protection, making it a reliable choice in challenging environments.

As the industry standard multispectral sensor, the RedEdge-P offers comprehensive insights into crop health. Its high-resolution imagery supports plant counting algorithms, even at early growth stages, by combining a panchromatic lens with five high-resolution multispectral lenses. The sensor's ability to capture the critical red edge band (712-722 nm) allows for early disease identification, enabling faster intervention to prevent spread.

For phenotyping, the RedEdge-P's band combination facilitates high-resolution multispectral outputs, detecting variability at the leaf level. It also aids in species differentiation, including weeds, by highlighting characteristics such as chlorophyll content, vigor, and leaf size. The sensor's high-resolution outputs enable plant health mapping, generating indices and composites to monitor individual chlorophyll levels over time.

Advanced crop scouting is made possible with the RedEdge-P's high-resolution multispectral and RGB imagery, allowing for accurate, geotagged data collection in a single flight. This capability simplifies the assessment of field conditions and informs appropriate interventions. The sensor also supports fertilizer management by identifying nutrient-deficient areas and monitoring the effects of fertilizer applications throughout the season.

The RedEdge-P's 5.1-megapixel panchromatic band delivers over twice the ground resolution of the industry-standard RedEdge-MX, resulting in 3D point clouds with up to four times the point density. Its calibrated multispectral imagery is enhanced by the CRP 2, a compact version of the Calibrated Reflectance Panel, and the DLS 2, a next-generation light sensor that improves radiometric accuracy and reduces the need for post-processing.

With the same narrow bands at twice the resolution, the RedEdge-P offers a seamless way to capture standard spectral bands with enhanced spatial resolution. Micasense's focus on data accuracy and repeatability ensures that users can rely on the precision and reliability of the data collected with the RedEdge-P Dual Multispectral Sensor Kit.

MicaSense RedEdge-P Features

  • High-resolution panchromatic band for pan-sharpened output
  • Resolutions of 2cm 0.8" at (60m)
  • Five spectral bands for multiple vegetation indices and composites
  • New professional removable storage standard in CFexpress, enabling up to three captures per second for faster flight speeds, cutting down on time required to map an area
  • Electrical and mechanical interfaces compatible with existing RedEdge installations with just a connector upgrade

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture precise data with this multispectral sensor, perfect for environmental monitoring.
  • Achieve high-resolution imagery with the 5.1 MP RGB output, aligned for accurate analysis.
  • Utilize the calibrated reflectance panel for consistent, reliable data in every drone flight.
  • Enhance your drone imagery with multiple spectral bands, from coastal blue to near-IR.
  • Ensure stable image capture with advanced gimbal compatibility for clear aerial shots.
  • Expand your drone's capabilities with versatile integration cables & mounting hardware included.

What's in the box:

  • RedEdge-P Multispectral Sensor (Red)
  • RedEdge-P Multispectral Sensor (Blue)
  • DLS Light Sensor
  • Calibrated Reflectance Panel (CRP)
  • USB Wi-Fi Dongle
  • Lens Cover
  • Integration Cables
  • Mounting Hardware
  • CFexpress Card
  • CFexpress Card Reader
  • Hard Carrying Case
  • User Manual
  • MicaSense 1 Year Limited Warranty
