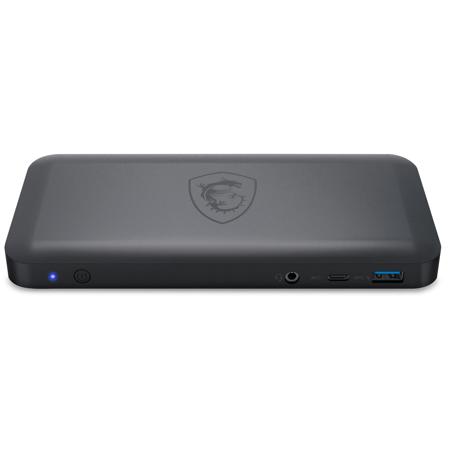

MSI USB Type-C Multi-Port Docking Station
See all MSI items

MSI USB Type-C Multi-Port Docking Station

SKU: MSI1P131E001

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

CHRIS A : Has anyone used this with three monitors? My 3rd monitor looks like a 1990's display even though it is a only a couple years old.
Shopper : Does this support Thunderbolt 3?
Shopper : Why Did You Choose This?bruno C : i have a laptop msiGarrett P : same brand as computerTHOMAS L : Getting company laptop and I needed the extra portsKHAWAJA G : I want to use it for MSI laptop GE75. I hope it is compatible.LUIS Z : Seen on MSI website. Adorama is the only website to have available. This will pair nicely with my MSI laptop.CONRAD S : This unit will be used in an office environment so in order to maximize the potential of my laptop it will be used for expansion and to free up ports on computer.SHEILA A : for MSI laptopGREG M : need more

Reviews about this item

Review Summary

2021-12-07T08:54:14

Rated 3 out of 5

It has a mind of it's own

5 stars when it works properly, I have to disconnect and reconnect frequently. Might of gotten a faulty one.

JOSUE H.

2021-02-28T21:38:05

Rated 2 out of 5

MSI dock doesn’t work with MSI Laptop

Hooked it to an MSI laptop and it did not reall work. It wasn’t supporting multiple monitors. No clue what the issue is with it. Instructions for use are lacking.

THOMAS L.

2021-02-11T06:13:34

Rated 5 out of 5

Good Purchase

Works well could use a few more USB 3.0 Ports.

CONRAD S.

2020-07-15T12:01:42

Rated 4 out of 5

Great product if worked as described

The docking station works for the triple monitor setup that I was hoping for. Unfortunately the rear USB ports and the front audio port do not work. The Front USB port works fine. I even upgraded the firmware per the MSI website instruction but no change in behavior. I am working with MSI to get an RMA but so far I am still working the issue. I hope it is a hardware issue because it is the right solution for me otherwise.

GREG S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

MSI Docking Station Specifications

  • USB

    1x USB 3.1 Gen 2 Type-C (85W)
    3x USB 3.1 Gen 2 Type-A

  • Thunderbolt

    None

  • Ethernet

    1x RJ45 (10/100/1000 Mb/s)

  • FireWire

    None

  • Display

    1x HDMI
    2x DisplayPort

  • Audio

    1x 1/8"/3.5mm Headphone/Microphone Combo

  • Memory Card Slots

    None

  • System Connection

    1x USB 3.1 Gen 2 Type-C Male

  • Number of Displays Supported

    3

  • Maximum Resolution Supported

    3840 x 2160 at 60Hz

  • Data Transfer Rate

    10 Gb/s USB 3.1 Gen 2

  • UASP Support

    Yes

  • Power Source

    AC Adapter

  • Power Port

    USB Type-C

  • Maximum Power Consumption

    135W (AC Adapter)

  • Lock Slot

    No

  • Dimensions

    7.48 x 3.35 x 1.06" (19.00 x 8.51 x 2.69cm)

  • Weight

    0.51 lbs (0.23kg)

  • UPC Code

    824142192955

About MSI Docking Station

FEATURED REVIEWS

Good Purchase

By CONRAD S.

Works well could use a few more USB 3.0 Ports.

MSI Multi-Port Docking Station Gives you a plethora of connectors across the latest interface types, all with the convenience of a single USB C connector to your PC. This eliminates the need for various adapters and also makes it a breeze to unhook your laptop and go mobile.

Connection to PC:
1x USB 3.2 Gen 2 Type-C

Interfaces:
1x USB 3.1 Gen 2 Type-C (85W)
3x USB 3.1 Gen 2 Type-A
1x RJ45 (10/100/1000 Mb/s)
1x HDMI
2x DisplayPort
1x 1/8"/3.5mm Headphone/Microphone Combo

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • MSI USB Type-C Multi-Port Docking Station
  • 135W Adapter
  • MSI 1 Year Limited Warranty
