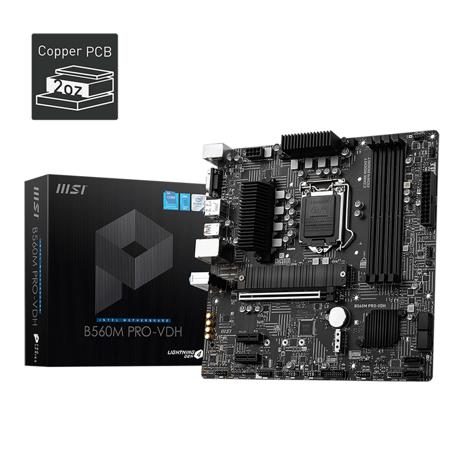

MSI B560M PRO-VDH LGA 1200 SATA 6Gb/s mATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Business Elegance

Core Boost
With premium layout and digital power design to support more cores and provide better performance.

2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience.

DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.

Lightning Gen 4 Solution
The latest Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.

MSI M.2 Auto Switch
The Gen 4 M.2 featured dedicated switch that automatically synchronizes to either 11th or 10th Gen processor.

PCI-E Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

User Friendly Design
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

Cooling

M.2 Shield FROZR
World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI Cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Fully Controllable In Bios And Software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Optimized for Water Cooling
Designed to support the most popular All-In-One & customized water cooling solutions on the market, a dedicated water pump PIN header gives you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.

Design

EZ Debug LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

Compatibility

• 11th Gen Core Processors Support
• Extreme Stability & Compatibility Testing for Memory
• Windows 10 Certified

Reliable Components

Fortify Your System with PCI-E Steel Armor
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Ultimate Motherboard Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Connectivity
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

LAN

High-Bandwidth and Low-Latency Network
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Optimize Network for Lower Latency!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI LAN Manager
• Allows you to change applications' traffic priority
• Allows you to customize bandwidth for each application

Lightning Gen 4

Fast and Future-Ready Storage
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

Lightning Gen 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

Lightning Gen 4 M.2
Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

Optane: Boost Your HDD to Perform Like an SSD
PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

MSI M.2 Auto Switch
MSI motherboard features dedicated switches that allows the first M.2 connector automatically synchronizes to either 11th or 10th Gen Intel Core processors for the maximum compatibility.

USB
Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.

Other Expansion

Extend Your RGB Experience With Ease
Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Experience More
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

Performance

A Huge Step of DDR Performance
MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

Core Boost
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Audio

Dedicated High Definition Audio Processor
Make sure you enjoy the purest sound quality in both stereo and surround sound.

High Quality Audio Capacitors
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HD Audio Connectors
Keep you sound perfect by transmit your audio with pure digital signal.

Isolated Audio Design
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

Separated Audio Layers for Clean Left & Right Channels
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

DE-POP Protection
Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

BIOS & Software

Click BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

Creator Genie
Quickly overclock your CPU with a single button for more performance.

XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.

M-Flash
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

Hardware Monitor
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

Memory Try It
Get extreme speed out of your system memory and get more performance.

Search & Favorites
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

MSI Center
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

True Color
Optimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.

Live Update
Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your work.

User Scenario
One click for setting your computer, even customize own profile as your preference.
