MSI MPG B650 CARBON Wi-Fi Specifications

  • CPU

    Supports AMD Ryzen 7000 Series Desktop Processor
    Processor socket AM5

  • Chipset

    AMD B650 Chipset

  • Memory

    4x DDR5 memory slots, supporting up to 128GB
    Supports 4 DIMMs, Dual Channel DDR5-5300+ (OC)
    Supports Dual channel memory architecture
    Supports non-ECC, un-buffered memory
    Supports ECC UDIMM memory (non-ECC mode)

  • Expansion Slots

    2x PCIe x16 slots (From CPU)
    Supports x16/x0, x8x8
    PCI_E1 slot
    Supports up to PCIe 4.0 x16
    PCI_E2 slot
    Supports up to PCIe 4.0 x16

    1x PCIe x1 slot (From B650 chipset)
    PCI_E3 slot
    Supports up to PCIe 3.0 x1

  • Onboard Graphics

    1x HDMI 2.1 port, supporting a maximum resolution of 4K 60Hz
    1x DisplayPort 1.4 port, supporting a maximum resolution of 8K 60Hz

  • SATA Ports

    6x SATA 6Gb/s ports
    SATA_1_2 & SATA_3_4 (From B650 chipset)
    SATA_A1_A2 (From ASM1061)

  • M.2 SSD Slots

    4x M.2 slots (Key M)
    M2_1 slot (From CPU):
    Supports up to PCIe 5.0 x4
    Supports 2260/ 2280 storage devices

    M2_2 & M2_3 slots (From CPU):
    Supports up to PCIe 4.0 x4
    Supports 2280 storage devices

    M2_4 slot (From B650 chipset)
    Supports up to PCIe 4.0 x4
    Supports 2280/ 22110 storage devices

  • RAID

    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

  • Audio

    Realtek ALC4080 Codec:
    7.1-Channel High Definition Audio
    Supports S/PDIF output

  • LAN

    1x Realtek RTL8125 2.5Gbps LAN controller

  • Wi-Fi & Bluetooth

    AMD Wi-Fi RZ616:
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/5GHz or 6GHz bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth 5.2

  • Power Connectors

    1x 24-pin ATX main power connector
    2x 8-pin ATX 12V power connectors

  • Internal USB Connectors

    1x USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset)
    2x USB 3.2 Gen 1 5Gbps connector (From B650 chipset)
    Supports additional 4 USB 3.2 Gen 1 5Gbps ports
    2x USB 2.0 Type-A connectors (From B650 chipset)
    Supports additional 4 USB 2.0 ports

  • Fan Connectors

    1x 4-pin CPU fan connector
    1x 4-pin water-pump fan connector
    5x 4-pin system fan connectors

  • System Connectors

    1x Front panel audio connector
    2x System panel connectors
    1x Chassis Intrusion connector
    1x 3-pin Water Flow connector
    1x 2-pin Thermal sensor connector
    1x TPM module connector
    1x Tuning Controller connector

  • Jumpers

    1x Clear CMOS jumper
    1x OC force enter BIOS jumper (Supports lower PCIe mode)

  • LED Features

    1x EZ LED Control switch
    1x 4-pin RGB LED connector
    3x 3-pin ARGB Gen2 LED connectors
    4x EZ Debug LED

  • Back Panel Connectors

    1x Clear CMOS button
    1x Flash BIOS Button
    1x DisplayPort
    1x HDMI port
    1x 2.5Gbps LAN (RJ45) port
    2x USB 2.0 Type-A ports (From B650 chipset)
    3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
    4x USB 3.2 Gen 2 10Gbps Type-A ports (From B650chipset)
    1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650chipset)
    2x Wi-Fi Antenna connectors
    5x audio jacks
    1x Optical S/PDIF Out connector

  • I/O Controller

    NUVOTON NCT6687-R Controller Chip

  • Hardware Monitor

    CPU/ System/ Chipset temperature detection
    CPU/ System/ Pump fan speed detection
    CPU/ System/ Pump fan speed control

  • Form Factor

    ATX Form Factor
    12 x 9.6" (30.5 x 24.4cm)

  • BIOS Features

    1x 256 Mb flash
    UEFI AMI BIOS
    ACPI 6.4, SMBIOS 3.4
    Multi-language

  • Software

    Drivers
    MSI Center
    AMD Extreme Tuning Utility
    CPU-Z MSI GAMING
    Norton 360 for Gamers
    AIDA64 Extreme - MSI Edition

  • UPC Code

    824142301067

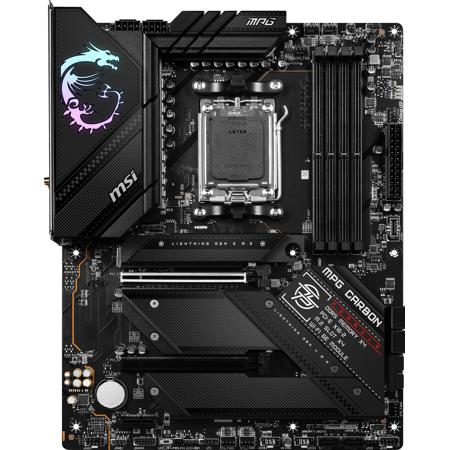

About MSI MPG B650 CARBON Wi-Fi

Are you ready to elevate your gaming experience? Introducing the MPG B650 CARBON Wi-Fi DDR5 AM5 SATA 6Gb/s ATX Gaming Motherboard, a high-performance, advanced, and efficient piece of technology designed to redefine your gaming sessions. This motherboard, crafted by the reputable MSI, is a testament to the brand's commitment to delivering reliable and durable products that stand the test of time.

The MPG B650 CARBON is more than just a motherboard; it's a statement of style and performance. Its unique design and bold attitude reflect the spirit of the gaming world, setting new standards in gaming fashion.

This motherboard is equipped with an extended heatsink that enlarges the surface area for heat dissipation, ensuring even high-end processors run at full speed without overheating. The M.2 Shield Frozr keeps your M.2 SSDs safe while preventing throttling, allowing them to run faster and more efficiently.

The motherboard also features a 7W/mK thermal pad and additional choke thermal pads, ensuring all cores run at high performance. The enhanced M.2 thermal design includes a double-sided M.2 Shield Frozr and an enlarged heatsink, ensuring your PCIe 5.0 M.2 SSDs are safe and perform at their best.

The MPG B650 CARBON is optimized for water cooling, supporting the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed.

The motherboard also offers full fan control, allowing you to manage speeds and temperatures for all your system and CPU fans. The Frozr AI Cooling feature detects CPU & GPU temperatures and automatically adjusts fan duty of system fans to a proper value, ensuring your system stays silent and efficient.

The motherboard's power solution includes a 16+2+1 Duet Rail Power System, designed to unleash and sustain maximum performance. The motherboard also features double power connectors, a fully digital power design, and a premium layout that supports multi-core CPUs and creates perfect conditions for CPU overclocking.

The MPG B650 CARBON is also DIY friendly, featuring a screwless M.2 design and an EZ M.2 Clip for easy and effortless M.2 SSD installation. It also comes with a pre-installed I/O Shield for easy and safe installation.

The motherboard supports the latest DDR5 memory with an SMT Slot, offering a huge step in DDR performance enhancement. It also supports all the latest storage standards, allowing you to connect any ultra-fast storage device for faster game starts and level loads.

The MPG B650 CARBON is Windows 11 Certified, ensuring great compatibility and a worry-free user experience. It also features a Click Bios 5 for easy fine-tuning of the motherboard for gaming performance, efficiency, or overclocking world records.

In conclusion, the MPG B650 CARBON Wi-Fi DDR5 AM5 SATA 6Gb/s ATX Gaming Motherboard is a high-performance, advanced, and efficient motherboard designed to redefine your gaming experience. Its unique design and bold attitude reflect the spirit of the gaming world, setting new standards in gaming fashion.

MSI MPG B650 CARBON Wi-Fi Features

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 6600+(OC) MHz
  • Enhanced Power Design: 16+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink with Heat-Pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Pre-installed I/O Shield, Steel Armor
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Key Features

  • Advanced cooling features including extended heatsink and M.2 Shield Frozr for optimal performance
  • Efficient 16+2+1 Duet Rail Power System for sustained high-end performance
  • Reliable DIY-friendly design with screwless M.2 and EZ M.2 Clip for easy installation
  • Windows 11 Certified for a worry-free user experience with the latest operating system

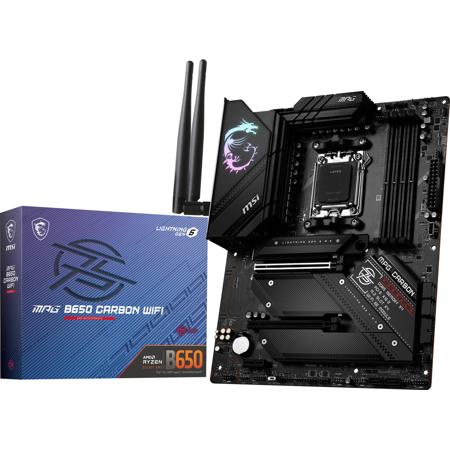

What's in the box:

  • MSI MPG B650 CARBON Wi-Fi DDR5 AM5 SATA 6Gb/s ATX Gaming Motherboard
  • Wi-Fi Antenna
  • 2x SATA Cables
  • Cable Stickers
  • EZ M.2 Clip
  • Quick Installation Guide
  • MSI 3 Year Limited Warranty
