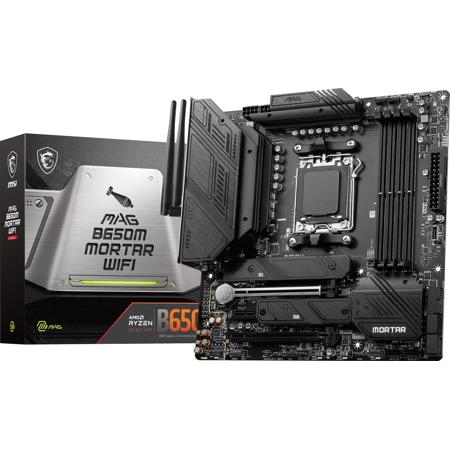

MSI MAG B650M MORTAR Wi-Fi DDR5 AM5 SATA 6Gb/s Micro-ATX Motherboard

MAG unite as one
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Exclusive Feature
• Core Boost Technology
• Digital PWM
• 6 Layer PCB with 2oz Thickened Copper
• Steel Armor

Premium Thermal Solution
• Extended Heatsink
• Pump Fan Support
• M.2 Shield Frozr
• Heatsink with 7W/mK Thermal Pad

High-Speed Transmission Connectivity
2.5G Network Solution
• Memory Boost
• Wi-Fi 6E
• Lightning Gen 4

Hardware

Cooling

Fully Fan Control

Control In One Click
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

Frozr AI Cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Auto Detect Your Fan
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Optimized For Water Cooling
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked f keep-out-zonef allows for easy and safe installation and a perfect fit.

Power Solution

12+2+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

Digital Power Design
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

Double Power Connectors
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

Core Boost
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

Optimized PCB Solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

1-Second Overclocking!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

Load-Line Calibration
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

Overvoltage Protection
Prevents potential short-circuit damage to the CPU and other critical components.

Performance

Expansion

Lightning Gen 4 PCI-E With Steel Armor
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Fast And Future-Ready Storage
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Double Bandwidth With Lightning USB 3.2 Gen 2X2 20G
Using USB 3.2 devices has never been faster! MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

USB Front Type-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Memory

Latest DDR5 Memory With SMT Slot
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B650M MORTAR WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

Easy Overclocking With EXPO Profile
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

BIOS & Software

Click BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

EXPO (Extended Profiles For Overclocking)
Choose from a preset EXPO profile and automatically overclock compatible DDR memory.

Game Boost
Quickly overclock your CPU with a single button for more performance.

M-Flash
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

Hardware Monitor
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

Memory Try It
Get extreme speed out of your system memory and get more performance.

Search & Favorites
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

MSI Center
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

True Color
Optimized monitorf s brightness and color in several modes for different situation, you can also customize by yourself.

User Scenario
One click for setting your computer, even customize own profile as your preference.

Hardware Monitoring
Get immediate access to your critical hardware information in real-time.

Profile Setting
Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.

Fan Center
Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.

System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.

Exclusive UI Of AIDA64 Extreme
MSI motherboards provide 60 days free trail of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

Resizable BAR
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

Connectivity

Audio Boost 5
• High Performance ALC4080 Audio Processor
• High Quality Audio Capacitors
• High Quality Audio Jacks With S/PDIF
• Isolated Audio Signal
• DE-POP Protection

Mystic Light

Extend Your RGB Experience With Ease
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Networking

High-Bandwidth And Low-Latency Network
MSI's premium network solution provides incredible data transfer speed for demanding users.
