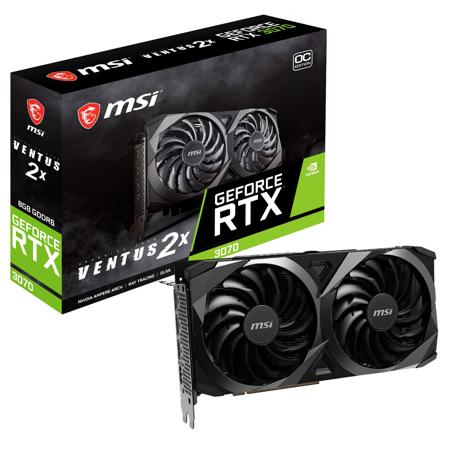

MSI GeForce RTX 3070 Ventus 2X OC 8GB GDDR6 Graphics Card, 3x DisplayPort, 1x HDMI

SKU: MSIG3070V2XC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

MSI RTX 3070 Ventus 2X OC Specifications

  • Graphics Processing Unit

    NVIDIA GeForce RTX 3070

  • Interface

    PCI Express Gen 4

  • Cores

    5888 Units

  • Memory Speed

    14 Gbps

  • Memory

    8GB GDDR6

  • Memory Bus

    256-bit

  • Output

    DisplayPort x 3 (v1.4a) / HDMI 2.1 x 1

  • HDCP Support

    Yes

  • Power Consumption

    220 W

  • Power Connectors

    8-pin x 2

  • Recommended PSU

    650 W

  • Directx Version Support

    12 API

  • Opengl Version Support

    4.6

  • Maximum Displays

    4

  • VR Ready

    Yes

  • G-SYNC Technology

    Yes

  • Adaptive Vertical Sync

    Yes

  • Digital Maximum Resolution

    7680x4320

  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

  • Dimensions

    9.13 x 4.88 x 2.05" (232 x 124 x 52mm)

  • Weight

    44.27 oz (1255g)

  • UPC Code

    824142229132

About MSI RTX 3070 Ventus 2X OC

GeForce RTX 3070 VENTUS 2X OC
The GeForce RTX 3070 is powered by Ampere-NVIDIA's 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games.

Ventus 2X
Take the Essentials

VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

NVIDIA Ampere Architecture

• 2nd Generation
• RT Cores
• 2x Throughput

• 3rd Generation
• Tensor Cores
• Up To 2x Throughput

• New
• SM
• 2x FP32 Throughput

GeForce RTX 30 Series

The Ultimate Play
GeForce RTX 30 Series GPUs deliver the ultimate performance for gamers and creators. They're powered by Ampere - NVIDIA's 2nd gen RTX architecture - with new RT Cores, Tensor Cores, and streaming multiprocessors for the most realistic ray-traced graphics and cutting-edge AI features.

DLSS AI Acceleration
Max Fps. Max Quality. Powered by AI

NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.

Reinforcing Backplate
A clean-looking brushed-finish backplate reinforces the length of the card.

Cutting Edge Dual Fan Thermal

Torx Fan 3.0
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning. Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.

• 50% More Air pressure than normal fan
• 15% More Air pressure than Torx Fan 2.0

Chillingly Silent
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.

Core Pipe
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.

Thermal Padding
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.

Traces of Brilliance

Tailored PCB Design
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.

We Made 10 Million Clicks, You Only Need 1

Bringing It All Together
MSI's exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.

MSI RTX 3070 Ventus 2X OC Features

  • 8GB GDDR6 | DisplayPort x 3 / HDMI x 1
  • TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance
  • Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink
  • Supports multi-GPU setups
  • OC Scanner: An automated function finds the highest stable overclock settings
  • On Screen Display: Provides real-time information of your system's performance
  • Predator: In-game video recording
  • Dragon Center: MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time

Key Features

  • 8GB GDDR6 | DisplayPort x 3 / HDMI x 1
  • Supports multi-GPU setups
  • OC Scanner: An automated function finds the highest stable overclock settings
  • On Screen Display: Provides real-time information of your system's performance
  • Predator: In-game video recording

What's in the box:

  • GeForce RTX 3070 Ventus 2X OC 8GB GDDR6 Graphics Card
  • Quick Start Guide
  • MSI 3 Year Limited Warranty
