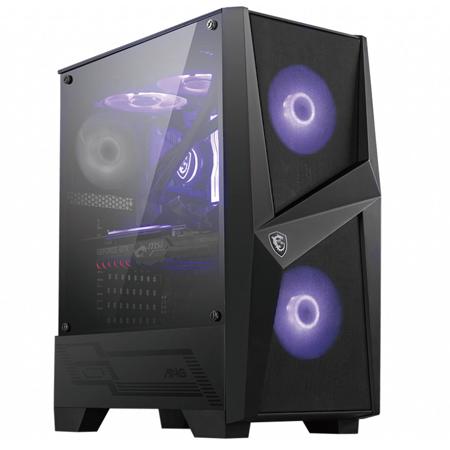

MSI MAG Forge 100M Gaming Computer Case

SKU: MSIMAGFO100M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

MSI MAG Forge 100M Specifications

  • Support MB Form Factor

    ATX / mATX / Mini-ITX

  • Product Name

    MAG Forge 100M

  • Case Form Factor

    Mid-Tower

  • I/O Ports

    2x USB 3.2 Gen1 Type-A / 1x HD Audio / 1x Mic

  • Driver Bays

    2x 3.5" (compatible with 2.5") + 3x 2.5"

  • Case Expansion Slots

    7

  • Pre-Install Fan

    Front: 2x 120mm RGB LED Fan included
    Rear: 1x 120mm System Fan included

  • Radiator Layout

    Front: Up to 240mm
    Top: Up to 240mm
    Rear: Up to 120mm

  • Maximum GPU Length

    330mm

  • Maximum CPU Cooler Length

    160mm

  • Power Supply

    Standard ATX 160 mm, max to 200 mm (without 3.5" HDD case installed)

  • Cooling Layout

    Front: Up to 3x 120mm / 2x 140mm
    Top: Up to 2x 120mm / 2x 140mm
    Rear: Up to 1x 120mm

  • Dimensions (D x W x H)

    17.05 x 8.27 x 19.65" (421 x 210 x 499mm)

  • Weight

    12.43 lbs (5.64kg)

  • UPC Code

    824142198834

About MSI MAG Forge 100M

Optimized Air Flow
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

Ready For Optimized Motherboard
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

Support: ATX / Micro ATX / Mini-ITX

Built For A Prime Fan And Radiator Capacity

Cooling Layout
Front: Up to 3 x 120 mm or 2 x 140 mm
Top: Up to 2 x 120 mm or 2 x 140 mm
Rear: 1 x 120 mm

Radiator Layout
Top - support 120 / 240 mm radiator
Pront - support 120 / 240 mm radiator
Rear - support 120 radiator

Pre-Install Fan
Front: 2 x 120 mm RGB LED Fan included
Rear: 1 x 120mm System Fan included

Built For Optimized Case Structure

Tool-Less Tempered Glass
The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

The Forge 100 Series' thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

Personalize Your Gaming Rig

Ignite Your Gaming Rig

1 to 6 RGB LED Control Board
Bundled with a 1 to 6 RGB LED Control Board to help you have more attractive ways to decorate your gaming rig by add the LED strips.

LED Switch Button
User can intuitively control & switch 5 lighting effects through the LED switch button.

MSI MAG Forge 100M Features

  • MSI MAG Forge 100M chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A
  • Optimize Airflow
  • ARGB Fan included
  • 4mm Tempered Glasses
  • 330mm Radiator Support
  • 160mm CPU Cooler Support

Key Features

  • Optimize Airflow
  • ARGB Fan included
  • 4mm Tempered Glasses
  • 330mm Radiator Support
  • 160mm CPU Cooler Support

What's in the box:

  • MSI MAG Forge 100M Gaming Computer Case
  • MSI 2 Year Limited Warranty
