MSI PRO Z790-P Specifications

  • CPU

    Supports 12th/ 13th Gen Intel CoreTM Processors, Pentium Gold and Celeron Processors
    Processor socket LGA1700

  • Chipset

    Intel Z790 Chipset

  • Memory

    4x DDR4 memory slots, supporting up to 128GB
    Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR)

    Maxoverclocking frequency:
    1DPC 1R Max speed up to 5333+ MHz
    1DPC 2R Max speed up to 4800+ MHz
    2DPC 1R Max speed up to 4400+ MHz

    2DPC 2R Max speed up to 4000+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel Extreme Memory Profile (XMP)

  • Expansion Slots

    3x PCIe x16 slots
    PCI_E1 slot (From CPU)
    Supports up to PCIe 5.0 x16
    PCI_E3 & PCI_E4 slots (From Z790 chipset)
    PCI_E3 supports up to PCIe 4.0 x4
    PCI_E4 supports up to PCIe 3.0 x1
    PCIe x1 slot (From Z790 chipset)
    PCI_E2 supports up to PCIe 3.0 x1

  • Onboard Graphics

    HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
    DisplayPort 1.4 port with HBR3, supporting a maximum resolution of 4K 60Hz

  • SATA Ports

    6x SATA 6Gb/s ports (From Z790 chipset)

  • M.2 SSD Slots

    4x M.2 slots (Key M)
    M2_1 slot (From CPU)
    Supports up to PCIe 4.0 x4
    Supports 2242/ 2260/ 2280/ 22110 storage devices
    M2_2 slot (From Z790 chipset)
    Supports up to PCIe 4.0 x4
    Supports 2242/ 2260/ 2280 storage devices

  • M.2 SSD Slots (Contd.)

    M2_3 slot (From Z790 chipset)
    Supports up to PCIe 4.0 x4
    Supports SATA 6Gb/s
    Supports 2242/ 2260/ 2280 storage devices
    M2_4 slot (From Z790 chipset)
    Supports up to PCIe 4.0 x4
    Supports SATA 6Gb/s
    Supports 2242/ 2260/ 2280 storage devices

  • RAID

    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

  • Audio

    Realtek ALC4080 Codec:
    7.1-Channel High Definition Audio

  • LAN

    Intel 2.5Gbps LAN controller

  • Wi-Fi & Bluetooth

    Intel Wi-Fi 6E:
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth 5.2, FIPS, FISMA

  • Power Connectors

    24-pin ATX main power connector
    2x 8-pin ATX 12V power connectors

  • Internal USB Connectors

    USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)

    USB 3.2 Gen 1 5Gbps connector (From Z790 chipset)
    Supports additional 2 USB 3.2 Gen 1 5Gbps ports

    2x USB 2.0 Type-A connectors (From Hub-GL850G)
    Supports additional 4 USB 2.0 ports

  • Fan Connectors

    4-pin CPU fan connector
    4-pin water-pump fan connector
    6x 4-pin system fan connectors

  • System Connectors

    Front panel audio connector
    2x System panel connectors
    Chassis Intrusion connector
    TPM module connector
    Tuning controller connector
    TBT connector (Supports RTD3)

  • Jumpers

    Clear CMOS jumper

  • LED Features

    4x EZ Debug LED
    4-pin RGB LED connector
    2x 3-pin ARGB Gen2 LED connectors

  • Back Panel Connectors

    Flash BIOS button
    PS/2 port
    4x USB 2.0 Type-A ports (From Z790 chipset)
    DisplayPort
    HDMI port
    LAN (RJ45) jack
    2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset)
    USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset)
    USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)
    2x Wi-Fi Antenna connectors
    6x Audio jacks

  • I/O Controller

    NUVOTON NCT6687D-M Controller Chip

  • Hardware Monitor

    CPU/ System/ Chipset temperature detection
    CPU/ System/ Pump fan speed detection
    CPU/ System/ Pump fan speed control

  • Form Factor

    ATX Form Factor
    12 x 9.6" (30.5 x 24.4cm)

  • BIOS Features

    256 Mb flash
    UEFI AMI BIOS
    ACPI 6.4, SMBIOS 3.5
    Multi-language

  • Software

    Drivers
    MSI Center
    Intel Extreme Tuning Utility
    CPU-Z MSI GAMING
    NortonTM Internet Security Solution
    AIDA64

  • UPC Code

    824142301364

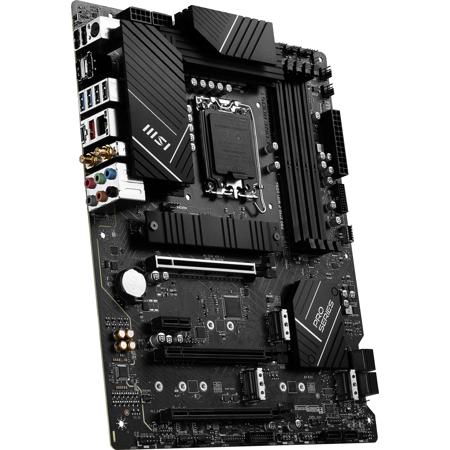

About MSI PRO Z790-P

Bring cutting-edge performance and stability to your desktop computing experience with the PRO Z790-P Wi-Fi DDR4 LGA 1700 SATA 6Gb/s ATX Motherboard from MSI. Engineered to support the latest 12th and 13th Gen Intel Core Processors, as well as Pentium Gold and Celeron Processors, this high-quality motherboard is a cornerstone for building a powerful PC.

Experience lightning-fast data transfer speeds with the inclusion of Lightning Gen5, the latest PCIe 5.0 solution, offering up to 128GB/s bandwidth to maximize transfer rates. With Wi-Fi 6E capability, this advanced motherboard embraces the 6GHz spectrum with MU-MIMO and BSS color technology, delivering wireless speeds up to an impressive 2400Mbps for efficient and seamless connectivity.

The PRO Z790-P Wi-Fi DDR4 Motherboard boasts a built-in USB 3.2 Gen 2x2 port, providing a 20Gbps transmission speed that is four times faster than USB 3.2 Gen 1, ensuring rapid data exchanges and device charging. The premium 2.5G LAN is designed to enhance your network experience, delivering reliable and high-speed internet connections.

MSI's commitment to durability and performance is evident in the extended PWM heatsink and enhanced circuit design, which guarantees that even high-end processors operate at full speed without compromise. The strengthened built-in M.2 thermal solution is meticulously crafted to protect your M.2 SSDs from throttling, allowing them to run at peak performance.

The innovative Frozr AI Cooling system intelligently detects CPU and GPU temperatures, automatically adjusting system fan speeds to maintain optimal cooling efficiency. This motherboard also comes packed with MSI Center features, including Gaming Mode, Smart Priority, and Mystic Light, among others, to customize and enhance your computing experience.

Thermal management is expertly handled with a heat-pipe design, extended heatsink design, and additional thermal pads, ensuring that your system remains cool under pressure. The motherboard also offers a plethora of performance features like Core Boost, Dual CPU Power, and Memory Boost, alongside an array of DIY-friendly options such as PCI-E Steel Armor and a pre-installed I/O Shield for ease of installation.

For audiophiles, the Audio Boost 5 technology ensures a high-fidelity sound experience, while RGB support with Mystic Light provides endless possibilities for personalizing your system's aesthetics. The Click BIOS 5 offers a user-friendly interface for system configuration, making it a reliable and versatile choice for both seasoned builders and newcomers to PC assembly.

In summary, the PRO Z790-P Wi-Fi DDR4 LGA 1700 SATA 6Gb/s ATX Motherboard is an efficient, reliable, and durable choice for anyone looking to build a high-performance desktop computer with advanced features and robust connectivity options.

MSI PRO Z790-P Features

  • PRO Z790-P Wi-Fi DDR4 Motherboard supports 12th and 13th Gen Intel Core Processors
  • Lightning Gen5 is the latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed
  • Wi-Fi 6E supports 6GHz spectrum MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps
  • Premium 2.5G LAN deliver better network experience

Key Features

  • Advanced Lightning Gen5 PCIe 5.0 solution for maximized data transfer speeds
  • Wi-Fi 6E capability with MU-MIMO and BSS color technology for fast and efficient connectivity
  • Integrated USB 3.2 Gen 2x2 port for rapid data exchanges and device charging
  • Enhanced thermal management with Frozr AI Cooling system and heat-pipe design
  • DIY-friendly features including PCI-E Steel Armor & pre-installed I/O Shield for easy installation

What's in the box:

  • MSI PRO Z790-P Wi-Fi DDR4 LGA 1700 SATA 6Gb/s ATX Motherboard
  • 3x M.2 Clips
  • Wi-Fi Antenna
  • 2x SATA Cables
  • I/O Shield
  • Driver DVD
  • European Union Regulatory Notice
  • Quick Installation Guide
  • MSI 3 Year Limited Warranty
