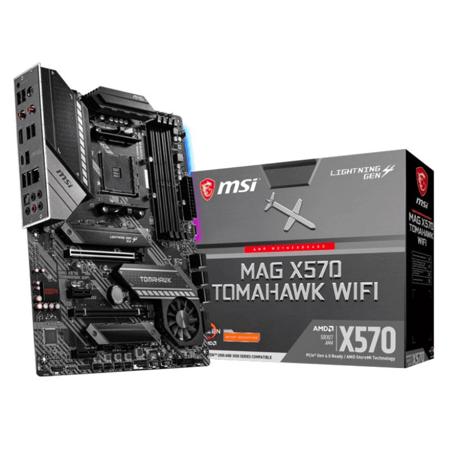

MSI MAG X570 TOMAHAWK Specifications

  • Socket

    AM4

  • CPU (Max Support)

    RYZEN 9

  • Chipset

    AMD X570 Chipset

  • Chipset

    AMD X570 Chipset

  • DDR4 Memory

    1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE

  • Memory Channel

    Dual

  • Dimm Slots

    4

  • Max Memory (GB)

    128

  • PCI-E X16

    2

  • PCI-E X1

    2

  • SATAIII

    6

  • M.2 Slot

    2

  • Raid

    0/1/10

  • Raid

    0/1/10

  • TPM (Header)

    1

  • LAN

    1x Realtek 8125B 2.5G LAN controller

  • LAN

    1x Realtek 8125B 2.5G LAN controller

  • USB 3.2 Ports (Front)

    1(Gen 2, Type C), 4(Gen 1, Type A)

  • USB 3.2 Ports (Rear)

    3(Gen 2, Type A), 1(Gen 2 Type C), 2(Gen 1, Type A)

  • USB 2.0 Ports (Front)

    4

  • USB 2.0 Ports (Rear)

    2

  • Audio Ports (Rear)

    5+ Optical S/PDIF (Realtek ALC1200 Codec)

  • HDMI

    1

  • Directx

    12

  • Form Factor

    ATX

  • Crossfire

    Y

  • Operating System

    Support for Windows 10 64-bit

  • Processor

    Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4

  • Memory

    4x DDR4 memory slots, support up to 128GB

    3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE

  • Memory (Contd.)

    2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE

    Dual channel memory architecture
    Supports non-ECC UDIMM memory
    Supports ECC UDIMM memory (non-ECC mode)
    Supports un-buffered memory

  • Expansion Slots

    1x PCIe 4.0/3.0 x16 slot (PCI_E1)
    3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
    2nd Gen AMD Ryzen support PCIe 3.0x16 mode
    Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
    1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
    2x PCIe 3.0 x1 slots

  • Onboard Graphics

    1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

  • Multi-GPU

    Supports 2-Way AMD CrossFire Technology

  • Wireless LAN & Bluetooth

    Intel Wi-Fi 6 AX200
    Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
    Supports Bluetooth 5.1
    The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

  • Storage

    6x SATA 6Gb/s ports (from AMD X570 Chipset)
    2x M.2 slots (Key M)

    M2_1 slot (from AMD Processor)
    Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
    Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)

  • Storage (Contd.)

    Supports 2242/ 2260/ 2280/ 22110 storage devices

    M2_2 slot (from AMD X570 Chipset)
    Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
    Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
    Supports SATA 6Gb/s
    Supports 2242/ 2260/ 2280 storage devices

  • USB

    AMD X570 Chipset:
    3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
    4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
    6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

  • USB (Contd.)

    AMD Processor:
    2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
    2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

  • Audio

    Realtek ALC1200 Codec:
    7.1-Channel High Definition Audio
    Supports Optical S/PDIF output

  • INTERNAL CONNECTORS

    1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    1x 4-pin ATX 12V power connector
    6x SATA 6Gb/s connectors
    2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
    1x USB 3.2 Gen 2 10Gbps Type-C Port
    1x 4-pin CPU fan connector
    1x 4-pin water-pump connector

  • Internal Connectors (Contd.)

    4x 4-pin system fan connectors
    1x Front panel audio connector
    2x System panel connectors
    1x TPM module connector
    1x Serial port connector
    1x Clear CMOS jumper
    1x Chassis Intrusion connector
    2x 4-pin RGB LED connectors
    2x 3-pin RAINBOW LED connectors
    4x EZ Debug LEDs

  • Back Panel Ports

    Keyboard / Mouse
    Wireless / Bluetooth
    USB 3.2 Gen 1 5Gbps Type A
    USB 3.2 Gen 2 10Gbps Type A
    2.5G LAN port
    Audio Connectors
    Flash BIOS button
    USB 2.0
    HDMI port
    USB 3.2 Gen 2 10Gbps Type C
    USB 3.2 Gen 2 10Gbps Type A
    Optical S/PDIF out

  • I/O Controller

    NUVOTON NCT6797 Controller Chip

  • Hardware Monitor

    CPU/ System/ Chipset temperature detection
    CPU/ System/ Chipset fan speed detection
    CPU/ System/ Chipset fan speed control

  • Bios Features

    1x 256 Mb flash
    UEFI AMI BIOS
    ACPI 6.1, SM BIOS 2.8
    Multi-language

  • Dimensions

    ATX Form Factor
    12 x 9.6" (30.5 x 24.4cm)

  • UPC Code

    824142212912

About MSI MAG X570 TOMAHAWK

FEATURED REVIEWS

Great mother board

By SEAN F.

Easy installation and setup with no issues.

Motherboard Impressions. Best One to date

By EDUARDO A.

Although I don't have my pc parts all together yet, this motherboard surprised me with the amount of stuff that can actually support it. i was surprised to see that it can support past 4000mhz ram, it has 2 m.2 ssd slots, and much more. I've gotta say, this is probably my favorite motherboard to date

Stable Cornerstone of Your System

Core Boost Technology
Combining 8+4 pin power connectors and premium layout design, ready for unleashing the maximum performance.

Digital PWM
Highest quality components digital power and DrMOS make sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Lightning Fast Transfer Speed

Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Excellent Network Solution
Onboard 2.5G LAN with LAN manager deliver the best online gaming experience.

DDR4 Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Next-Gen Thermal Solution

Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Zero Frozr Technology
AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situation.

Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

DIY Friendly
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

Cooling: Stay Cool and Sustain Performance
Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

Hardware: Troubleshooting Friendly Design
MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.

Compatibility: Troubleshooting Friendly Design
MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products.

BIOS and Software: Performance Enhancing Apps
Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.

Enhanced Performance
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.

CPU: High Power Efficiency
Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.

Memory: Unmatched Memory Performance
MSI takes memory stability and performance to the extreme. We've designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers.

Storage: Fast and Future-Ready Storage
Connect any ultra-fast storage device and get into the game sooner.

USB: Maximize Your USB Device Performance
Plug in and start moving files lightning fast with high-speed USB, supported by all the latest connectors and boost tools.

Exhilarating and Inspiring
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, gray and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

Mystic Light
Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life. Choose from millions of colors and sync across compatible devices.

In-Game Advantage
MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.

Connectivity: Dominate the Game with the Lowest Latency
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Built with high quality components, MSI GAMING LAN is tuned to deliver the best online gaming experience without lag.

Audio: Sound That Pulls You into the Game
Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.

Loyal Comrade
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Components: Built On Everlasting Quality
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

MSI MAG X570 TOMAHAWK Features

  • Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4600 MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
  • Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers
  • Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 Boost
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, LIVE UPDATE, AMBIENT LINK with user friendly user interface

Key Features

  • Supports DDR4 Memory, up to 4600 MHz

What's in the box:

  • MAG X570 TOMAHAWK Wi-Fi AM4 SATA 6Gb/s ATX Motherboard
  • 2x SATA Cables
  • Case Badge
  • 2x WiFi Antenna
  • User Manual
  • Quick Installation Guide
  • Product Registration Card
  • Driver DVD
  • MSI 3 Year Limited Warranty
