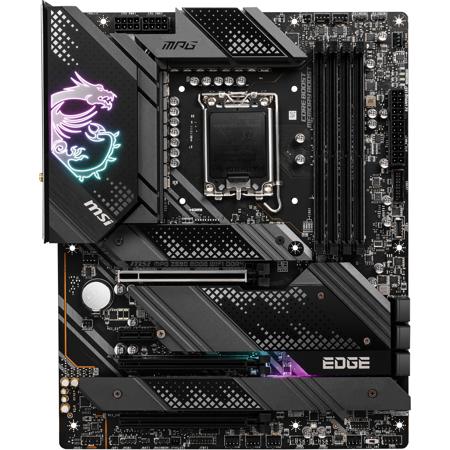

MSI MPG Z690 EDGE WIFI DDR4 LGA 1700 SATA 6Gb/s ATX Gaming Motherboard

Exclusive Feature

Core Boost Technology
Combining 2x 8-pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

Premium PCB Material
6 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Audio Boost 5
Isolated audio with high quality audio processor & amp for the most immersive gaming experience.

Direct 16+1+1 Power Design with Digital PWM
An aggressive digital VRM power design with digital PWM IC and direct 16 phases power system with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.

PCI-E Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Premium Thermal Design
Aluminum Cover with heatsink, heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support
Control watercooling pump speeds for best flow and noise control.

Enlarged Chipset Heatsink
Larger heatsink for chipset ensures better heat dissipation and cooling effects.

2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Intel Wi-Fi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Memory Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution
The latest Gen 5 PCI-E slot with up to 128GB/s bandwidth for maximum transfer speed.

Premium Hardware Design
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Cooling

M.2 Shield Frozr
World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

Frozr AI Cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Fully Controllable In BIOS And Software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 - Integrating With The System Environment
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Power Solution

Direct 16 + 1 +1 Phases Power Design
Unleash and sustain maximum performance with an aggressive VRM design built with a total of direct 16 +1+1 power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.

Core Boost
Core Boost technology combines MSI's premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

1-Second Overclocking!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

More For Performance

Load-Line Calibration
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

Overvoltage Protection
Prevents potential short-circuit damage to the CPU and other critical components.

Digitall Power Design
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking.

Double Power Connectors
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

DIY Friendly

EZ M.2 Clip
Have trouble turning screws MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

Pre-Installed I/O Shield
Featuring the Pre-installed I/O Shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

Keep Out Zone
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean, preventing any component contact or damage to the motherboard.

Avoid Collision Notification
Protective paint is printed around each screw hole to prevent parts from being scratched.

More User Friendly Enhancements

XL Clip
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

EZ Debug LED
Run into trouble Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ LED Control
A built-in LED button on the motherboard to control your light effect. Turn on/off your light in a second!

Protection

PCB Design
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 6 PCB layers
• IT-170 Server-grade PCB material
• 2 oz Thickened Copper

Fortify Your System With PCI-E Steel Armor
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Ultimate Motherboard Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Windows 11 Certified
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

Certified For Gaming
MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world's best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that's both powerful and reliable.

Enhanced Performance
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.

Memory

Extreme Stability & Compatibility Testing
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

A Huge Step Of DDR Performance
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z690 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

Easy Overclocking With XMP Profile
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

Lightning Speed

Lightning Gen 5 PCI-E

SMT PCIE 5.0 Slot
MSI motherboards adopted the advanced SMT(Surface Mount Technology) PCI-E slot to diminish interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

Lightning Gen 5 PCI-E
MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation.

Fast And Future-Ready Storage
MSI Z690 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

Optane: Boost Your HDD To Perform Like An SSD
PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.
