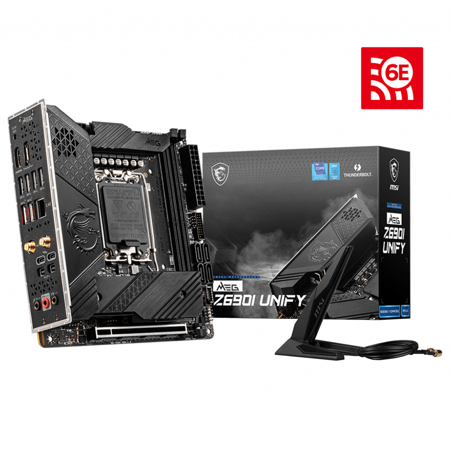

MSI MEG Z690I UNIFY LGA 1700 SATA 6Gb/s Mini ITX Intel Motherboard

MEG Z690I UNIFY. Outstanding Cooling Solution

Frozr Heatsink Design with Zero Frozr Technology
The active cooling solution is ready to release the maximum performance.

Aluminum Cover with 7W/mK Thermal Pad
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.

Heat-pipe Design
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

Aluminum Backplate
The aluminum baseplate cools down your Mosfet with dedicated thermal pad.

M.2 Shield Frozr
Onboard M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

Premium Hardware Design
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Frozr Heatsink Design
MEG Z690I UNIFY features active cooling solution for the enthusiast gamers and prosumers. The Double Ball Bearing Design, Zero Frozr Technology and dedicated software functions enhance the user experience and provide the extreme performance.

Cooling

Frozr Ai Cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI Engine.

Fully Controllable In Bios And Software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Optimized For Water Cooling
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.

Power Solution

Structure - Direct 10+1+1 Phases Power Design
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 10+1+1 digital power phases. Combining 105A Smart Power Stage and Core Boost technology, MEG Z690I UNIFY is ready for the challenge of high-end processors.

Core Boost
Core Boost technology combines MSI's premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Game Boost - 1-Second Overclocking!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

Load-Line Calibration
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

Overvoltage Protection
Prevents potential short-circuit damage to the CPU and other critical components.

Digital Power Design
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking.

DIY Friendly

Pre-Installed Io Shield
Featuring the pre-installed IO shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

Enhancements

XL Clip
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

EZ Debug LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ Front Panel Cable
This cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately.

Protection

Direct 10+1+1 Phases Power Design
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 10+1+1 digital power phases. Combining 105A Smart Power Stage and Core Boost technology, MEG Z690I UNIFY is ready for the challenge of high-end processors.

PCB Design
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

12 PCB layers
IT-170 Server-grade PCB material

Steel Armor - Fortify Your System with PCI-E Steel Armor
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Double ESD Protection - Ultimate Motherboard Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Certification - Super Stable Gaming with The Highest Quality Components
MSI uses high quality components rated for reliable operation even under extreme conditions.

Titanium Choke III
Ti choke III has 30% improved power delivery efficiency compared to its predecessor, allowing for improved overclocking stability

105A Smart Power Stage
Next-gen 3-in-1 Mosfet package capable of delivering more power at precise timings with fewer components.

Solid Cap
Japanese made Solid CAPs are built for high-reliability motherboards with their aluminum core design. These capacitors have low Equivalent Series Resistance (ESR) and are rated to work for more than 10-years.

Windows 11 Certified
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

Certified For Gaming
MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world's best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that's both powerful and reliable.

Enhanced Performance
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.

Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 ACE is ready to deliver the world class memory performance.

Memory Support Stand
The aluminum backplate cools down your motherboard, while the dedicated sunken design strengthens the memory slot area to prevent PCB bending and to protect surrounding components.

SMT DDR5 Memory Slot
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

Memory Boost - Extreme Stability & Compatibility Testing
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

XMP 3.0 - Easy Overclocking with XMP Profile
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

Memory Force - Easy Tuning Your DDR5 Memory
MSI MEG series motherboards feature exclusive Memory Force function which shows the current state of DDR5 memory. This patent-pending feature simplifies the complicated training flow to an easy graphic that helps you determine the direction of overclocking without the redundant reboot and testing process.

Connectivity
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

Intel 2.5g Lan - High-Bandwidth And Low-Latency Network
2.5Gbps LAN with LAN manager provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience.

Wi-Fi 6E - Surfacing With The Real Mu-Mimo Technology
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

LAN Manager - Optimize Online Gaming Traffic For Lower Latency
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
