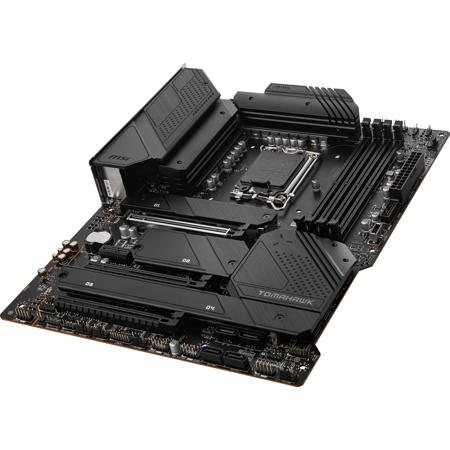

MSI MAG Z690 TOMAHAWK Wi-Fi LGA 1700 SATA 6Gb/s ATX Motherboard
See all MSI items

MSI MAG Z690 TOMAHAWK Wi-Fi LGA 1700 SATA 6Gb/s ATX Motherboard

SKU: MSIZ690TOMWI

This item is no longer available.

Recommended Alternatives

MSI MAG B550 TOMAHAWK MAX: Picture 1 regular
MSI MAG B550 TOMAHAWK MAX Wi-Fi AM4 SATA 6Gb/s ATX Gaming Motherboard
$219.99
MSI MPG B650I EDGE Wi-Fi: Picture 1 regular
MSI MPG B650I EDGE Wi-Fi DDR5 AM5 SATA 6Gb/s Mini-ITX Gaming Motherboard
$324.99
MSI PRO B650-P Wi-Fi: Picture 1 regular
MSI PRO B650-P Wi-Fi DDR5 AM5 SATA 6Gb/s ATX Gaming Motherboard
$219.99
MSI Z690-P DDR4: Picture 1 regular
MSI PRO Z690-P DDR4 LGA 1700 SATA 6Gb/s ATX Motherboard
$169.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

MSI MAG Z690 TOMAHAWK Wi-Fi Specifications

  • CPU (Max Support)

    i9

  • Socket

    1700

  • Chipset

    Intel Z690 Chipset

  • DDR5 Memory

    6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz

  • Memory Channel

    Dual

  • DIMM Slots

    4

  • Max Memory (GB)

    128

  • PCI-E X16

    3

  • PCI-E X1

    1

  • SATAIII

    6

  • M.2 Slot

    5

  • LAN

    1x Intel I225-V 2.5G LAN

  • Wi-Fi & Bluetooth

    Intel Wi-Fi 6E module

  • USB 3.2 Ports

    Front: 1(Gen 2, Type C), 2(Gen 1, Type A)
    Rear: 1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)

  • USB 2.0 Ports

    Front: 4
    Rear: 2

  • Audio Ports (Rear)

    5+ Optical S/PDIF (Realtek ALC4080 Codec)

  • Displayport

    1

  • HDMI

    1

  • Directx

    12

  • Form Factor

    ATX

  • Crossfire

    Yes

  • Operating System

    Support for Windows 11 64-bit, Windows 10 64-bit

  • Processor

    Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Processor socket LGA1700

  • Memory

    4 x DDR4 memory slots, support up to 128GB
    Supports Supports 1R 4800 MHz (by JEDEC & POR)
    Max. overclocking frequency:
    1DPC 1R Max speed up to 6400+ MHz
    1DPC 2R Max speed up to 5400+ MHz
    2DPC 1R Max speed up to 4000+ MHz
    2DPC 2R Max speed up to 4000+ MHz
    Supports Intel XMP 3.0 OC
    Supports Dual Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory

  • Expansion Slots

    3x PCIe x16 slots
    PCI_E1 (From CPU)
    Support up to PCIe 5.0 x16
    PCI_E3 (From Z690 chipset)
    Support up to PCIe 3.0 x4
    PCI_E4 (From Z690 chipset)
    Support up to PCIe 3.0 x1
    1x PCIe 3.0 x1 slot (From Z690 chipset)

  • Multi-GPU

    Supports AMD CrossFire Technology

  • Onboard Graphics

    1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
    1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

  • Storage

    6x SATA 6Gb/s ports (From Z690 Chipset)
    4x M.2 slots (Key M)

    M2_1 slot (From CPU)
    Supports PCIe 4.0 x4
    Supports 2242/ 2260/ 2280/ 22110 storage devices

    M2_2 slot (From Z690 Chipset)
    Supports PCIe 4.0 x4
    Supports 2242/ 2260/ 2280 storage devices

    M2_3 slot (From Z690 Chipset)
    Supports PCIe 3.0 x4
    Supports 2242/ 2260/ 2280 storage devices

  • Storage (Contd.)

    M2_4 slot (From Z690 Chipset)
    Supports PCIe 4.0 x4
    Supports SATA 6Gb/s
    Supports 2242/ 2260/ 2280 storage devices

    Intel Optane Memory Ready for M.2 slots from Z690 Chipset
    Supports Intel Smart Response Technology for Intel Core processors

  • Raid

    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

  • USB

    Intel Z690 Chipset
    1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
    4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
    4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
    1x USB 2.0 Type-A port on the back panel

    Hub-GL850G
    5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

  • Audio

    Realtek ALC4080 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output

  • Internal connectors

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    4 x M.2 slots (M-Key slot)
    1x USB 3.2 Gen 2 10Gbps Type-C connector
    1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
    1x 4-pin CPU fan connector

  • Internal connectors (Contd.)

    1x 4-pin water-pump fan connector
    6x 4-pin system fan connectors
    1x Front panel audio connector
    2x System panel connectors
    1x Chassis Intrusion connector
    1x Clear CMOS jumper
    1x TPM module connector
    1x TBT connector (supports RTD3)
    1x Tuning Controller connector

  • LED Features

    1x EZ LED Control switch
    1x 4-pin RGB LED connectors
    3x 3-pin RAINBOW LED connectors
    4x EZ Debug LED

  • Back Panel Ports

    DisplayPort 1.4, USB 2.0 Port, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, HDMI 2.1 Port, Flash BIOS Button, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF OUT

  • Dimensions

    ATX Form Factor: 12 x 9.6" (30.5 x 24.4cm)

  • UPC Code

    824142272640

About MSI MAG Z690 TOMAHAWK Wi-Fi

What sets the MAG Z690 TOMAHAWK Wi-Fi LGA 1700 SATA 6Gb/s ATX Motherboard apart is its high-quality, reliable, and durable construction, designed to support the latest LGA 1700 processors. This advanced motherboard offers a fast and efficient computing experience, thanks to its variety of expansion ports, including DisplayPort, USB, and USB-C.

The motherboard features an extended heatsink and enhanced circuit design, ensuring even high-end processors run at full speed. It also includes a Pump Fan Support system, controlling water-cooling pump speeds for optimal flow and noise control. The built-in M.2 Shield Frozr provides a strengthened thermal solution, keeping M.2 SSDs safe while preventing throttling, thereby enhancing their speed.

The MAG Z690 TOMAHAWK Wi-Fi LGA 1700 SATA 6Gb/s ATX Motherboard also boasts a 7W/mK thermal pad for superior heat transfer to the heatsink. It features a high-speed 2.5G Network Solution with a premium 2.5G LAN with LAN manager, delivering an improved network experience. The latest Wi-Fi 6E wireless solution supports a 6GHz spectrum, MU-MIMO, and BSS color technology, delivering speeds up to 2400Mbps.

The motherboard also offers an immersive gaming experience with its Audio Boost 5 ALC4080 Codec and top-quality caps. The fully isolated DDR circuit ensures pure data signals for the best gaming and overclocking performance. The latest Gen 5 PCI-E slots provide up to 128GB/s bandwidth for maximum transfer speed.

The motherboard's exclusive Core Boost Technology, with its premium layout design, is ready to unleash maximum performance. The 6-layer PCB with 2oz thickened copper ensures higher performance and long-lasting system stability. The 16+1+1 Duet Rail Power System features an aggressive digital VRM power design with digital PWM IC and 70A Smart Power Stage, ensuring your system runs smoothly under extreme conditions.

The PCI-E Steel Armor protects VGA cards against bending and EMI for better performance, stability, and strength. With years of experience, MSI has built this high-performance motherboard with a selection of high-quality components, ensuring reliability even under extreme conditions.

The MAG Z690 TOMAHAWK Wi-Fi LGA 1700 SATA 6Gb/s ATX Motherboard is more than just a motherboard; it's a testament to MSI's commitment to delivering advanced, reliable, and high-quality products for a superior computing experience.

MSI MAG Z690 TOMAHAWK Wi-Fi Features

  • Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • LGA 1700 socket ATX motherboard with extended heatsink for high-end processor support
  • Advanced thermal design with M.2 Shield Frozr to prevent SSD throttling
  • High-speed networking with 2.5G LAN and Wi-Fi 6E support for superior connectivity
  • Audio Boost 5 with ALC4080 Codec for immersive gaming sound quality
  • Lightning Gen 5 PCI-E slots for up to 128GB/s bandwidth and faster data transfer
  • Robust 16+1+1 Duet Rail Power System for stable and efficient power delivery

What's in the box:

  • MSI MAG Z690 TOMAHAWK Wi-Fi LGA 1700 SATA 6Gb/s ATX Motherboard
  • Wi-Fi Antenna
  • 2x SATA Cables
  • EZ M.2 Clip
  • USB Drive
  • Case Badge
  • MAG Sticker
  • Reward Program/Shout Out Flyer
  • Product Registration Card
  • MSI 3 Year Limited Warranty
