MicaSense RedEdge-M Kit, Includes DLS and Cable

SKU: MSREDEDGEMKT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

MicaSense RedEdge-M Specifications

  • External Power

    4.2V DC - 15.6V DC
    4 W nominal, 8W peak

  • Spectral Bands

    Blue, green, red, red edge, near-IR (global shutter, narrowband)

  • RGB Output

    Global shutter, aligned with all bands

  • Ground Sample Distance

    8cm per pixel (per band) at 400' (120m) (Approx.) AGL

  • Capture Rate

    1 capture per second (all bands), 12-bit RAW

  • Interfaces

    Serial, 10/100/1000 ethernet, removable Wi-Fi, external trigger, GPS, SDHC

  • Field of View

    47.2 Degree HFOV

  • Custom Bands

    400nm - 900nm (QE of 10% at 900nm)

  • Triggering Options

    Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial, and Ethernet options), manual capture mode

  • Dimensions

    3.7 x 2.5 x 1.8" (9.4 x 6.3 x 4.6cm)

  • Weight

    6.3 oz (180g) (Includes DLS and cable)

About MicaSense RedEdge-M

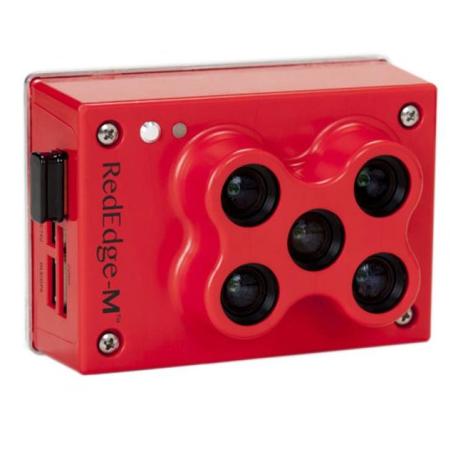

The RedEdge-M
A rugged, built-to-last, professional multispectral sensor. Captures five discrete spectral bands, and is one of the most flexible solutions on the market.

RedEdge-M is action ready, integrating seamlessly no matter the platform.
It has a compact design and is lightweight to work with as many drone models as possible.

Key Benefits
• Compact size allows for integration with a wide variety of drones
• Simultaneous capture of five discrete spectral bands, including RGB color
• Fast capture rate enables faster flight speeds and lower flight altitudes
• Global shutter design for distortion free results on every platform
• Calibrated for precise, repeatable measurements
• Expanded voltage range to handle more integrations without extra power conversion
• Rugged design with no moving parts

MicaSense RedEdge-M Features

  • Narrowband optical filters provide full image resolution for each band
  • Single SD card stores all images with geotags
  • Standalone operation, with optional external trigger and data from host aircraft
  • Intuitive web-based interface accessed from any Wi-Fi-capable device
  • Option for Ethernet or serial communications with host aircraft for full configuration, status, and control of the camera
  • GigE Ethernet connectivity for faster transfer of data between camera and host aircraft

Key Features

  • Narrowband optical filters provide full image resolution for each band
  • Single SD card stores all images with geotags
  • Standalone operation, with optional external trigger and data from host aircraft
  • Intuitive web-based interface accessed from any Wi-Fi-capable device
  • GigE Ethernet connectivity for faster transfer of data between camera and host aircraft

What's in the box:

  • RedEdge-M
  • DLS
  • Cable
  • MicaSense 1 Year Limited Warranty
