Matthews Elevator System (Elemac Base), Includes Hard Flight Case with Wheels, Mitchell Mount, Olympic Weight Bar and Retainer Clip, Supports 50.5lbs Capacity

SKU: MT415068

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Matthews Elevator System Specifications

  • Maximum payload

    50.5lbs (22.91kg)

  • Vertical travel

    25.5" / 64.77cm

  • System height

    40" (101.60cm)

  • Weight

    System: 17lbs (7.71kg)
    49lbs (22.23kg) Including accessories

About Matthews Elevator System

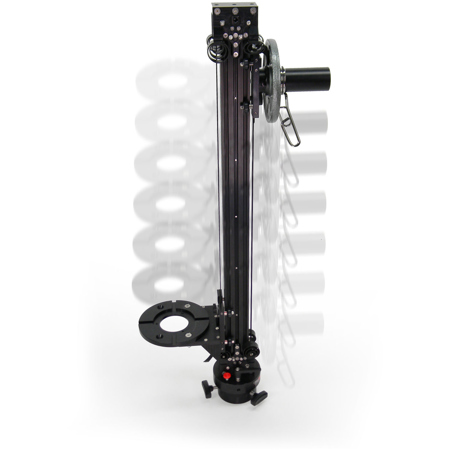

Matthews Studio Equipment is proud to announce the introduction of the Elevator. The Matthews Elevator system is a counterbalanced elevation tower designed to give operators 25.5" of smooth vertical movement, as well as a complete 360 degrees of rotation. The Elevator was specifically designed to work with a variety of camera platforms including heavy-duty sliders like the Matthews Slider, Doorway Dollies, The Dutti Dolly, tripods, pipe dollies, high hats, bazookas or any other platform or adapter that uses an elemac mounting base.

The system gives budget conscious film makers and smaller productions the ability to create compelling vertical camera moves without having to rely on conventional dollies or cranes. The 25.5" of travel will cover the range between sitting and standing positions. The Elevator features a simple 1:1 counterweight (Olympic size barbells), infinite 360 degree panning, multiple 3/8-16 threaded holes for mounting accessories and or triangulating. Its rugged design will support any camera/ fluid head combo up to 23kgs or 50.5 pounds.

And just like the Matthews Slider, it is a dry running system. No grease on the rails or wheels... Just wipe it down with a damp cloth regularly. Another unique new tool from Matthews where "Technology Complements your Imagination." Tools required are 8 and 10mm open wrench (supplied) and one set each of Metric and SAE Allen keys, a level might prove handy also.

What's in the box:

  • Matthews Elevator System (Elemac Base)
  • Hard Flight Case with Wheels
  • Mitchell Mount
  • Olympic Weight Bar and Retainer Clip
  • Matthews 1 Year Warranty
