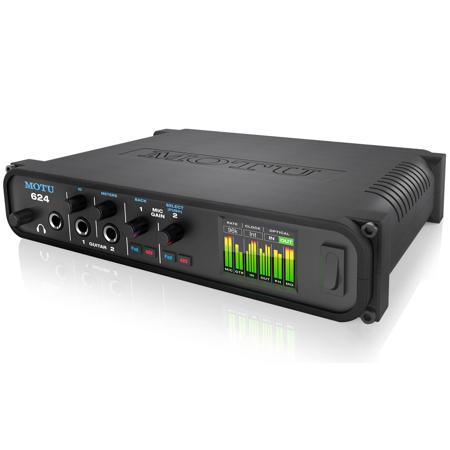

MOTU 624 16x16 Thunderbolt/USB3/AVB Ethernet Audio Interface with DSP & Mixing

Introducing the 624
16 x 16 Thunderbolt / USB3 audio interface with renowned ESS Sabre32 Ultra DAC technology

Equipped with renowned ESS Sabre32 Ultra DAC technology, the 624 has the same award-winning analog audio quality and proven performance as MOTU's flagship 1248 interface - packed into a mobile half-rack enclosure.

32 simultaneous audio channels - Studio-grade I/O for on-the-go recording
You get 2 mic inputs, 2 guitar inputs, 4 x 6 balanced analog with dedicated main outs, 8-channel ADAT optical and independent headphone out for 16 inputs and 16 outputs. The optical ports also support stereo TOSLink (optical S/PDIF).

Superb analog audio quality and high-end converters - Performance suitable for the most demanding situations
Renowned ESS Sabre32 Ultra DAC technology delivers 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248.

Ultra-low latency and proven, high-performance MOTU drivers - The best possible latency performance
The 624 delivers round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt - and an astonishing 1.9 ms over USB - with high-performance DAW hosts.

Mobile operation and universal connectivity - Ultimate portability and flexibility
Connects to your computer with Thunderbolt, super-speed USB 3.0 or AVB/TSN Ethernet - with support for up to 256 audio channels (128 in and 128 out). USB audio class-compliant firmware and high-performance, industry-standard drivers work with any audio apps. Connects to your iPad with a standard camera connection kit (adapter).

• Super-speed USB 3.0 - Compatible with USB 2 and iOS
• Thunderbolt Technology - Blazing speed with any Thunderbolt host
• AVB/TSN - Multi-channel audio over Ethernet

DSP mixing and effects processing - Console-style mixing with 48 channels and 12 busses
The 624's full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.

Modeled vintage effects processing - Vintage processing with 32-bit float precision
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs. The 624's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Flexible matrix routing and splitting - Route your audio anywhere with one-click ease
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the audio network.

Web app control from any device - Control everything from your laptop, tablet and smartphone
The software that you use to control the 624 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 624 on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.

Touch Console - The art of the mix on your touchscreen
Designed specifically for touchscreen operation, Touch Console delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the 624. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.

Stand-alone operation with wireless control - No computer or laptop needed
Connect an Apple Airport or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

System expansion - Expand your system with more I/O and Wi-Fi control

• Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable
• Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately)

Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

Comprehensive metering - View all I/O activity at a glance - in full color
The full-color LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.

AudioDesk - Powerful audio workstation technology for Mac and Windows
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
