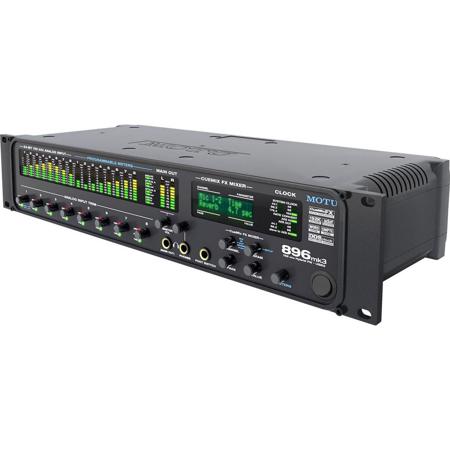

MOTU 896mk3 FireWire/USB 2.0 Hybrid 8 Mic/Guitar Inputs Audio Interface with On-Board Effects & Mixing, 24-bit/192kHz, 28-Input/32-Output

The MOTU 896mk3 FireWire/USB 2.0 Hybrid 8 Mic/Guitar Inputs Audio Interface is a hybrid digital audio interface that features both FireWire and USB 2.0 connectivity. The interface can also function as a rack-mount, standalone mixer without the need for a computer. It provides eight channels of 24-bit/192kHz analog recording and playback, combined with sixteen channels of optical digital I/O, stereo AES/EBU, S/PDIF and separate analog main outs.

An on-board CueMix FX digital mixer allows for routing guitars, synthesizers, keyboards, drum machines and even effects processors with no latency and no processor strain on the host computer. Hardware DSP-driven effects processing can be applied to inputs, outputs and busses independent of the host computer.

DSP effects include the Classic Reverb with reverb times of up to sixty seconds and a seven-band parametric EQ featuring filter types modeled after British analog console EQs. Also included are a conventional compressor and the Leveler, an accurate model of the legendary LA-2A optical compressor that provides automatic gain control. All analog inputs are equipped with V-Limit, a hardware limiter that helps prevent digital clipping from overloaded input signals. Additional protection can be applied to the microphone/guitar inputs by enabling the Soft Clip feature, which engages just before clipping and helps reduce perceptible distortion. Powered monitors can be plugged directly into the outputs of the interface and the output attenuated from the software or a front-panel control. Main out volume is not limited to stereo operation and includes quad, 5.1, 7.1 and even user-defined configurations are available. Additional programming allows for all thirty-two outputs to be controlled with the master volume knob.

Hybrid FireWire / USB2 connectivity
As a hybrid audio interface, the 896mk3 provides flexible connectivity to any Mac or PC via FireWire or high-speed USB 2.0, with eight channels of pristine 24-bit 192 kHz analog recording and playback, combined with sixteen channels of optical digital I/O, stereo AES/EBU, S/PDIF and separate analog main outs. Expand your system by connecting the 8pre mic input expander or other MOTU audio interfaces.

Flexible operation
The 896mk3 is equally well-suited for studio and stage, with or without a computer. As an interface or standalone mixer, the 896mk3 provides 28 separate inputs and 32 separate outputs, including dedicated main outs on XLRs and two front panel headphone outs.

On-board digital mixer with effects for monitoring and live mixing
Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and even effects processors. Record, monitor, route and process all of these live inputs using the professional on-board CueMix FX digital mixer - with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs and busses independent of your host computer. Add Classic Reverb with lengths up to 60 seconds. Further sculpt your sound with 7-band parametric EQ featuring filter types carefully modeled after British analog console EQs. Choose between two forms of compression: a conventional compressor and the Leveler, an accurate model of the legendary LA-2A optical compressor that provides vintage, musical automatic gain control. When recording from the analog inputs, the 896mk3's signal overload protection gives you an extra 12 dB of headroom above zero with no clipping or harsh artifacts.

Advanced audio analysis tools
Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "waterfall" display, full-featured oscilloscope, x-Y plot and linear/polar phase analysis graphs.

Stand-alone operation as a mixer
After programming the on-board mixing in the studio, unplug the 896mk3 from the computer and take it on the road for operation as a stand-alone mixer with effects. All mixing and effects parameters are adjustable using the front panel backlit LCD.

Across-the-board compatibility
The 896mk3 provides cross-platform compatibility with Mac and Windows and all of your favorite audio software and host-based effects via WDM/ASIO/Core Audio drivers. Or you can use the included AudioDesk workstation software for Mac, with 24-bit recording/editing and 32-bit mixing/processing/mastering.
