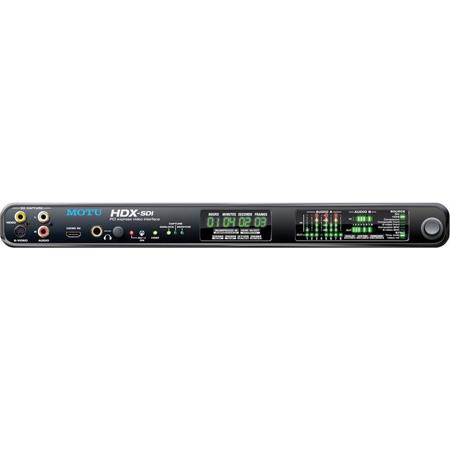

MOTU HDX-SDI SDI/HDMI/Analog Video Interface with PCI Express Card for Mac & Windows

The MOTU HDX-SDI SDI/HDMI/Analog Video Interface with PCI Express Card is a comprehensive video capture and monitoring system that supports a wide variety of professional workflows. With the blazing speed of PCI Express, the HDX-SDI video interface turns your Mac or PC desktop a powerful HD/SD video production workstation equipped with all the I/O you need. Connect any source, from SD camcorders to today's latest professional HD cameras, then log and capture HD or SD clips directly into your video editing software.

For the best-possible image quality, capture uncompressed video via HD-SDI or HDMI with 4:2:2 10-bit color depth and full-raster 1920x1080 HD resolution. Many cameras feed their uncompressed SDI, HDMI or component output directly from the camera's optics and imager, before compression, for absolutely pristine picture quality during capture with the HDX-SDI.

If you prefer to edit more conveniently at a lower data rate, use Apple ProRes, ProRes HQ, Avid DHXHD, or the codec of your choice in Avid Media Composer 6.5, Apple Final Cut Pro, or Adobe Premiere Pro. Because the HDX-SDI delivers 10-bit uncompressed video to the computer, you are not limited to a particular codec and are instead free to go with the host-based workflow of your choice, including many popular file-based formats now supported by today's video editing software. By using a codec directly supported by your editing software, you eliminate unnecessary extra stages of compression and decompression for maximum CPU efficiency and smooth editing.

Capture and monitor up to 16 channels of audio (analog, AES/EBU or embedded) at sample rates up to 96 kHz. Employ Sony 9-pin machine control for advanced Batch Capture and Edit to Tape operations. Keep everything frame-accurate using time code and video reference. From initial capture to final finishing, the HDX-SDI delivers exceptional video I/O performance and quality.
