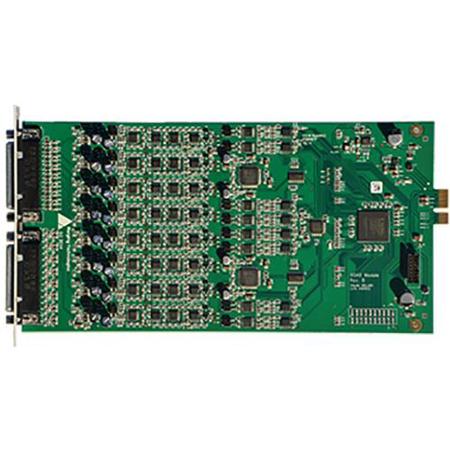

Merging Technologies ADA8 8-Channel Mic/Line AD and DA Input and Output Card
See all Merging Technologies items

Merging Technologies ADA8 8-Channel Mic/Line AD and DA Input and Output Card, Up to 192kHz Converter

SKU: MTIOMHADA8

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Merging Technologies ADA8 Specifications

Mic-Pre + ADC Section

Mic-Pre + ADC Section

Jump to...

  • Mic Pre Max Input

    +24dBu / +13dBu (Pad On / Pad Off)

  • Input Impedance

    2KOhms / 6.8KOhms (Differential, Software Switchable Per Channel)

  • Frequency Response

    +0/-0.3dB at fs = 48kHz: 10Hz - 22kHz
    +0/-0.3dB at fs = 96kHz: 10Hz - 44kHz
    +0/-0.3dB at fs = 192kHz: 10Hz - 85kHz

  • Dynamic Range

    119.5dB (A-weighted, typ.), ref +13dBu

  • Gain Range

    0dB to +66dB (Software Controlled)

  • Gain Step/Precision

    0.5dB / +/-0.2dB

  • THD+N Pre + A/D (20Hz - 20kHz)

    < -102dB (0.0008 %) at -2 dBFS

  • Interchannel Crosstalk at 1kHz

    < -125dB

  • EIN at >40dB Gain

    < -128dBu (150Ohms Source Impedance, A-weighted)

  • Common Mode Rejection Rate

    > 60dB (up to 0dBFS) (20Hz - 20kHz)

  • Phantom Power

    +48V (Software Switchable Per Channel)

  • Phase Reverse

    Yes (Software Switchable Per Channel)

  • Low Cut filter

    -12dB/octave, 80Hz (Software Switchable Per Channel)

Line Input Section

Jump to...

  • Max Line Input

    +24dBu for 0dBFS

  • Input Impedance

    13.6KOhms (Differential)

  • Dynamic Range

    120dB (A-weighted, typ), ref +24dBu

  • THD+N Line+A/D (20Hz - 20kHz)

    < -102dB (0.0008%) at -2dBFS

  • Interchannel Crosstalk

    -125dB at 1kHz, typ.

  • Sensitivity Range for 0dBFS

    -42dBu to +24dBu (software controlled)

  • Gain Step/Precision

    0.5dB / +/-0.2dB

  • Common Mode Rejection Rate

    > 60dB (up to 0dBFS) (20Hz - 20kHz)

  • Connector Pinout (DB-25 Female)

    DB-25 / AES59 (Tascam Ana.)

Line Output Section

Jump to...

  • Max Output Level Software Switchable

    +24dBu / +18dBu +0/-0.5dB for 0dBFS

  • Frequency Response

    +0/-0.3dB at fs = 48kHz: 6Hz - 22kHz
    +0/-3dB at fs = 96kHz: 6Hz - 44kHz
    +0/-3dB at fs = 192kHz: 6Hz - 88kHz

  • Output Impedance

    < 100Ohms (Differential)

  • Dynamic Range

    123dB (A-weighted, typ.)

  • THD+N (1kHz) at 0dBFS

    < -108dB (0.0004 %)

  • Interchannel Crosstalk at 1kHz

    < -135dB

  • Connector Pinout

    DB-25 / AES59 (Tascam Ana.)

Mic-Pre Analog Section

Jump to...

  • Frequency Response

    +0/-0.5dB, Line: 5Hz - 75kHz
    +0/-2.0dB, Line: 2.5Hz - 150kHz
    +0/-0.5dB, Mic: 10Hz - 100kHz
    +0/-2.0dB, Mic: 5Hz - 200kHz

  • THD+N (1 kHz), Line/Mic at G=0dB

    < -115dB (0.00018 %)

  • THD+N (20Hz-20kHz), Line/Mic at G=0dB

    < -112dB (0.00025 %)

  • Interchannel Crosstalk at 1kHz, typ.

    -135dB

  • 5deg. Low-End In-Channel

    Empty Set Deviation pt (Line): 13Hz
    Empty Set Deviation pt (Mic): 35Hz

  • Interchannel Phase

    < +/-0.1 deg. (10Hz - 100kHz)

Latencies

Jump to...

  • Input Latency

    At 44.1/48kHz: 16 samples
    At 88.2/96kHz: 16 samples
    At 176.4/192kHz: 13 samples

  • Output Latency

    At 44.1/48kHz: 9 samples
    At 88.2/96kHz: 9 samples
    At 176.4/192kHz: 9 samples

About Merging Technologies ADA8

These remotely controlled Mic/Line Input and Output cards have broken a new barrier in terms of compactness as well as ultra-low power consumption without compromising on the audio quality. These cards work at sampling rates up to 192kHz. Using those combined 8 channel Mic/Line In and Line Out cards allow the Hapi to be configured with up to 16 channels of Analog In/Out.

Merging Technologies ADA8 Features

  • 8x exceptionally transparent, Swiss designed pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Phase/Low Cut/Impedance switchable per channel
  • Dynamic range of 120dB (A-weighted, typ) on the Line inputs
  • Auto-mute circuitry for no-pop power cycling
  • Digitally controlled output trims for line up procedures
  • Dynamic range of 123dB (A-weighted, typ.) on the Line outputs
