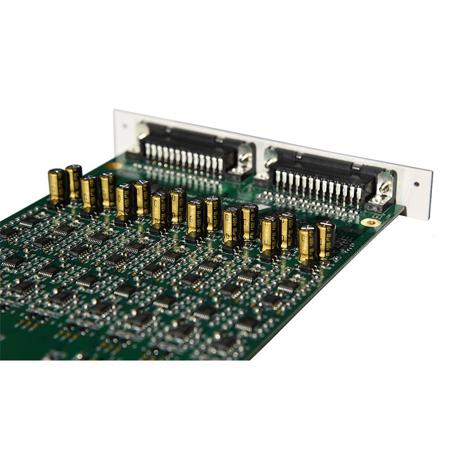

Merging Technologies AKD8D Mic/Line & AD Input Card, Up to 192kHz Converter
See all Merging Technologies items

Merging Technologies AKD8D 8-Channel Mic/Line and AD Input Card with Direct Out Section, Up to 192kHz Converter

SKU: MTIOMHAKD8D

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?AARON G : My converter

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Merging Technologies AKD8D Specifications

Mic Pre-Amp + ADC

Mic Pre-Amp + ADC

Jump to...

  • Mic Pre Max Input

    +24dBu / +13dBu (Pad On / Pad Off)

  • Input Impedance

    1.9KOhms / 10KOhms (Differential, Software Switchable Per Channel)

  • Input Impedance with +48V ON

    1.9KOhms / 10KOhms (Diff., Soft. Switchable Per Channel)

  • Dynamic Range

    123.5dB (A-weighted, typ.) , ref +10dBu

  • Gain Range

    0dB to +66dB (Software Controlled)

  • Gain Step/Precision

    0.5dB / +/-0.2dB

  • THD+N Pre + A/D (20Hz-20kHz)

    < -110dB (0.00031%)/-111dB (0.00028%) at -2dBFS (Standard/Premium)

  • Interchannel Crosstalk at 1kHz, typ.

    < -125dB

  • EIN at >40dB Gain

    < -128dBu (150Ohms Source Impedance, A-weighted, typ.)

  • Common Mode Rejection Rate

    > 60dB (up to 0dBFS) (20Hz - 20kHz)

  • Phantom Power

    +48V (Software Switchable Per Channel)

  • Phase Reverse

    Yes (Software Switchable Per Channel)

  • Low Cut filter

    -12dB/octave, 80Hz (Software Switchable Per Channel)

Line Input

Jump to...

  • Max Line Input

    +24dBu for 0dBFS

  • Input Impedance

    10KOhms (Differential)

  • Dynamic Range

    124dB (A-weighted, typ), ref +24dBu

  • THD+N Line+A/D (20Hz - 20kHz)

    < -110dB (0.00031%)/-111dB (0.00028%) at -10dBFS

  • Interchannel Crosstalk at 1kHz

    < -130dB at Fullscale

  • Sensitivity Range for 0dBFS

    -42dBu to +24dBu (software controlled)

  • Gain Step/Precision

    0.5dB / +/-0.2dB

  • Common Mode Rejection Rate (20Hz-20kHz)

    > 60dB / > 65dB (both up to 0dBFS)

  • Connector Pinout

    DB-25 / AES59 (Tascam Ana.)

Mic-Pre Analog Section

Jump to...

  • Frequency Response

    +0/-0.5dB, Line: 2Hz - >200kHz
    +0/-2.0dB, Line: 1Hz - >200kHz
    +0/-0.5dB, Mic, at G=40dB: 2Hz - 65kHz
    +0/-2.0dB, Mic, at G=40dB: 1Hz - 160kHz

  • THD+N (1 kHz), Line/Mic at G=0dB

    < -115dB (0.00018 %)

  • THD+N (20Hz-20kHz), Line/Mic at G=0dB

    < -112dB (0.00025 %)

  • Interchannel Crosstalk at 1kHz, typ.

    -140dB

  • 5deg. Low-End In-Channel

    Empty Set Deviation pt (Line): 9Hz
    Empty Set Deviation pt (Mic): 9Hz

  • Interchannel Phase

    < +/-0.1 deg. (10Hz - 100kHz)

Direct Out Section

Jump to...

  • Frequency Response

    2Hz - 65kHz (+0/-0.5dB at Gain 40dB)

  • Max Direct Output Level, typ

    +24dBu / +13dBu

  • Direct Output Impedance

    > 100Ohms (Differential)

  • Dynamic Range

    140dB (flat 20Hz-20kHz, typ.)

  • THD+N (1kHz) at +10dBu

    < -120dB (0.0001 %)

  • Direct Output Connector Pinout

    DB-25 / AES59 (Tascam Ana.)

About Merging Technologies AKD8D

These remotely controlled Mic/Line Input cards have set a new benchmark in analog circuitry design and provide additionally a Line level post Mic-pre "Direct Out" output. Available in models that work up to 192kHz (AKD8D) and DXD/DSD256 (AKD8DP).

Merging Technologies AKD8D Features

  • 8x exceptionally transparent, Swiss designed pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Phase/Low Cut switchable per channel
  • Removes the need for DI boxes
  • Allows build-in Mic splitting variants
  • Better than 120dB dynamic range
