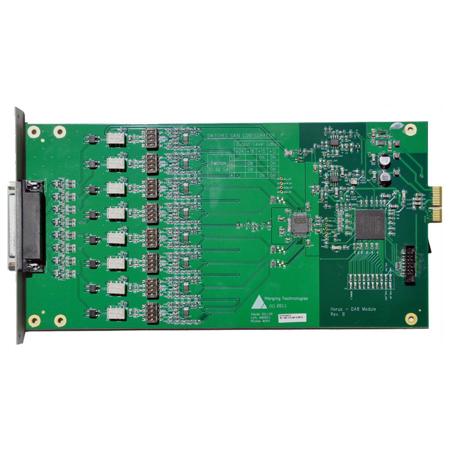

Merging Technologies Horus 8 Channel Line Output D/A Module, Up to DSD Premium, 100Ohms Output Impedance, 6Hz-20kHz Frequency Response

The Merging Technologies Horus 8 Channel Line Output D/A Module features both hardware level settings in the form of 4 DIP switches per output channel and a software fine adjustment to align the Analog Output levels to whatever local/organization operational levels are mandated. The Hardware settings will usually be set only once, at product installation, and only if the desired Operating Line Level differs from the default ex-factory settings of +18Bu for 0 dBFS.

The DA8P (works at sample rates up to DSD) is specifically designed with the user's speakers in mind. Incorporating analogue mute circuitry, the DA8P module provide protection against spurious transients that may occur during Sample rate changes and power cycling "clicks" and "pops" which can damage not only speakers, but also the listener's ears. When you add to that a noise floor of less than -125dB, these are the ultimate analog outputs for any monitoring system.
