This item is no longer available.

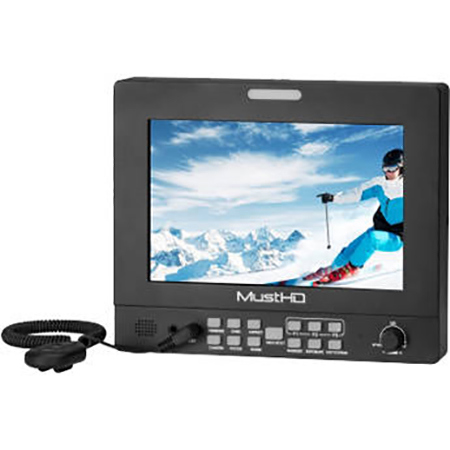

This top-of-the-line, powerful and affordable 3G-SDI M703S field monitor was designed for the professional cinematographer shooting in the field. The 7" 1920x1200 Hyper-Brite IPS panel has an industry-leading LED backlight capable of 2200cd/m2 (2,200 nits) output. The brightness of the display enables viewing in sunlight without the need for a sun hood.
• 1920 x 1200 7" IPS Panel
• Luminance of 2200cd/m2 (2,200 nits)
• HDMI & Composite inputs
• 4K/60Hz 3G-SDI/HDMI Input/Loop-through Support
• 4K Support with support under the 4K
• Focus Assist / Peaking Color Rgb
• False Color for Under/Over Luminance Warning
• Histogram and Zebra
• Pixel-to-Pixel
• Volume Bar
• R/G/B/Gray-only display
• H/V Mirror
• 3 Button Programmable Wired Remote
• Four 1/4"-20 Thread Mounting Holes
• Speaker & Headphone Output
• Tally
The SDI and HDMI inputs can handle up to a 4K/60Hz signal and the loop-through output enables the use of external recording devices for maximum capture flexibility. It is constructed with aluminum making it durable and fast cooling. It ensures the monitor's reliability and longevity. The programmable wired 3 button remote helps make your work easier. Easily set up your most used functions and be able to access them with the push of a single button. A velcro strap allows the remote to be attached to a tripod or frame.
It helps the user to easily find the right focus by adding sharp outline on the shape on boundaries of the object until the color indicator outlining the desired area indicates optimal focus. The peaking has three color options red, blue and green.
Histogram
Luminance histogram: shows the distribution of brightness in an image asa graph of luminance.
Exposure
It superimposes zebra over the on-screen image, indicating if an area of the shot is overexposed.
Volume bar
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.
Single color
It is an assistant function to adjust camera color settings. Under the singlecolor mode, you can use red, green, blue or mono pixels to generate the image.
Marker
A borderline of the Safety Area will be dispLayed inside the marker. When the Marker and the Marker type are both activated, a border Line of the SafetyArea will be displayed inside the marker. To set the marker type between auto, 16:10, 16:9, 15:9, 1.85:1, 2.35:1 and 4:3.
Aspect Ratio
to set the display scale mode between auto, 16:10, 16:9, 15:9, 1.85:1, 2.35:1 and 4:3.
