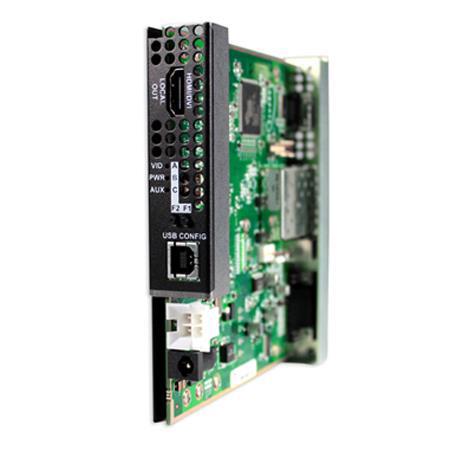

Magenta Research Voyager CF-HDMI-TX2 Two-port Compact Format HDMI/DVI Transmitter Card with HDCP

Why settle for less when you can have the Voyager CF-HDMI-TX2 Two-port Compact Format HDMI/DVI Transmitter Card with HDCP This high-quality, durable, and reliable device is designed to seamlessly transmit high-definition video and audio signals from your source device to your display device.

Engineered to work in harmony with the 4U, rack-mountable Voyager CF-18 chassis, the Voyager CF-HDMI-TX2 transmitter is the cornerstone for the extension and distribution of video (HDMI with HDCP or DVI), audio, and serial signals over fiber-optic cable. A single CF-18 chassis can accommodate and power up to 18 CF-HDMI-TX2 transmitters, resulting in tidier racks and a more streamlined and efficient installation process compared to individually rack mounting and installing separate Voyager transmitters.

The Voyager CF-HDMI-TX2 supports the transmission of 1920x1200 uncompressed video (either HDMI w HDCP or DVI), plus audio and serial to distances of up to 6,600 feet over multimode fiber. It comes standard with one MMF SFP, but the transmitter also features a second port that, when equipped with a second SFP, opens up a plethora of signal distribution options. For instance, users could cascade signals to a second transmitter or feed a second grouping of Voyager receivers, which can be daisy-chained.

For those requiring longer distances, singlemode fiber optic modules supporting distances of 4KM and 30KM are available from Magenta. This innovative, compact, and versatile device is the perfect solution for those who need to connect multiple devices to their display.
