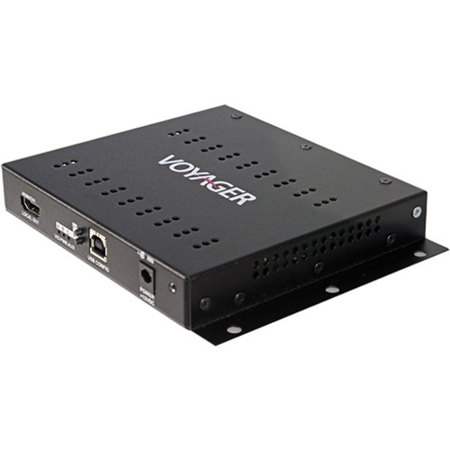

Magenta Research Voyager CFS-HDMI-TX2 Two-port Standalone Compact Format HDMI/DVI Transmitter with HDCP

SKU: MV221110801 MFR: 2211108-01
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal with this Magenta Research HDMI transmitter for optimal performance.
  • Experience seamless connectivity with this compact HDMI/DVI transmitter, perfect for various setups.
  • Enjoy crystal-clear 1080p resolution with this HDMI transmitter, ensuring top-notch display quality.
  • This durable HDMI transmitter features a steel enclosure and a 100,000-hour MTBF for reliability.
  • Ensure HDCP compliance with this HDMI repeater, making it ideal for protected content transmission.
  • Simplify your setup with this Magenta Research HDMI transmitter, supporting up to 8 audio channels.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research CFS-HDMI-TX2 Specifications

  • Maximum Resolution

    1080p, 1920 x 1200

  • Color Depth

    Maximum: 24 bits/pixel (8 bits/color)

  • Refresh Rate

    Maximum: 60Hz at 1920 x 1200

  • Connectors

    Input: 1x HDMI
    Output: 1x HDMI
    1x CORE docking connector

  • Audio Characteristics

    All 8 channels (if present) of embedded HDMI audio, passing them through the system to the receiver

  • EDID/DDC

    Supports the EDID/DDC connections on the HDMI connectors

  • HDMI

    Version 1.3b

  • HDCP

    Version 1.1
    Classification: HDCP repeater device

  • Power

    Approx. 0.5W

  • Enclosure

    Steel (0.040"/1mm thick)

  • MTBF

    100,000 hours

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity

    80% RH, non-condensing

  • DC input power

    Provided by the CORE module. However, power consumption of this module alone is approximately 0.5 watts.

  • Dimensions (W x H x D)

    1.75 x 5.5 x 5.25" / 4.45 x 13.97 x 13.34cm

  • Weight

    1.4lbs / 0.64kg

About Magenta Research CFS-HDMI-TX2

Only an inch-deep, the Voyager CFS (Compact Format Standalone) HDMI Transmitter offers all the performance of the larger, modular VG-TX2-MM-HDMI transmitter, but comes in a much smaller form factor that can easily be mounted behind a screen or in other small areas. CFS-HDMI-TX2 units support the transmission of 1920x1200 uncompressed video (either HDMI w HDCP or DVI), plus audio and serial to distances of 6,600 feet over multimode fiber. While it ships with one MMF SFP standard, the transmitter features a second port that, when populated with a second SFP, introduces a variety of signal distribution options. For example, users could cascade signals to a second transmitter or feed a second grouping of Voyager receivers (which can be daisy-chained).

Singlemode fiber optic modules supporting longer distances (4KM and 30KM) are available from Magenta. The CFS-HDMI Transmitter ships with a power supply. A built-in mounting flange enables the transmitter to easily be secured wherever necessary.

Magenta Research CFS-HDMI-TX2 Features

  • Two duplex fiber output ports (VG-TX2)
  • Small form factor makes mounting easy
  • Uncompressed multi-format video at 1920x1200
  • Distance range of up to 18.75MI/30KM determined by receiver
  • Singlemode or multimode fiber support
  • Advanced EDID management and HDCP compliance
  • Local video output (HDMI)

Key Features

  • Extend your HDMI signal with this Magenta Research HDMI transmitter for optimal performance.
  • Experience seamless connectivity with this compact HDMI/DVI transmitter, perfect for various setups.
  • Enjoy crystal-clear 1080p resolution with this HDMI transmitter, ensuring top-notch display quality.
  • This durable HDMI transmitter features a steel enclosure and a 100,000-hour MTBF for reliability.
  • Ensure HDCP compliance with this HDMI repeater, making it ideal for protected content transmission.
  • Simplify your setup with this Magenta Research HDMI transmitter, supporting up to 8 audio channels.

What's in the box:

  • Magenta Research Voyager CFS-HDMI-TX2 Two-port Standalone Compact Format HDMI/DVI Transmitter with HDCP
  • Multimode Fiber Optic SFP Module
  • Magenta Research 3 Year Warranty
