Magenta Research Voyager VG-TX2-MM-VGA-ISA 2-Port VGA Transmitter
Magenta Research VG-TX2-MM-VGA-ISA: Picture 1 thumbnail
Magenta Research VG-TX2-MM-VGA-ISA: Picture 2 thumbnail
See all Magenta Research items

Magenta Research Voyager VG-TX2-MM-VGA-ISA 2-Port Analog Video/Audio & Duplex Serial Fiber Optic Transmitter, 18.75miles/30km Distance Range

SKU: MV231000801 MFR: 2310008-01
Be the first to review this itemAsk a Question
$830.00
OR
$70/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your video reach up to 18.75 miles with this reliable fiber optic transmitter!
  • Enjoy stable video signal transmission with real-time conversion, perfect for live events.
  • This video format converter supports resolutions up to 1920x1080 for clear visuals.
  • Easily integrate various analog video sources using multiple input connectors (VGA, S-Video).
  • Achieve high-quality audio with discrete left and right line-level audio interfaces.
  • Ensure seamless compatibility with EDID/DDC support for hassle-free video connectivity.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Magenta Research VG-TX2-MM-VGA-ISA Specifications

  • No of Output Ports

    2 duplex fiber output ports

  • DC input power

    Provided by the CORE module. However, power consumption of this module alone is approximately 1.5 watts

  • Video Support

    Video input formats (video input port):
    Maximum resolution supported = 1920x1080
    Maximum color-depth = 24 bits per pixel (8 bits per color)
    Maximum refresh rate = 60Hz at 1920x1080, 75HZ at 1152x864.
    Video output formats (local VGA output port only):
    The local output port is essentially a direct copy of the VGA video input port. There are no local output ports for the non-VGA analog signals

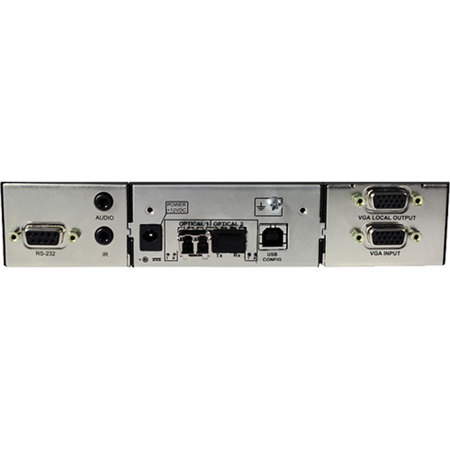

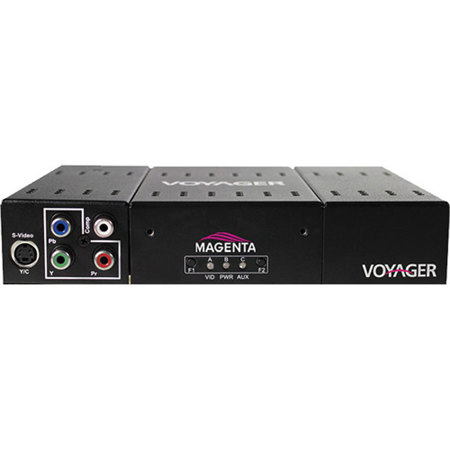

  • Connectors

    (1) VGA-input (HD-15F)
    (1) VGA-output (HD-15F)
    (1) S-Video input (6pin MiniDIN)
    (1) Composite video input (RCA phono)
    (3) Component video inputs (RCA phono)
    (1) CORE docking connector

  • Serial Interface

    RS232 standard serial interface. Reflects DCE pinout standard
    Signals: TXD, RXD, RTS, CTS, DSR, DTR, DCD and RI
    Speeds: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
    Baud. Format: 8 data. 1 or 2 stop bits. no parity bit
    Flow control: Hardware and software flow-control is available, configurable on/off
    Connector: DB9-Female, w/4-40 standoffs

  • Audio interface - 1

    Discrete Left and Right line-level audio.
    This module can function as an input (for TX) or output (for RX) device. The audio signal direction is under software control and is selected automatically by the type of CORE module being used.
    Audio-input mode (when used with VG-TX2 CORE):
    Input voltage: 2V peak-to-peak, maximum.
    Input impedance: >= 10K ohms.
    Input coupling: AC (capacitive).Input sample rate: 48KHz
    Input frequency response: 20-20KHz, ( at -3dB)

  • Audio interface - 2

    Audio-output mode (when used with VG-RX CORE):
    Output voltage: 2V peak-to-peak, maximum.
    Output impedance: <= 100 ohms.
    Output coupling: AC (capacitive).
    Output sample rate: 48KHz
    Output frequency response: 20-20KHz, ( at -3dB).
    Connector: 3.5mm (1/8") stereo-phono type jack

  • EDID/DDC

    This module supports the EDID/DDC connections on the VGA input connector

  • MTBF

    100,000 hours

  • Dimensions (H x W x D)

    1.75 x 5.50 x 5.25" (4.45 x 13.97 x 13.33 cm)

  • Weight

    1.4 lbs (0.63 kg)

About Magenta Research VG-TX2-MM-VGA-ISA

With the Magenta Research Voyager VG-TX2-MM-VGA-ISA 2-Port Analog Video/Audio & Duplex Serial Fiber Optic Transmitter, experience the seamless transmission of high-quality analog video and audio signals over long distances. This advanced and reliable device accepts a wide range of analog video inputs, including RGBHV, component, S-Video, and composite, and adeptly converts them into sharp, 1080p digital signals.

Designed for compatibility with Voyager HDMI or DVI Receivers, this innovative transmitter also efficiently handles analog audio and duplex RS-232 signals, ensuring a versatile and comprehensive solution for your audio-visual needs.

One of the standout features of this durable transmitter is the ability to infuse the analog audio input into the HDMI output stream when paired with a Voyager HDMI Receiver, courtesy of the MaGUI software. This feature enhances the audio-visual experience, providing a unified, high-quality output.

The Voyager 2-Port Transmitter comes equipped with a multi-mode fiber-optic module, offering the flexibility to cascade signals to a second Voyager transmitter or distribute signals to multiple Voyager receivers. This feature makes it an ideal choice for complex setups requiring signal distribution across multiple receivers.

Moreover, the transmitter's impressive range can be extended up to 18.75 miles (30 km) when used with optional single-mode fiber optic modules, making it a perfect choice for CCTV, security, and surveillance applications where long-distance, high-quality signal transmission is paramount.

This high-quality transmitter package also includes a power supply, ensuring you have everything you need to get started with your long-distance audio-visual transmission needs. Experience the power and reliability of the Voyager VG-TX2-MM-VGA-ISA 2-Port Analog Video/Audio & Duplex Serial Fiber Optic Transmitter today.

Magenta Research VG-TX2-MM-VGA-ISA Features

  • Two (VG-TX2) duplex fiber output ports
  • Analog to digital (1080p) video conversion
  • Analog audio and RS-232
  • Distance range of up to 18.75MI/30KM determined by receiver
  • Singlemode or multimode fiber support
  • Advanced EDID management and HDCP compliance
  • Local video output (VGA)
