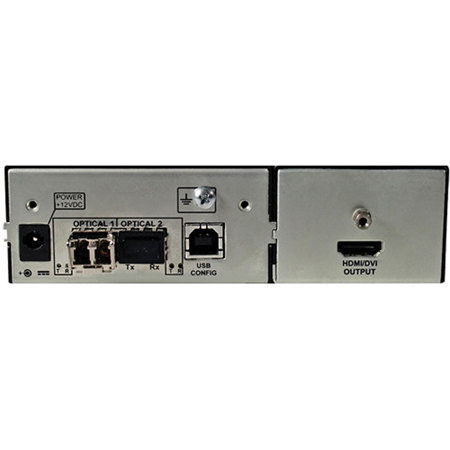

Magenta Research VG-RX2-MM-HDMI 2-Port HDMI Receiver with HDCP
See all Magenta Research items

Magenta Research VG-RX2-MM-HDMI 2-Port HDMI Receiver with HDCP

SKU: MV232000101
Be the first to review this item

This item is no longer available.

See all Used options (1) from $64

Recommended Alternatives

undefined undefined: Picture 1 regular
Magenta Research Infinea DVI-SAP Video Transmitter
$1,325.00
undefined undefined: Picture 1 regular
Magenta Research Infinea DVI-SAP Daisy Chain Receiver
$1,325.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magenta Research VG-RX2-MM-HDMI Specifications

  • Ports

    Two-port (VG-RX2)

  • DC input power

    Provided by the CORE module. However, power consumption of this module alone is approximately 0.5 watts

  • Video Support

    Video output formats:
    Maximum resolution supported = 1080p or 1920x1200
    Maximum color-depth = 24 bits per pixel (8 bits per color)
    Maximum refresh rate = 60Hz at 1920x1200

  • Audio Characteristics

    This module automatically provides embedded HDMI-audio (if audio is available at the source AND if the EDID in the sink or display device supports it)

  • Connectors

    (1) HDMI-output, (1) CORE docking connector

  • EDID/DDC

    This module supports the EDID/DDC connections on the HDMI connector

  • HDMI

    Version 1.3b

  • HDCP

    Version 1.1. Classification: HDCP Repeater Device

  • CEC

    The HDMI "CEC" interface protocol is not currently supported

  • Operating temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage temperature

    -4 to +140deg.F (-20 to +60deg.C)

  • Humidity

    80% RH, non-condensing

  • Enclosure

    Steel (0.040"/1mm thick)
    Powder-coat black paint, white epoxy graphics

  • Dimensions (H x W x D)

    1.75 x 5.5 x 5.25" / 4.44 x 13.97 x 13.33cm

  • Weight

    1.40 lbs (0.63 kg)

About Magenta Research VG-RX2-MM-HDMI

The Magenta Research VG-RX2-MM-HDMI 2-Port HDMI Receiver with HDCP accepts video from any Voyager transmitter (HDMI, DVI, VGA or component). The receiver supports HDCP-protected video and is rated for 1920 x 1200 uncompressed video signals, to distances of 6,600' over multimode fiber. One multimode fiber-optic module is included with each unit. Up to 10 (or more, depending on distance and the specific type of fiber being used) Voyager receivers can ultimately be daisy-chained together. When using an HDMI source, embedded HDMI audio is also sent through the Voyager transmitter to the receiver and outputted to a display via a HDMI connector. A power supply is also included.

Magenta Research VG-RX2-MM-HDMI Features

  • Singlemode or multimode fiber (Multimode module included)
  • 2-port (VG-RX2) functionality
  • Uncompressed multi-format video at 1920 x 1200
  • Daisy-chain capability with full bi-directional signal support
  • Advanced EDID management and HDCP compliance
  • Supports embedded HDMI audio
  • Units comes with a multimode fiber optic SFP module

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 2-port (VG-RX2) functionality
  • Uncompressed multi-format video at 1920 x 1200
  • Advanced EDID management and HDCP compliance
  • Supports embedded HDMI audio

What's in the box:

  • Magenta Research VG-RX2-MM-HDMI 2-Port HDMI Receiver with HDCP
  • Multimode Fiber Optic SFP Module
  • Power Supply
  • Magenta Research 3 Year Limited Warranty
