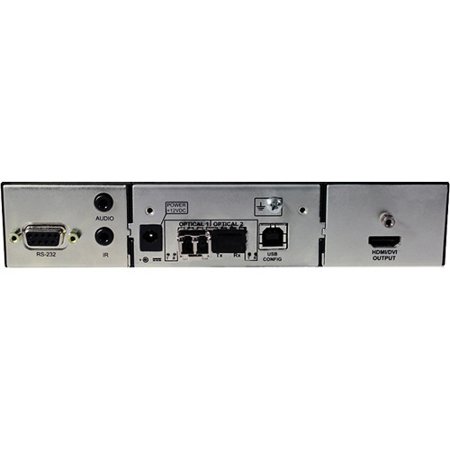

Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver with HDCP, Audio, Duplex RS-232

SKU: MV232000801 MFR: 2320008-01
Earn VIP Reward Points

Key Features

  • Achieve high-resolution video output up to 1080p with this HDMI scaling receiver.
  • Enjoy stable connection via fiber optic SFP module for reliable video format conversion.
  • This video converter supports HDMI 1.3b and HDCP 1.1 for secure content delivery.
  • Easily manage audio with embedded HDMI-audio support, enhancing your viewing experience.
  • Use the RS232 serial interface for seamless integration and control of your video system.
  • Benefit from real-time video conversion with a 2-port HDMI output for flexible display options.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research VG-RX2-MM-SRxHDMI-ISA Specifications

  • Ports

    2-port (VG-RX2)

  • DC input power

    Provided by the CORE module. However, power consumption of this module alone is approximately 0.5 watts

  • Video Support

    Video output formats:
    Maximum resolution supported = 1080p or 1920x1200
    Maximum color-depth = 24 bits per pixel (8 bits per color)
    Maximum refresh rate = 60Hz at 1920x1200

  • Audio Characteristics

    This module automatically provides embedded HDMI-audio (if audio is available at the source AND if the EDID in the sink or display device supports it)

  • Connectors

    (1) HDMI-output, (1) CORE docking connector

  • EDID/DDC

    This module supports the EDID/DDC connections on the HDMI connector

  • HDMI

    Version 1.3b

  • HDCP

    Version 1.1. Classification: HDCP Repeater Device

  • CEC

    The HDMI "CEC" interface protocol is not currently supported

  • Operating temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage temperature

    -4 to +140deg.F (-20 to +60deg.C)

  • Humidity

    80% RH, non-condensing

  • Enclosure

    Steel (0.040"/1mm thick)
    Powder-coat black paint, white epoxy graphics

  • Serial Interface

    RS232 standard serial interface. Reflects DCE pinout standard
    Signals: TXD, RXD, RTS, CTS, DSR, DTR, DCD and RI
    Speeds: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 Baud
    Format: 8 data. 1 or 2 stop bits. no parity bit
    Flow control: Hardware and software flow-control is available, configurable on/off
    Connector: DB9-Female, w/4-40 standoffs

  • Audio interface - 1

    Discrete Left and Right line-level audio.
    This module can function as an input (for TX) or output (for RX) device. The audio signal direction is under software control and is selected automatically by the type of CORE module being used.
    Audio-input mode (when used with VG-TX2 CORE):
    Input voltage: 2V peak-to-peak, maximum.
    Input impedance: >= 10K ohms.
    Input coupling: AC (capacitive).
    Input sample rate: 48KHz
    Input frequency response: 20-20KHz, ( at -3dB)

  • Audio interface - 2

    Audio-output mode (when used with VG-RX CORE):
    Output voltage: 2V peak-to-peak, maximum.
    Output impedance: <= 100 ohms.
    Output coupling: AC (capacitive).
    Output sample rate: 48KHz
    Output frequency response: 20-20KHz, ( at -3dB).
    Connector: 3.5mm (1/8") stereo-phono type jack

  • MTBF

    100,000 hours

  • Dimensions (H x W x D)

    1.75 x 7.75 x 5.25" / 4.44 x 19.68 x 13.33cm

  • Weight

    2.2 lbs (0.99 kg)

About Magenta Research VG-RX2-MM-SRxHDMI-ISA

Become a master of digital media connectivity with the Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver, a sophisticated and high-quality solution for professional audio and video applications. This advanced receiver is designed to seamlessly convert fiber signals to HDMI, ensuring compatibility with a wide array of devices including computers, cameras, and other video sources.

The VG-RX2-MM-SRxHDMI-ISA boasts HDCP support, allowing for the transmission of HDCP-protected video content, ensuring your media is securely and reliably delivered. With the capability to handle 1920 x 1200 uncompressed video signals, this receiver ensures crystal-clear image quality for the most demanding visual presentations. The impressive reach of up to 6,600 feet over multimode fiber extends your connectivity options, making it ideal for large venues and complex setups.

Included with each unit is a multimode fiber-optic module, streamlining the installation process and providing immediate out-of-the-box functionality. The receiver's daisy-chaining capability allows for the connection of up to 10 (or more, depending on fiber type and distance) Voyager receivers, further enhancing the scalability of your media network.

The innovative ISA module within this receiver not only receives analog audio but also offers the flexibility to embed it with video, outputting through a single HDMI connector for a streamlined audiovisual experience. Additionally, the receiver can de-embed HDMI audio, providing it separately via analog audio output, catering to a variety of professional audio requirements.

Equipped with 29 pre-stored video resolutions and one user-configurable option, the VG-RX2-MM-SRxHDMI-ISA ensures your display's optimal resolution is met with precision. The receiver's intelligent EDID management automatically configures to output the connected screen's preferred resolution, simplifying setup and ensuring the best possible viewing experience.

The Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver is not only a testament to innovative design but also a professional-grade tool that delivers unparalleled audio and video quality, making it the preferred choice for industry professionals in video conferencing, live events, and other high-stakes environments where performance and reliability are paramount.

Magenta Research VG-RX2-MM-SRxHDMI-ISA Features

  • Transmission over multimode fiber
  • SRx-HDMI module scales video to one of 30 different resolutions
  • 2-port (VG-RX2) functionality
  • Uncompressed multi-format video at 1920 x 1200
  • Multi-format audio & RS-232
  • Daisy-chain capability with full bi-directional signal support
  • Advanced EDID management and HDCP compliance
  • Host of audio options for de-embedding HDMI audio or embedding analog audio into the HDMI stream

Key Features

  • Achieve high-resolution video output up to 1080p with this HDMI scaling receiver.
  • Enjoy stable connection via fiber optic SFP module for reliable video format conversion.
  • This video converter supports HDMI 1.3b and HDCP 1.1 for secure content delivery.
  • Easily manage audio with embedded HDMI-audio support, enhancing your viewing experience.
  • Use the RS232 serial interface for seamless integration and control of your video system.
  • Benefit from real-time video conversion with a 2-port HDMI output for flexible display options.

What's in the box:

  • Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver with HDCP
  • Multimode Fiber Optic SFP Module
  • Power Supply
  • Magenta Research 3 Year Limited Warranty
