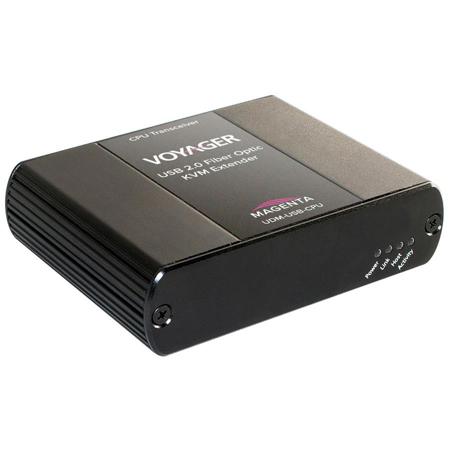

Magenta Research Voyager Singlemode USB 2.0 Fiber Optic KVM Extender
See all Magenta Research items

Magenta Research Voyager Singlemode USB 2.0 Fiber Optic KVM Extender

SKU: MV2350500SM MFR: 2350500-SM
Be the first to review this itemAsk a Question
$1,923.00
OR
$161/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your KVM setup with this USB 2.0 Fiber Optic KVM Extender, reaching up to 10km!
  • Experience seamless control with this KVM extender, supporting up to 14 USB devices.
  • Enjoy rapid data transfer with speeds up to 480 Mbps using this high-performance KVM.
  • This KVM cable supports Voyager VG Matrix Routers for enhanced compatibility and use.
  • Get reliable power with the included AC adapter, ensuring stable KVM operation always.
  • Durable aluminum enclosure protects your KVM transceiver, offering long-lasting use.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Magenta Research KVM Extender Specifications

  • Compatibility

    Voyager VG Matrix Routers: VG-160 and VG-48

  • Range

    Up to 500m (1640 feet) over OM2 or greater
    Up to 275m (902 ft) over OM1
    Up to 10Km (6.2 miles) over OS1 (single mode SFPs required)

  • Speeds USB 2.0

    Up to 480 Mbps; USB 1.1: Up to 12 Mbps

  • USB Hub Support

    Any single chain can include up to 3 USB hubs plus one Voyager USB
    USB Host Support xHCI (USB 3.0) at USB 2.0 speed, EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
    Maximum USB devices supported 14 USB devices or 3 USB hubs with 11 USB devices.

  • AC Adapter Input

    100/240 V AC, 50 - 60 Hz, 600mA maximum; Output: 5 V DC, 3 A
    AC Adapter Connector 1.7 mm centre-positive jack

  • CPU Transceiver: USB Connector

    USB Type B Receptacle

  • CPU Transceiver: Link Connector

    SFP Duplex LC

  • CPU Transceiver: Enclosure Material

    Black Anodized Aluminum

  • REMOTE Transceiver: USB Connector

    4x USB Type A Receptacles

  • REMOTE Transceiver: Link Connector

    SFP Duplex LC

  • REMOTE Transceiver: Enclosure Material

    Black Anodized Aluminum

  • REMOTE Transceiver: Available Current

    500 mA to each USB port

  • Operating temperature range

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage temperature range

    -20 to 70 deg. C / -4 to 158 deg. F

  • Operating Humidity

    20% to 80% relative humidity, non-condensing

  • Storage Humidity

    10% to 90% relative humidity, non-condensing

  • Compliance

    EMC FCC (Class B), IC (Class B), CE (Class B)
    Environmental RoHS2 (CE)

  • Support

    Voyager Matrix CPU and REMOTE Transceivers require Simplex I/O cards when integrated with VG-Matrix

  • Dimensions

    CPU Transceiver: 100 x 76 x 26mm / 3.94 x 2.99 x 1.02"
    REMOTE Transceiver: 100 x 76 x 26mm / 3.94 x 2.99 x 1.02"

About Magenta Research KVM Extender

The Voyager USB 2.0 Fiber Optic KVM extender enables users to extend beyond the standard 5m cable limit for USB peripheral devices. With the Voyager USB 2.0 Fiber Optic KVM extender, USB devices can be located up to 500 meters from the computer. The Voyager USB 2.0 Fiber Optic KVM extender is composed of two individual units: the CPU Transceiver (UDM-USB-CPU) and the REMOTE Transceiver (UDM-USB-REM) They can also be ordered as a pair (UDM-USB-KIT). The Voyager USB 2.0 Fiber Optic KVM extender includes the Voyager USB suite of features:

• Supports USB 2.0 throughputs of up to 480Mbps
• Supplies 500mA to each USB port concurrently
• Integrated hub provides ports for four USB devices, use hubs to add more
• Electrical isolation
• Reliable operation with USB 2.0 and 1.1 devices and hubs
• Transparent USB extension
• True plug and play; no software drivers required
• Works with all major operating systems: Windows, Mac OS X and Linux

Applications
• Medical
• Sensor/data acquisition
• Keyboard and mouse extension
• Industrial Control

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your KVM setup with this USB 2.0 Fiber Optic KVM Extender, reaching up to 10km!
  • Experience seamless control with this KVM extender, supporting up to 14 USB devices.
  • Enjoy rapid data transfer with speeds up to 480 Mbps using this high-performance KVM.
  • This KVM cable supports Voyager VG Matrix Routers for enhanced compatibility and use.
  • Get reliable power with the included AC adapter, ensuring stable KVM operation always.
  • Durable aluminum enclosure protects your KVM transceiver, offering long-lasting use.

What's in the box:

  • Magenta Research CPU Transceiver
  • Remote 4 Port Hub Transceiver
  • 2x Singlemode Fibre OPtic SFP Module
  • Power Supply Unit
  • USB A to B Cable
  • Magenta Research 2 Year Warranty
