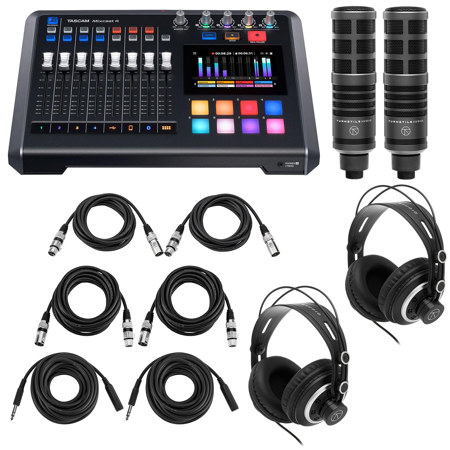

PACKAGE INCLUDES:
Qty: 2
Qty: 2
Note: 1 or more items are unavailable for immediate shipping
See Options
2 Year
$119.99
3 Year
$154.99
5 Year
$269.99
Need help? Ask our experts.
Review Summary
2024-05-14T15:54:49
Solid Mixer/Interface. I use it for live streaming and never had any issues. - It has a great combination of inputs - 1/4 inch monitor outs - USB connection is fast - I'm able to use high capacity/high speed memory cards - Pad functions are great - Responsive touchscreen I'm giving 3 stars because the only Mic effect is reverb. As a DJ and podcaster, I would be nice if they would at least include delay/echo to the available line effects. Then it would be perfect. I've reached out to Tascam but they said there is no plan for such update.
Eddie C.
2022-01-17T07:30:20
2nd unit. First one had a dead USB interface. This one works perfect. New firmware is coming out soon with more features.
Richard W.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
SD cards (64 MB to 2 GB)
SDHC cards (4 GB to 32 GB)
SDXC cards (48 GB to 512 GB)
WAV (BWF): 48 kHz, 24 bit, 2 ch Stereo/14 ch poly
14 tracks (12 track + 2-mix)
Connectors: XLR/TRS combo jacks
XLR: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS: 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum Input Level: +10 dBu (level min)
Nominal Input Level: - 10 dBu (level min)
Minimum Input Level: -76.5 dBu (level max)
Gain Range: 66.5 dB
Input Impedance: 2.1 k Ohm
Connector: 1/8" (3.5mm) 4-pole mini jack
Maximum Input Level: +4 dBV (level min)
Nominal Input Level: -16 dBV (level min)
Minimum Input Level: -82.5 dBV (level max)
Gain range: 66.5 dB
Input impedance: 2 k Ohm
Connector: 1/8" (3.5mm) 4-pole mini jack
Maximum input level: +8 dBV
Nominal input level: -12 dBV
Input impedance: 12 k Ohm
Connectors: 1/4" (6.3mm) standard TRS jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +24 dBu
Nominal input level: +4 dBu
Input impedance: 11 k Ohm
Connectors: 1/4" (6.3mm) standard stereo jacks
Maximum output: 45 mW + 45 mW (0.1% THD+N or less, into 32 Ohm load)
Connector: 1/8" (3.5mm) 4-pole mini jack
Phones (TRRS) 1 output splits from PHONES 1 output
Connector: 1/8" (3.5mm) 4-pole mini jack
Maximum output level: -25 dBu
Nominal output level: -45 dBu
Output impedance: 100 Ohm
Connectors: 1/4" (6.3mm) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +20 dBu
Nominal output level: +0 dBu
Output impedance: 200 Ohm
Connector: 1/8" (3.5mm) stereo mini jack
Maximum output level: +6 dBV
Nominal output level: -14 dBV
Output impedance: 200 Ohm
Connector: USB Type-C
Formats: USB2.0 High Speed
USB Audio Class 2.0
USB Mass Storage Class
-125 dBu or less (150 Ohm termination, LEVEL at max.)
Mic input jacks (1-4)
20 Hz - 20 kHz: +0.3 dB/-0.3 dB (JEITA)
101 dB ( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)
0.003%
(Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)
95 dB or more
Note: Measurement conditions conform to JEITA CP-2905B
Recording format: 24-bit/48kHz WAV
14 ch: 0:35 (4 GB) / 1:10 (8 GB)
2 ch: 4:07 (4 GB) / 8:15 (8 GB)
Output class: 2 (about 10m unobstructed transmission distance)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
Supported A2DP content protection: SCMS-T
Supported operating systems: Windows 10 64-Bit
Computer hardware requirements: Windows computer with a USB 2.0 (or higher)
Supported operating systems: macOS Big Sur (11)
macOS Catalina (10.15)
Computer hardware requirements: Mac with a USB 2.0 (or higher)
iOS 14/iPadOS 14
iOS 13/iPadOS 13
Android 10
Android 11
14.7 x 2.22 x 10.37" (374.8 x 56.5 x 263.6mm) (Excluding Protrusions)
14.7 x 2.8 x 10.5" (374.8 x 71.2 x 266.7mm) (Including Protrusions)
5.62 lbs (2.55kg)
Dedicated AC adapter (PS-P1220E NUT), DC 12 V
12.5 W (maximum)
32 - 104 Degree F (0 - 40 Degree C)
192223218864, 192223132252, 192223075474, 192223075481, 192223199651, 192223199606, 043774034918
Great for on air too
By Richard W.
2nd unit. First one had a dead USB interface. This one works perfect. New firmware is coming out soon with more features.
Because the Mixcast 4 Podcast Station is designed to streamline your audio creation process, it's the perfect tool for professional content creation. Whether you're producing podcasts, live streaming, orchestrating event production, or providing voice overs, the Mixcast 4 effortlessly blends and records mic inputs, internal sounds, and music via the trigger pads. It also accommodates external audio input from your phone or PC, making it a versatile addition to any audio setup.
In conjunction with the TASCAM Podcast Editor software, the Mixcast 4 provides a comprehensive solution for your audio needs. From waveform editing to sound pad control, this bundle guides you from pre-production to completion with ease.
The Mixcast 4 is more than just a podcast station; it's a one-stop workstation that simplifies the recording and mixing of sound sources. It eliminates the need for complicated settings and provides all the audio-related operations and workflow required for live-streaming, events, podcasts, and more.
The included TASCAM Podcast Editor software enhances your ability to assign content and sound effects to the internal touchpads. It also facilitates smooth remote track arming, effects assignment, and audio editing, all without the need for expert knowledge or complex procedures.
Equipped with four mic inputs and four individual headphone outputs, the Mixcast 4 is always production-ready. Its auto-mixing function automatically sets mic priority, ensuring a perfect mix without any troublesome configuration. The 5-inch color touch screen offers quick and intuitive access to desired menu control settings, making it a user-friendly choice for all your audio needs.
From audio recording to mixing, the Mixcast 4 is a one-stop solution with a variety of convenient functions. These include 14-track multi-track recording direct to the unit's SD card, Bluetooth connectivity, an AUX IN (3.5mm) connection for easy mixing and recording of phone conversations/sound sources, and PC connectivity for importing sounds from a computer.
The Mixcast 4 also comes with fully customizable sound pads. These allow for easy and on-time voice effects such as voice transformation, reverb, and more. This feature enhances your live-streams and recordings, making them more interesting and engaging.
The TASCAM Podcast Editor, designed specifically for the Mixcast 4, offers simple and practical editing of audio content. It also provides easy configuration and assignment of sound effects and background music to the sound pads. With intuitive graphics, the TASCAM Podcast Editor helps users record audio easily using the Mixcast 4, creating a total production environment.
