Tascam Mixcast 4 Podcast Station, Bundle with 2x Turnstile Audio TAP500 Broadcast Mic ,2x Behringer HPS3000 Headphones, 2x H&A 10' Value Series Mic Cable, 2x 15' Value Series Mic Cable, 2x Interconnect Cable

SKU: MX42MICTP500 MFR: MIXCAST 4 TP500
Earn VIP Reward Points

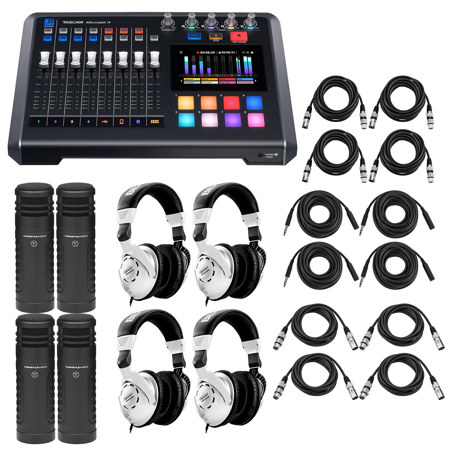

PACKAGE INCLUDES:

  • Tascam Mixcast 4 Podcast Station
    Tascam Mixcast 4 Podcast Station
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 10'
    H&A Value Series XLR M to F Professional Microphone Cable - 10'

    Qty: 2

  • +
  • Turnstile Audio Platform TAP500 Hyper-Cardioid Dynamic Broadcast Microphone
    Turnstile Audio Platform TAP500 Hyper-Cardioid Dynamic Broadcast Microphone

    Qty: 2

  • +
  • 3 more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Create pro podcasts with the Mixcast 4's pristine sound quality and versatile mixer.
  • Record up to 14 tracks simultaneously, perfect for complex podcasting and radio shows.
  • Enjoy seamless USB interface connectivity for easy recording and streaming to your PC/Mac.
  • Utilize the intuitive EQ control to fine-tune your audio for a polished, professional sound.
  • Minimize distractions using the low noise circuitry, ensuring clear and crisp recordings every time.
  • Rely on the durable design of this Tascam mixer, built to withstand the demands of live use.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-05-14T15:54:49

Rated 3 out of 5

Almost checks all boxes

Solid Mixer/Interface. I use it for live streaming and never had any issues. - It has a great combination of inputs - 1/4 inch monitor outs - USB connection is fast - I'm able to use high capacity/high speed memory cards - Pad functions are great - Responsive touchscreen I'm giving 3 stars because the only Mic effect is reverb. As a DJ and podcaster, I would be nice if they would at least include delay/echo to the available line effects. Then it would be perfect. I've reached out to Tascam but they said there is no plan for such update.

Eddie C.

2022-01-17T07:30:20

Rated 5 out of 5

Great for on air too

2nd unit. First one had a dead USB interface. This one works perfect. New firmware is coming out soon with more features.

Richard W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam Mixcast 4 Specifications

Recorder

Recorder

Jump to...
  • Recording media

    SD cards (64 MB to 2 GB)
    SDHC cards (4 GB to 32 GB)
    SDXC cards (48 GB to 512 GB)

  • Recording/playback formats

    WAV (BWF): 48 kHz, 24 bit, 2 ch Stereo/14 ch poly

  • Max. Recordable tracks

    14 tracks (12 track + 2-mix)

Analog Audio Input Ratings

Jump to...
  • Mic Input jacks (1-4)

    Connectors: XLR/TRS combo jacks
    XLR: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
    TRS: 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
    Maximum Input Level: +10 dBu (level min)
    Nominal Input Level: - 10 dBu (level min)
    Minimum Input Level: -76.5 dBu (level max)
    Gain Range: 66.5 dB
    Input Impedance: 2.1 k Ohm

  • Phones (TRRS) 1 jack (CTIA standard)

    Connector: 1/8" (3.5mm) 4-pole mini jack
    Maximum Input Level: +4 dBV (level min)
    Nominal Input Level: -16 dBV (level min)
    Minimum Input Level: -82.5 dBV (level max)
    Gain range: 66.5 dB
    Input impedance: 2 k Ohm

  • Line In (TRRS) jack (CTIA standard)

    Connector: 1/8" (3.5mm) 4-pole mini jack
    Maximum input level: +8 dBV
    Nominal input level: -12 dBV
    Input impedance: 12 k Ohm

  • Line In L/R (balanced) jacks

    Connectors: 1/4" (6.3mm) standard TRS jacks
    (Tip: HOT, Ring: COLD, Sleeve: GND)
    Maximum input level: +24 dBu
    Nominal input level: +4 dBu
    Input impedance: 11 k Ohm

Analog Audio Output Ratings

Jump to...
  • Phones jacks (1-4)

    Connectors: 1/4" (6.3mm) standard stereo jacks
    Maximum output: 45 mW + 45 mW (0.1% THD+N or less, into 32 Ohm load)

  • Phones (TRRS) 1 jack (CTIA standard)

    Connector: 1/8" (3.5mm) 4-pole mini jack
    Phones (TRRS) 1 output splits from PHONES 1 output

  • Line Out (TRRS) jack (CTIA standard)

    Connector: 1/8" (3.5mm) 4-pole mini jack
    Maximum output level: -25 dBu
    Nominal output level: -45 dBu
    Output impedance: 100 Ohm

  • Monitor Out L/R (balanced) jacks

    Connectors: 1/4" (6.3mm) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
    Maximum output level: +20 dBu
    Nominal output level: +0 dBu
    Output impedance: 200 Ohm

  • Line Out jack

    Connector: 1/8" (3.5mm) stereo mini jack
    Maximum output level: +6 dBV
    Nominal output level: -14 dBV
    Output impedance: 200 Ohm

Control Input/Output

Jump to...
  • USB port

    Connector: USB Type-C
    Formats: USB2.0 High Speed
    USB Audio Class 2.0
    USB Mass Storage Class

Audio Performance

Jump to...
  • Mic amp EIN (equivalent input noise)

    -125 dBu or less (150 Ohm termination, LEVEL at max.)

  • Frequency response

    Mic input jacks (1-4)
    20 Hz - 20 kHz: +0.3 dB/-0.3 dB (JEITA)

  • S/N ratio

    101 dB ( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)

  • Distortion

    0.003%
    (Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)

  • Crosstalk

    95 dB or more
    Note: Measurement conditions conform to JEITA CP-2905B

  • Recording times (in hours: minutes)

    Recording format: 24-bit/48kHz WAV
    14 ch: 0:35 (4 GB) / 1:10 (8 GB)
    2 ch: 4:07 (4 GB) / 8:15 (8 GB)

  • Bluetooth

    Output class: 2 (about 10m unobstructed transmission distance)
    Supported profile: A2DP
    Supported A2DP codecs: SBC, AAC
    Supported A2DP content protection: SCMS-T

Computer System Requirements

Jump to...
  • Windows

    Supported operating systems: Windows 10 64-Bit
    Computer hardware requirements: Windows computer with a USB 2.0 (or higher)

  • Mac

    Supported operating systems: macOS Big Sur (11)
    macOS Catalina (10.15)

    Computer hardware requirements: Mac with a USB 2.0 (or higher)

  • iOS/iPadOS devices

    iOS 14/iPadOS 14
    iOS 13/iPadOS 13

  • Android devices

    Android 10
    Android 11

Physical

Jump to...
  • Dimensions (W x H x D)

    14.7 x 2.22 x 10.37" (374.8 x 56.5 x 263.6mm) (Excluding Protrusions)
    14.7 x 2.8 x 10.5" (374.8 x 71.2 x 266.7mm) (Including Protrusions)

  • Weight

    5.62 lbs (2.55kg)

  • Power

    Dedicated AC adapter (PS-P1220E NUT), DC 12 V

  • Power consumption

    12.5 W (maximum)

  • Operating temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • UPC Codes

    192223218871, 689076359665, 192223132252, 192223075474, 192223075481, 192223199644, 043774034918

About Tascam Mixcast 4

FEATURED REVIEWS

Great for on air too

By Richard W.

2nd unit. First one had a dead USB interface. This one works perfect. New firmware is coming out soon with more features.

Audio Creation Made Easy
Mixcast 4 makes professional content creation easy. For Podcast creation, live streaming, event production, or voice over, Mixcast 4 will mix and record mic inputs, internal sounds and music via the trigger pads, and external audio input from your phone or PC. Together with the TASCAM Podcast Editor software, a complete solution - including both waveform editing and sound pad control - is provided from pre-production to completion.

Improve Your Production Workflow and Inspiration
The Mixcast 4 is a one-stop workstation that allows for the recording and mixing of sound sources without complicated settings. It provides all audio-related operation and workflow needed for live-streaming, events, podcasts, and other applications. The bundled TASCAM Podcast Editor software will expand the ability to assign content and sound effects to the internal touchpads, and will allow for smooth and easy remote track arming, effects assignment, audio editing and more without the need for expertise and complexity.

Stress-free Touch Panel Control
Equipped with 4 mic inputs and 4 individual headphone outputs, the Mixcast 4 is always ready for production thanks to the installed auto-mixing function that will automatically set mic priority with no troublesome configuration for a perfect mix. The Mixcast 4 also showcases a 5-inch color touch screen that provides quick and intuitive access to desired menu control settings.

One-stop Workstation With a Variety of Functions
From audio recording to the mixing of recorded audio, the Mixcast 4 offers a one-stop solution with multiple convenient functions such as 14-track multi-track recording direct to the unit's SD card, Bluetooth, an AUX IN (3.5mm) connection to easily mix and record phone conversations/sound sources, and PC connectivity that allows the unit to import sounds from a computer.

Enhance content with real-time sound effects
The Mixcast 4 comes with fully customizable sound pads. In addition to preset sound effects, users can flexibly assign new sounds or even pre-recorded mic sounds that have been recorded on the unit. The Mixcast 4 sound pads also allow for easy and on-time voice effects such as voice transformation, reverb, and more to make live-streams and recordings even more interesting and fun.

Bundled with TASCAM Podcast Editor dedicated software
The TASCAM Podcast Editor offers simple and practical editing of audio content, track arming, as well as easy configuration and assignment of sound effects and background music to the sound pads.

There's no need for expert knowledge on DAW software as the TASCAM Podcast Editor also offers intuitive graphics that will help users record audio easily using the Mixcast 4. TASCAM Podcast Editor is designed specifically for Mixcast 4, and seamlessly integrates together for a total production environment.

Tascam Mixcast 4 Features

  • Easy and intuitive control using the 5" touch panel
  • Versatile mixer for podcast productions of up to 4 people
  • Direct multi-track recording to SD card (up to 14 tracks)
  • Bluetooth connection allows mixing and recording phone calls wirelessly with mix minus
  • 14-in/2-out USB audio interface mode
  • Bundled with a dedicated TASCAM Podcast Editor to cover the entire system workflow
  • 4 Mic Inputs - TRS/XLR combo jacks
  • 4 headphone outputs with independent volume control
  • Stereo Line IN (selectable between TRS and 3.5mm TRRS)
  • 8 sound pads x 8 Banks
  • Main Monitor Out (TRS) and Stereo Line Out (3.5mm)
  • 3.5mm TRRS headphone out (Mirror output of headphone 1)
  • Noise-free DC powered IN with screw lock

Product Documents

User Manual

Key Features

  • Create pro podcasts with the Mixcast 4's pristine sound quality and versatile mixer.
  • Record up to 14 tracks simultaneously, perfect for complex podcasting and radio shows.
  • Enjoy seamless USB interface connectivity for easy recording and streaming to your PC/Mac.
  • Utilize the intuitive EQ control to fine-tune your audio for a polished, professional sound.
  • Minimize distractions using the low noise circuitry, ensuring clear and crisp recordings every time.
  • Rely on the durable design of this Tascam mixer, built to withstand the demands of live use.

What's in the box:

  • Tascam Mixcast 4 Podcast Station
  • AC Adapter (PS-1220E NUT)
  • USB Type-C to Type-C Cable
  • Owner's Manual
  • Tascam 1 Year Limited Warranty
  • Bundle Includes:
  • 2x Turnstile Audio TAP500 Broadcast Microphone
  • 2x Behringer HPS3000 Studio Headphones
  • 2x H&A Value Series 10' XLR M to F Professional Microphone Cable
  • 2x Value Series 15' XLR M to F Professional Microphone Cable
  • 2x Platinum Pro 25' TRS 1/4" M to 1/4" F Interconnect Cable
