PACKAGE INCLUDES:
Qty: 4
Qty: 4
Note: 1 or more items are unavailable for immediate shipping
See Options
2 Year
$119.99
3 Year
$154.99
5 Year
$269.99
Need help? Ask our experts.
Review Summary
2024-05-14T15:54:49
Solid Mixer/Interface. I use it for live streaming and never had any issues. - It has a great combination of inputs - 1/4 inch monitor outs - USB connection is fast - I'm able to use high capacity/high speed memory cards - Pad functions are great - Responsive touchscreen I'm giving 3 stars because the only Mic effect is reverb. As a DJ and podcaster, I would be nice if they would at least include delay/echo to the available line effects. Then it would be perfect. I've reached out to Tascam but they said there is no plan for such update.
Eddie C.
2022-01-17T07:30:20
2nd unit. First one had a dead USB interface. This one works perfect. New firmware is coming out soon with more features.
Richard W.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
SD cards (64 MB to 2 GB)
SDHC cards (4 GB to 32 GB)
SDXC cards (48 GB to 512 GB)
WAV (BWF): 48 kHz, 24 bit, 2 ch Stereo/14 ch poly
14 tracks (12 track + 2-mix)
Connectors: XLR/TRS combo jacks
XLR: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS: 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum Input Level: +10 dBu (level min)
Nominal Input Level: - 10 dBu (level min)
Minimum Input Level: -76.5 dBu (level max)
Gain Range: 66.5 dB
Input Impedance: 2.1 k Ohm
Connector: 1/8" (3.5mm) 4-pole mini jack
Maximum Input Level: +4 dBV (level min)
Nominal Input Level: -16 dBV (level min)
Minimum Input Level: -82.5 dBV (level max)
Gain range: 66.5 dB
Input impedance: 2 k Ohm
Connector: 1/8" (3.5mm) 4-pole mini jack
Maximum input level: +8 dBV
Nominal input level: -12 dBV
Input impedance: 12 k Ohm
Connectors: 1/4" (6.3mm) standard TRS jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +24 dBu
Nominal input level: +4 dBu
Input impedance: 11 k Ohm
Connectors: 1/4" (6.3mm) standard stereo jacks
Maximum output: 45 mW + 45 mW (0.1% THD+N or less, into 32 Ohm load)
Connector: 1/8" (3.5mm) 4-pole mini jack
Phones (TRRS) 1 output splits from PHONES 1 output
Connector: 1/8" (3.5mm) 4-pole mini jack
Maximum output level: -25 dBu
Nominal output level: -45 dBu
Output impedance: 100 Ohm
Connectors: 1/4" (6.3mm) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +20 dBu
Nominal output level: +0 dBu
Output impedance: 200 Ohm
Connector: 1/8" (3.5mm) stereo mini jack
Maximum output level: +6 dBV
Nominal output level: -14 dBV
Output impedance: 200 Ohm
Connector: USB Type-C
Formats: USB2.0 High Speed
USB Audio Class 2.0
USB Mass Storage Class
-125 dBu or less (150 Ohm termination, LEVEL at max.)
Mic input jacks (1-4)
20 Hz - 20 kHz: +0.3 dB/-0.3 dB (JEITA)
101 dB ( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)
0.003%
(Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)
95 dB or more
Note: Measurement conditions conform to JEITA CP-2905B
Recording format: 24-bit/48kHz WAV
14 ch: 0:35 (4 GB) / 1:10 (8 GB)
2 ch: 4:07 (4 GB) / 8:15 (8 GB)
Output class: 2 (about 10m unobstructed transmission distance)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
Supported A2DP content protection: SCMS-T
Supported operating systems: Windows 10 64-Bit
Computer hardware requirements: Windows computer with a USB 2.0 (or higher)
Supported operating systems: macOS Big Sur (11)
macOS Catalina (10.15)
Computer hardware requirements: Mac with a USB 2.0 (or higher)
iOS 14/iPadOS 14
iOS 13/iPadOS 13
Android 10
Android 11
14.7 x 2.22 x 10.37" (374.8 x 56.5 x 263.6mm) (Excluding Protrusions)
14.7 x 2.8 x 10.5" (374.8 x 71.2 x 266.7mm) (Including Protrusions)
5.62 lbs (2.55kg)
Dedicated AC adapter (PS-P1220E NUT), DC 12 V
12.5 W (maximum)
32 - 104 Degree F (0 - 40 Degree C)
192223218925, 689076359665, 192223132252, 192223075481, 659814790005, 192223199651, 043774034918
Great for on air too
By Richard W.
2nd unit. First one had a dead USB interface. This one works perfect. New firmware is coming out soon with more features.
Take your podcasting and broadcasting endeavors to the next level with the Tascam Mixcast 4 Podcast Station, a professional-grade, versatile, and comprehensive audio creation solution. Designed for creators who demand high-quality and advanced features, the Mixcast 4 simplifies the production process, whether you're involved in podcast creation, live streaming, event production, or voice-over work.
The Mixcast 4 effortlessly blends and records microphone inputs, internal sounds, and music via its intuitive trigger pads, as well as external audio input from your phone or PC. This seamless integration ensures that your content is rich and dynamic, capturing your audience's attention with ease. The inclusion of the TASCAM Podcast Editor software elevates your production capabilities, offering a complete solution that encompasses both waveform editing and sound pad control from pre-production to completion.
Improve your production workflow and spark inspiration with the Mixcast 4's user-friendly interface. This one-stop workstation eliminates the need for complicated settings, providing all the audio-related operations and workflows essential for live-streaming, events, and podcasts. The TASCAM Podcast Editor software enhances your creative potential, allowing you to assign content and sound effects to the internal touchpads effortlessly, ensuring smooth and easy remote track arming, effects assignment, and audio editing.
Experience stress-free touch panel control with the Mixcast 4's 5-inch color touchscreen, offering quick and intuitive access to menu settings. Equipped with four microphone inputs and four individual headphone outputs, the Mixcast 4 is always production-ready. Its auto-mixing function automatically sets microphone priority, ensuring a perfect mix without any troublesome configuration.
The Mixcast 4 is not just a mixer; it's a one-stop workstation with a variety of functions to streamline your audio recording and mixing tasks. It boasts 14-track multi-track recording directly to an SD card, Bluetooth connectivity, an AUX IN (3.5mm) connection for mixing and recording phone conversations or sound sources, and PC connectivity for importing sounds from a computer.
Enhance your content with real-time sound effects using the fully customizable sound pads of the Mixcast 4. Beyond preset sound effects, you can assign new sounds or pre-recorded microphone sounds. The sound pads also enable easy and timely voice effects, such as voice transformation and reverb, adding an engaging and fun element to your live streams and recordings.
Bundled with the dedicated TASCAM Podcast Editor software, the Mixcast 4 offers straightforward and practical audio content editing. With no need for expert knowledge of DAW software, the TASCAM Podcast Editor provides intuitive graphics that assist users in recording audio effortlessly using the Mixcast 4. Designed specifically for the Mixcast 4, the software integrates seamlessly for a total production environment.

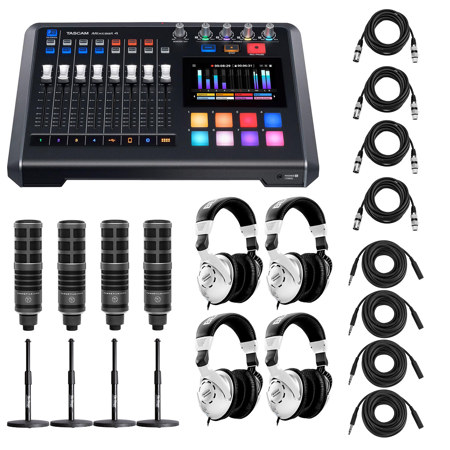

This bundle also includes four Turnstile Audio TAP300 Broadcast Microphones, delivering clear and professional audio capture for each speaker. The four On-Stage DS7200B Microphone Stands provide stable and adjustable support, ensuring your setup is both functional and aesthetically pleasing.
Elevate your audio production with the Tascam Mixcast 4 Podcast Station bundle, the ultimate tool for professional podcasters and broadcasters seeking a high-quality, advanced, and comprehensive audio solution.
