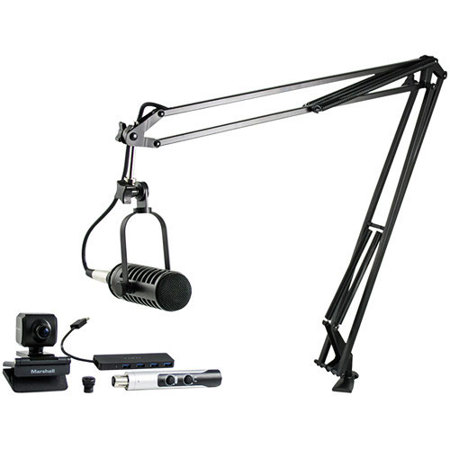

MXL VPS SOLO Visual Podcasting Station with BCD-1 Live Broadcast Dynamic Microphone and CV-502-U3 Camera

SKU: MXLVPSSOLO

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

MXL VPS SOLO Specifications

Additional Item Includes

Additional Item Includes

Jump to...
  • BCD-1 Live Broadcast Dynamic Microphone

    - WS002 Windscreen
    - Carrying Case

  • BCD-Stand

    - Articulating Arm Mount
    - Screw Mount
    - Clamp Mount
    - 12' XLR Cable

  • CV502-U3 Miniature USB 3.0 Camera

    - 2m Locking USB 3.0 Cable
    - CVM-5 Mounting Clip

  • Mic Mate Pro XLR to USB Adapter

    - 6' (1.8m) USB Cable

BCD-1 Live Broadcast Dynamic Microphone

Jump to...
  • Mic Type

    Dynamic

  • Frequency Response

    40 Hz - 15 kHz

  • Polar Pattern

    Cardioid

  • Sensitivity

    -54 dB re 1 V/Pa

  • Impedance

    600Ohms

BCD-Stand

Jump to...
  • Cable Length

    12' (3.66m)

CV502-U3 Miniature USB 3.0 Camera

Jump to...
  • Image Sensor

    1/3" Progressive CMOS (Approx. 2.1 Megapixel)

  • Scanning System

    16:9 Progressive

  • Sync. System

    Internal

  • Effective Pixel

    1920 (H) x 1080 (V)

  • Min. Illumination

    0.2 Lux (Day)

  • USB 3.0

    Available resolutions and frame-rates:
    1920x1080p at 60/59.94/50/30/29.97/25fps
    1920x1080i at 60/59.94/50fps
    1280x720p at 60/59.94/50/30/29.97/25fps

  • Lens

    2.3mm (126 deg. AOV) standard with ability to change M12 lens to custom Focal Length

  • Brightness

    0 to 20 (Default 10)

  • Contrast

    0 to 64 (Default 32)

  • Hue

    - 128 to 127 (Default 0)

  • Saturation

    0 to 20 (Default 15)

  • Sharpness

    0 to 20 (Default 10)

  • Gamma

    1 to 11 (Default 6)

  • White Balance

    Auto, 0 to 255 (Default 128 and Auto)

  • Backlight Compensation

    0 to 4 (Default 0)

  • Gain

    0 to 12 (Default 0)

  • Power Line Frequency

    50Hz/60Hz (Anti Flicker)

  • Zoom (Digital)

    0 t 255 (Default 0)

  • Exposure

    Auto, -13 to 3 (Default -7 and Auto)

  • Aperture (Iris)

    Auto, 0 to 170 (Default 100 and Auto)

  • Low Light Compensation

    On/Off

  • CPU

    i3 or higher

  • GPU

    Core speed of 1500MHz or higher

  • RAM

    4GB or higher

  • OS

    Windows 7 or higher

  • macOS

    X 10.8 or higher

  • Applications

    Custom Huddle Rooms
    Teleconferencing
    Web Conferences
    Studio Collaboration
    Video Meetings
    Unified Communications and Collaboration (UCC)
    Podcasting
    Web Streaming
    Gaming

  • Operation Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Power Input

    Over USB

Mic Mate Pro XLR to USB Adapter

Jump to...
  • Cable Length

    6' (1.83m)

  • Phantom Power

    48V

  • Headphone Jack

    1.8"

General

Jump to...
  • Dimensions

    BCD-1 Live Broadcast Dynamic Microphone: 157.5 x 50.8mm (6.20 x 2.00")
    CV502-U3 Miniature USB 3.0 Camera: 44 x 46.5 x 47.95mm (1.73 x 1.83 x 1.89") (without lens)

  • Weight

    BCD-1 Live Broadcast Dynamic Microphone: 1.25 lbs (0.57kg)
    CV502-U3 Miniature USB 3.0 Camera:
    Approx. 0.23 lbs (0.10kg) (without lens)
    0.24 lbs (0.11kg) (with lens)

About MXL VPS SOLO

The MXL Visual Podcasting (VPS) Bundles makes it easier than ever to incorporate high-definition video into live podcasts and web streams. The VPS Solo Bundle features a high-quality broadcast microphone, the MXL BCD-1, plus a USB-powered high-definition POV camera, the Marshall CV502-U3. Also included is an MXL Mic Mate Pro XLR-to-USB adapter, BCD-1 Mic Stand, an MXL USB Hub. The MXL VPS Bundles offer a high-quality, all-in-one solution for podcasters looking to take their live productions to the next level.

-- BCD-1 Live Broadcast Dynamic Microphone --
The MXL BCD-1 is an end address dynamic microphone with warm, rich tones designed to make vocals stand out in any performance or recording. The built-in swivel mount allows for perfect positioning when combined with the optional MXL BCD-Stand.

-- CV502-U3 Miniature POV Camera --

The Perfect UCC Camera
The Marshall CV502-U3 is a USB-powered, high-definition POV camera with an ultra-wide 126 deg. Angle-of-View lens, that offers simple plug-and-play connectivity with any Mac, PC or Linux system. It delivers sharp, vivid color images in resolutions up to 1920x1080p at up to 60 frames per second and is designed to be used for huddle rooms, streaming studios, collaboration spaces and any other professional corporate communications setting.

Using a high-performance 2.1 Megapixel 1/3" sensor, Marshall's CV502-U3 delivers stunning picture clarity with accurate colors. The CV502-U3 has the option of interchangeable lenses to fit any custom designed space or studio. Using industry standard USB Video Control (UVC 1.5) protocols, the CV502-U3 is able to self-adapt to the computer capabilities for optimal resolution and framerates. Additionally, common soft codecs or camera control software can be used to adjust for applications that require specific camera settings. The CV502-U3 comes with an adjustable, heavy-duty CVM-5 monitor mount clip and locking USB 3.0 Cable.

Wide Dynamic Range (WDR) Rivaled Only by the Human Eye
With built-in adaptive WDR, the CV502-U3 will automatically adjust to ambient lighting conditions within a setting. Much like the human eye, the CV502-U3 will compensate lights and darks to capture clear, sharp and vivid color video within a wide range of lighting conditions.

Say Goodbye to Grainy Low Light Video
With an incredibly low color Lux rating of 0.2, the CV502-U3 will produce accurate, sharp color images even under low-light conditions in poorly lit conference rooms, cubicle bays or huddle rooms.

Set it and Forget it!
The thumbscrew-locking USB 3.0 cable makes sure the connection is always secure. There'll be no dropped video feeds from any accidental unplugging and no tampering of cameras affixed at permanent installations. The heavy-duty monitor clip attaches easily to the top of monitors or it can be used as a mount to get any viewing angle desired.

Super Wide Stock 126 deg. Angle-Of-View Lens
The CV502-U3 comes stock with a super-wide 126 deg. (2.3mm) Angle-of-View lens, providing the best coverage of any USB camera on the market without any significant distortion. Additional lens options with different angles-of-view and focal lengths are also available so you can customize the CV502-U3 to fit any size room. You'll never have to worry about being able to get everyone in the frame again.

Plug-and-Play with UVC 1.5 Control
The UVC 1.5 control automatically syncs the CV502-U3 to optimal settings for any monitor or computer screen being used, adjusting for screen resolution, frame rate, brightness, color and bandwidth settings, so the picture is perfect every time.

-- Mic Mate Pro - XLR to USB Adapter --
This incredibly versatile and compact universal interface facilitates the connection of microphones directly to your computer via USB, effectively converting your existing microphone into a USB microphone. Instantly start recording without any special driver installations - simply plug-and-play! To further simplify use, the MXL Mic Mate Pro handles microphone gain and headphone volume adjustments with low profile rotary knobs, while the built-in headphone jack allows for zero-latency direct monitoring. Studio-quality computer recording is now within the reach of every aspiring musician and recording enthusiast.

MXL VPS SOLO Features

  • BCD-1 Live Broadcast Dynamic Microphone:
  • Dynamic broadcast mic that delivers a bright sound
  • Excellent side rejection that's great in a noisy room
  • Tuned grill that eliminates internal reflections
  • Built-in shockmount that prevents unwanted noise
  • Also excellent for recording vocals for music
  • BCD-Stand:
  • Makes microphone placement convenient
  • XLR microphone cable included
  • Fits all microphones
  • CV502-U3 Miniature USB 3.0 Camera:
  • Sharp, vivid color images up to 1920x1080p at speeds of 60/59.94/50 fps
  • Powered through USB 3.0 with easy plug-and-play connectivity with Mac or PC, with no driver downloads required
  • Interchangeable M12 lens option for custom-designed field-of-view capability
  • High-performance, 2.1 Megapixel 1/3" sensor
  • UVC 1.5 (USB Video Class) compliant for easy video control and adjustments via common computer, UCC and teleconference software platforms
  • Locking 2-meter (79") USB 3.0 cable with thumb-screw lock on camera
  • Durable design with smooth finish for professional installations
  • Color space 4:2:2 (YCbCr) 10 bit for clear vibrant color images
  • Ultra-wide 2.3mm M12 lens (126 deg. Horizontal AOV) Standard
  • Universal 1/4"-20 mount for limitless custom design mounting options
  • Ships with Marshall CVM-5 Monitor/Stand Mount
  • Mic Mate Pro - XLR to USB Adapter:
  • Great for overdubbing or playing along with music
  • Plug and record with your favorite software
  • Works with virtually all microphones
  • Supplies 48V phantom power
  • Studio-quality microphone preamp
  • Zero latency monitoring
  • 1/8" Stereo headphone jack
  • Fully balanced low-noise analog front-end
  • Gain and headphone controls
  • No special drivers required
  • 6' USB Cable included
  • 44.1kHz and 48.0kHz/16-bit
  • USB Powered
  • Less than 6 inches long
  • USB 1.1 and 2.0 Compatible
  • Free MXL USB Recorder Software for instant 2-Track recording

What's in the box:

  • MXL BCD-1 Live Broadcast Dynamic Microphone
  • BCD-Stand Articulated Boom Arm
  • Mic Mate Pro XLR to USB Adapter
  • CV502-U3 Miniature USB 3.0 Camera
  • CV-4706 6mm Interchangeable Lens (47 Degree Angle of View)
  • 4x1 USB Hub
  • MXL 2 Year Warranty on Camera
  • MXL 1 Year Warranty on Microphone/Boom Arm/Adapter
