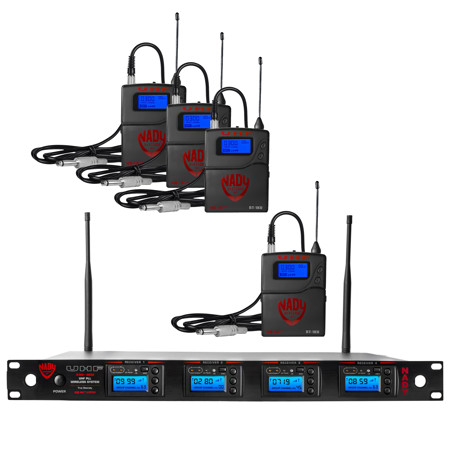

Nady 4W-1KU 1000-Channel UHF Quad Receiver Wireless System with 4x Instrument Cable

SKU: NA4W1KUGTNEU MFR: 4W-1KU-GT-NEUS
Earn VIP Reward Points

Key Features

  • Experience freedom with this Nady wireless instrument microphone system, perfect for guitar.
  • Achieve crystal-clear audio with a wide 30Hz-18kHz frequency response for your instrument.
  • Enjoy extended performance with 8-10 hours of battery life using the included AA batteries.
  • This wireless microphone system's 150-250 ft range offers stage mobility without dropouts.
  • The metal bodypack transmitter ensures durability, withstanding rigorous stage use easily.
  • Easily monitor levels on the LCD display, ensuring optimal audio performance every time.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Nady 4W-1KU Specifications

General

General

Jump to...
  • Operating Frequency Range

    Band 3 (U.S.): 520.000-544.975MHz

  • Freq. Synthesized

    (1000 channels switchable) 25kHz/step

  • PLL system frequency stability

    <0.005%

  • Frequency Response

    30Hz-18kHz +/-3dB

  • Dynamic Range

    120dB

  • Harmonic Distortion

    <0.5%

  • Modulation

    FM (F3E) +/-25kHz normal, +/-75kHz max

  • Operating Range

    150-250 feet typical, 500+feet max line-of-sight

W-1KU Receiver

Jump to...
  • Receiver System

    Dual conversion Super Heterodyne with True Diversity (two complete Receiver sections with optimum audio selected)

  • Selectivity

    60dB normal +/-75kHz offset

  • Image Rejection

    -70dB, minimum

  • Sensitivity

    -107dBm, normal

  • Spurious Rejection

    65dB, normal

  • Mute Threshold

    -65dBm to -95dBm (adjustable)

  • Controls

    UP/DOWN selects, SET, IR Sync, Power buttons, MUTE level

  • LCD Display

    Four backlight LCD panel indicating selected Group/Channel,received RF levels, A/B diversity, and unbalanced receiver out volume levels

  • LED Display

    5-segment LED tree indicating received audio levels from transmitter (single version only)

  • Audio Output Level

    Unbalanced output: 360mV adjustable audio output @ +/-25kHz deviation
    Balanced output: 24mV fixed level audio output @ +/-25kHz deviation

  • Output Impedance

    Balanced and unbalanced: 600 Ohm

  • Power Requirement

    16VDC/0.8A

  • Antennas

    Dual BNC right angle

  • Housing Construction

    Metal

  • Dimensions (W x D x H)

    19 x 11 x 1.75" (48.26 x 27.94 x 4.44cm)

  • Weight

    6.3 lbs (2.86kg)

BT-1KU Bodypack Transmitter

Jump to...
  • RF Output Power

    HI/LOW selectable HI: +14dBm (25mW typical), LOW: +4dBm (2.5mW typical)

  • Harmonic and Spurious Emission

    -50dBc normal

  • Audio Input Levels

    225mV (Instrument) +/-25kHz deviation

  • Input Impedance

    500 k Ohm (Instr.)

  • Controls

    Power OFF/MUTE/ON, RF Power HI/LOW switches, Set/Up/Down buttons

  • Input Connector

    Mini 3.5mm with locking nut

  • LCD Display

    Group/Channels/Volume/Battery Levels

  • Antenna Type

    External fixed

  • Housing Construction

    Metal

  • Battery Life

    8-10 Hours typical

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    8

  • Dimensions

    2.5 x 3.25 x 1.81" (6.35 x 8.3 x 1.82cm)

  • Weight

    Without Battery: 3.8 oz (107.72g)

  • UPC Code

    634343280197

About Nady 4W-1KU

It is essential for audio professionals to have equipment that delivers both versatility and exceptional sound quality. The Nady 4W-1KU 1000-Channel UHF Quad Receiver Wireless System with 4x Instrument Cable is a testament to this, offering a robust and high-quality solution for wireless audio transmission. This advanced system is engineered to provide crystal-clear, natural sound with a remarkable 120dB dynamic range, ensuring that every nuance of the performance is captured.

The 4W-1KU system boasts 1000 user-selectable UHF frequencies, meticulously frequency-synthesized into 10 groups of 100 channels within the US frequency band of 520MHz-544.9MHz. This extensive range of channels allows for interference-free operation, making it an ideal choice for live events, theater productions, and worship services where clarity and reliability are paramount.

The receiver's front panel features a backlit LCD display, offering at-a-glance monitoring of the audio output volume level, Group/Channel selection, RF signal strength, and A/B diversity status. Additionally, an audio LED bar graph display provides real-time audio level status, ensuring sound engineers can make adjustments quickly and efficiently from a distance.

For optimal connectivity, the back panel of the receiver includes balanced XLR Mic Level and unbalanced 1/4" line level audio output jacks, catering to a variety of professional audio setups. The system's True Diversity circuitry employs dual front ends to maximize range and safeguard against dropouts, giving performers and technicians peace of mind during critical moments.

The bodypack transmitters are designed with durability in mind, featuring a road-worthy all-metal case and a flexible external antenna rod. Each transmitter is equipped with a power Off/Mute/On switch and a mini locking connector, compatible with lapel microphones, guitars, basses, or keyboards - essentially any instrument with a 1/4" TRS line-level output.

The transmitters also include an LCD display that indicates the selected Group, Channel, Audio Input Levels, and Battery level status. A transmitting High/Low RF power switch allows for distance optimization based on the application, while operation with two AA batteries (alkaline or rechargeable NiMH) ensures long-lasting, economical battery life.

In summary, the Nady 4W-1KU system is a professional, durable, and reliable choice for those seeking advanced wireless audio solutions. With its rack-mount design, wide frequency range, and user-friendly features, it stands out as a superior option for professionals in any audio-centric industry.

Nady 4W-1KU Features

  • State-of-the-art PLL UHF performance with 120dB dynamic range and operation up to 500' line-of-sight
  • 1000 user-selectable UHF frequencies per band
  • True Diversity circuitry with two complete front ends for maximum range and dropout protection
  • ASC (Auto-Sync Channels) IR download feature sends selected Group/Channel information to Transmitter via IR senders on receivers for easy frequency synchronization
  • Front-panel touch control buttons and user-friendly LCD configuration menus
  • Sophisticated IF filtering for simultaneous operation of multiple W-1KU systems in the same location
  • Mute control (RF squelch)
  • RF BNC connectors for dual removable 1/2 wave antennas
  • DC power input jack
  • Externally powered (adapter included)
  • Rugged, all-metal housing

Product Documents

User Manual

Key Features

  • Experience freedom with this Nady wireless instrument microphone system, perfect for guitar.
  • Achieve crystal-clear audio with a wide 30Hz-18kHz frequency response for your instrument.
  • Enjoy extended performance with 8-10 hours of battery life using the included AA batteries.
  • This wireless microphone system's 150-250 ft range offers stage mobility without dropouts.
  • The metal bodypack transmitter ensures durability, withstanding rigorous stage use easily.
  • Easily monitor levels on the LCD display, ensuring optimal audio performance every time.

What's in the box:

  • 4W-1KU Receiver
  • 4x BT-1KU Bodypack Transmitter
  • DC Power Supply
  • 2x Antennas
  • 4x IC-U1K Cable
  • Rack Ears
  • 8x AA Alkaline Battery
  • Nady 1 Year Limited Warranty
