Nady 8W-1KU 1000-Channel UHF Octo Receiver Wireless System with 8x Instrument Cable

SKU: NA8W1KUGTNEU MFR: 8W-1KU-GT-NEUS
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless instrument microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range of up to 500+ feet, ideal for any stage size.
  • This instrument microphone system features low latency for seamless, real-time audio transmission.
  • Get 8-10 hours of battery life with the included AA batteries, ensuring your performance lasts all night.
  • Easily monitor your settings using the LCD display, showing group, channel, volume, and battery levels.
  • This durable wireless microphone system is built with metal housing, ensuring reliability for every gig.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Nady 8W-1KU Specifications

General

General

Jump to...
  • Operating Frequency Range

    Band 3 (U.S.): 520.000-544.975MHz

  • Freq. Synthesized

    (1000 channels switchable) 25kHz/step

  • PLL system frequency stability

    <0.005%

  • Frequency Response

    30Hz-18kHz +/-3dB

  • Dynamic Range

    120dB

  • Harmonic Distortion

    <0.5%

  • Modulation

    FM (F3E) +/-25kHz normal, +/-75kHz max

  • Operating Range

    150-250 feet typical, 500+feet max line-of-sight

W-1KU Receiver

Jump to...
  • Receiver System

    Dual conversion Super Heterodyne with True Diversity (two complete Receiver sections with optimum audio selected)

  • Selectivity

    60dB normal +/-75kHz offset

  • Image Rejection

    -70dB, minimum

  • Sensitivity

    -107dBm, normal

  • Spurious Rejection

    65dB, normal

  • Mute Threshold

    -65dBm to -95dBm (adjustable)

  • Controls

    UP/DOWN selects, SET, IR Sync, Power buttons, MUTE level

  • LCD Display

    Eight backlight LCD panel indicating selected Group/Channel,received RF levels, A/B diversity, and unbalanced receiver out volume levels

  • LED Display

    5-segment LED tree indicating received audio levels from transmitter (single version only)

  • Audio Output Level

    Unbalanced output: 360mV adjustable audio output @ +/-25kHz deviation
    Balanced output: 24mV fixed level audio output @ +/-25kHz deviation

  • Output Impedance

    Balanced and unbalanced: 600 Ohm

  • Power Requirement

    +12 VDC / 2500 mA

  • Antennas

    Dual BNC right angle

  • Housing Construction

    Metal

  • Dimensions (W x D x H)

    17 x 11.5 x 3.8" (43.2 x 29.2 x 9.5 cm)

  • Weight

    10.75 lbs (4.88kg)

BT-1KU Bodypack Transmitter

Jump to...
  • RF Output Power

    HI/LOW selectable HI: +14dBm (25mW typical), LOW: +4dBm (2.5mW typical)

  • Harmonic and Spurious Emission

    -50dBc normal

  • Audio Input Levels

    225mV (Instrument) +/-25kHz deviation

  • Input Impedance

    500 k Ohm (Instr.)

  • Controls

    Power OFF/MUTE/ON, RF Power HI/LOW switches, Set/Up/Down buttons

  • Input Connector

    Mini 3.5mm with locking nut

  • LCD Display

    Group/Channels/Volume/Battery Levels

  • Antenna Type

    External fixed

  • Housing Construction

    Metal

  • Battery Life

    8-10 Hours typical

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    16

  • Dimensions

    2.5 x 3.25 x 1.81" (6.35 x 8.3 x 1.82cm)

  • Weight

    Without Battery: 3.8 oz (107.72g)

  • UPC Code

    634343282474

About Nady 8W-1KU

1000 user-selectable UHF frequencies, a 120dB dynamic range, and 500' of line-of-site operation.
The Nady W-1KU Wireless System is a professional UHF wireless, offering clear-channel, frequency-agile operation on the UHF band for interference-free performance in any application or locale, and provides you great performance at a exceptional price point. The W-1KU wireless system offers 1000 user-selectable channels, frequency synthesized into 10 groups of 100 channels in the US frequency band 520MHz-544.9MHz. The Nady wireless system features proprietary companding and low-noise circuitry for an amazing 120dB dynamic range, and clear, natural sound available. The True Diversity circuitry has two complete front ends for maximum range and dropout protection.

Nady W-1KU Wireless Receiver
The W-1KU's receiver has a front-panel backlit LCD display to indicate selected audio output volume level, Group/Channel, RF signal strength meter, and A/B diversity status. A separate audio LED bar graph display provides instantaneous audio level status from a distance. The back panel offers balanced XLR Mic Level and unbalanced 1.4" line level audio output jacks.

• Front panel backlit LCD display indicates selected audio output volume level, Group/Channel, RF signal strength meter, A/B diversity status; separate audio LED bar graph display provides instantaneous audio level status from a distance
• Back-panel balanced XLR Mic Level and unbalanced 1.4" line level audio output jacks

Transmitter
Feature LCD displays indicating selected Group, Channel, Audio Input Levels, and Battery level status; transmitting High/Low RF power switch for optimizing distance operation depending on application; and operation with two AA Battery (alkaline or rechargeable NiMH) for longest reliable, economical battery life.

Bodypack Transmitter (BT-1KU)
Features road worthy all-metal case; power Off/Mute/On switch; flexible external antenna rod; and mini locking connector for lapel

Guitar/Bass or Keyboards - any 1/4" trs line-level instrument

Features
• Unsurpassed state-of-the-art PLL UHF performance with proprietary companding and low-noise circuitry for an amazing 120dB dynamic range. True Diversity circuitry for worry-free operation and dropout protection. Up to 500 feet transmission range
• 1000 selectable UHF channels for interference-free reception with AUTO-SCAN feature for easy location of clear channels and ASC (Auto-Sync Channel) infrared download for easy frequency synchronization
• Scratch resistant receiver with 5 segment LED bar graph AF meter, balanced XLR microphone level and unbalanced 1/4" line level audio outputs. Backlit LCD with user-friendly configuration menus indicating channel, channel group, volume, and RF signal strength
• All-metal body body pack Transmitter with IC-2U Guitar Cable. LCD display indicates group, channel, audio level, and Battery level status. Operation with two AA Battery

Nady 8W-1KU Features

  • State-of-the-art PLL UHF performance with 120dB dynamic range and operation up to 500' line-of-sight
  • 1000 user-selectable UHF frequencies per band
  • True Diversity circuitry with two complete front ends for maximum range and dropout protection
  • ASC (Auto-Sync Channels) IR download feature sends selected Group/Channel information to Transmitter via IR senders on receivers for easy frequency synchronization
  • Front-panel touch control buttons and user-friendly LCD configuration menus
  • Sophisticated IF filtering for simultaneous operation of multiple W-1KU systems in the same location
  • Mute control (RF squelch)
  • RF BNC connectors for dual removable 1/2 wave antennas
  • DC power input jack
  • Externally powered (adapter included)
  • Rugged, all-metal housing

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless instrument microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range of up to 500+ feet, ideal for any stage size.
  • This instrument microphone system features low latency for seamless, real-time audio transmission.
  • Get 8-10 hours of battery life with the included AA batteries, ensuring your performance lasts all night.
  • Easily monitor your settings using the LCD display, showing group, channel, volume, and battery levels.
  • This durable wireless microphone system is built with metal housing, ensuring reliability for every gig.

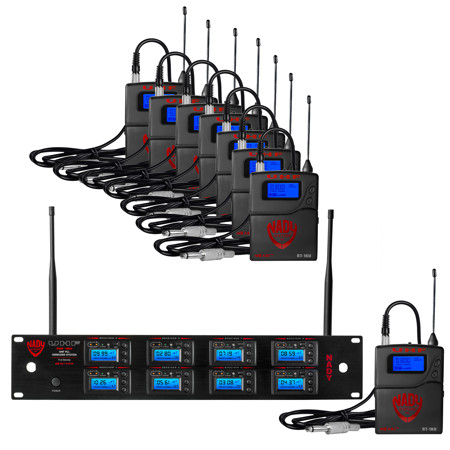

What's in the box:

  • 8W-1KU Receiver
  • 8x BT-1KU Bodypack Transmitter
  • DC Power Supply
  • 2x Antennas
  • 8x IC-U1K Cable
  • Rack Ears
  • 16x AA Alkaline Battery
  • Nady 1 Year Limited Warranty
