Nady ALD-800 Versatile VHF Wireless Assistive Listening System, Includes Transmitter, DC Adapter, 4 x Receivers and 4 x Earbuds, BB: 72.3MHz

SKU: NAALD800BB

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Nady ALD-800 Specifications

  • Frequency response

    100 Hz-15KHz +/- 3 dB

  • Signal-to-noise ratio

    60 dB

  • Total Harmonic Distortion

    < 0.5%

  • RF Carrier Frequency

    BB: 72.3MHz

  • Frequency stability

    Better than .005%

  • Modulation

    FM +/- 75 KHz max

  • Operating range

    Up to 300 feet line-of-sight

  • Transmitter: Mic Input

    Connector: 1/4" phone jack
    Impedance: low impedance, unbalanced, with 9V DC at 1 mA for condenser mic

  • Transmitter: Line Input

    Connector: 1/4" phone jack
    Impedance: 100 KOhms, unbalanced

  • Transmitter: Power Output

    80,000 uV at 3 meters

  • Transmitter: Controls

    Power on/off, audio input gain adjust

  • Transmitter: Indicators

    Power On LED, Audio Modulation LED

  • Transmitter: Antenna

    Permanently mounted telescoping whip

  • Transmitter: Power requirement

    9 VDC, regulated at 200 mA, adapter provided

  • Receiver: Controls

    Combination volume/on-off wheel

  • Receiver: Audio Output

    250 mW max into 16 ohms

  • Receiver: Connectors

    3.5 mm mini jack for earphone output

  • Receiver: Earphones

    Mini binaural earbuds

  • Receiver: Antenna

    Integral with earphone cord

  • Receiver: Sensitivity

    2 uV for 12 dB Sinad with squelch defeated
    Squelches at 10 uV for min. 50 dB S-N ratio

  • Receiver: Mute Threshold

    8-10 uV

  • Receiver: Power requirement

    9V alkaline

  • Dimensions (H x W x D)

    Transmitter: 1.25 x 8.25 x 4.25" / 3.17 x 20.95 x 10.79cm
    Receiver: 3.35 x 2.75 x 0.75" / 8.50 x 6.98 x 1.90cm

  • Weight

    Transmitter: 18.2oz (515.9g)
    Receiver: 2.65oz(75.12g) without battery

  • UPC Code

    634343064230

About Nady ALD-800

The Nady ALD-800 (BB: 72.3MHz) is a versatile VHF wireless assistive listening system that allows you to share an audio source with multiple listeners up to 300' away. It is ideal for museums, theaters, houses of worship, educational facilities and more. The system includes a base station transmitter and 4 beltpack receivers. The system can support an unlimited number of receivers (sold separately), allowing you to add as many listeners as you like. The system is pre-tuned to 1 of 8 channels designated for listening assistance by the FCC. This provides clear transmission and also allows you to set up multiple systems for different applications in the same vicinity.

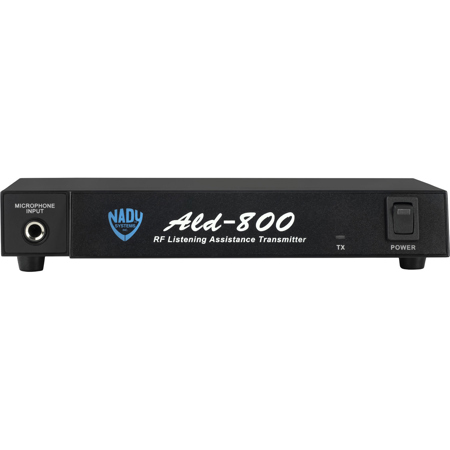

The transmitter has mic and line level 1/4" input connectors with manual input gain control. It also offers an automatic level control function. It has an extendable and positionable antenna and LED indicators to show when the unit is turned on and transmitting audio. The transmitter operates on DC power via the included wall adapter.

Each beltpack receiver is compact and lightweight. It can fit into a pocket or clip to clothing easily. The top panel offers a power/volume wheel with a power LED indicator. A standard 3.5mm headphone jack accommodates the included stereo earbuds, or most other consumer headphones. The receiver uses the headphone cable as the antenna to minimize bulk and weight. Each receiver operates on a single 9V battery.

Nady ALD-800 Features

  • VHF transmission provides a wireless range of up to 300'
  • Includes a base station transmitter and 4 beltpack receivers. The system can support an unlimited number of receivers (sold separately), allowing you to add as many listeners as you like
  • Transmitter: Compact base station design
  • Transmitter: Mic and line level 1/4" input connectors with a manual input gain control. An automatic level control function is also provided
  • Transmitter: Extendable and positionable antenna
  • Transmitter: LED indicators show when the unit is turned on and transmitting audio
  • Transmitter: Operates on DC power via the included wall adapter
  • Receiver: Compact and lightweight design fits easily into a pocket or clips to clothing
  • Receiver: Top panel offers an easy-to-use power/volume wheel with a power LED indicator
  • Receiver: The standard 3.5mm headphone jack accommodates the included stereo earbuds, or most other consumer headphones
  • Receiver: The receiver uses the headphone cable as the antenna to minimize bulk and weight
  • Receiver: Receiver: Operates on a single 9V battery

Key Features

  • VHF transmission for a wireless range of up to 300'
  • Transmitter: Compact base station design
  • Transmitter: Extendable and positionable antenna
  • Receiver: Receiver: Operates on a single 9V battery

What's in the box:

  • Nady ALD-800 Transmitter
  • DC Adapter
  • 4 x Receivers
  • 4 x Earbuds
  • Nady 1 Year Limited Warranty
