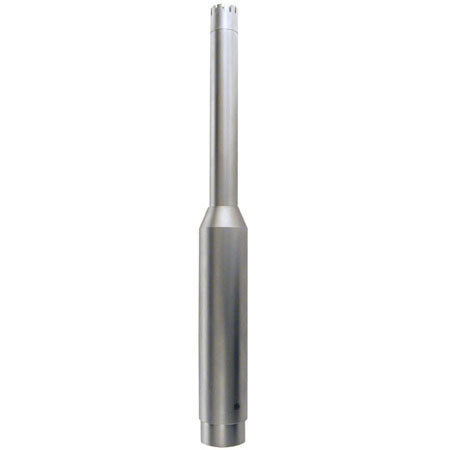

Nady CM-100 Reference Measurement Electret Condenser Wired Microphone

SKU: NACM100

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Nady CM-100 Specifications

  • Model

  • Focusing

  • Manual Focus

  • Autofocus

  • Zoom Scale

  • Aperature Range

  • Maximum Aperture

  • Minimum Aperture

  • Macro Magnification

  • Optical Construction

  • Angle of View

  • Minimum Focusing

  • Filter Size

  • Length

  • Maximum Diameter

  • Lens Coating

  • Weight

  • Other

  • Note

  • Camera Type

  • Film Format

  • Mount Type

  • Viewfinder

  • Shutter Release

  • Flash Sync

  • Self Timer

  • Exposure Control

  • Metering Range

  • Film Speed

  • Film Advance

  • Film Rewind

  • Power Source

  • Dimensions

  • Weight

  • Other

  • Note

  • Warranty

  • VCR: Amount of Heads

  • Program Timer Recording

  • Audio Type

  • Index Search

  • Tape Position Indicator

  • Auto Head Cleaner

  • Unit Format

  • Audio D/A Converter

  • Audio Decoder

  • Multi Brand Remote

  • System Type

  • Y,Pb,Pr Component Video Out

  • Progressive Component Out

  • DVD S-Video Output

  • Composite Video Out (RCA)

  • 2-Channel Audio Out

  • Front Audio/Video Input

  • Coaxial Outputs

  • A/V Output

  • Power

  • Dimensions

  • Weight

  • Color

  • Compatible Players

  • Rewritable

  • Double-sided

  • Recording Modes

  • Recording Time

  • Removable Cartridge

  • Data Capacity

  • XTRA Recording Mode

  • Fine Recording Mode

  • Standard Recording Mode

  • Closed Length

  • Maximum Height

  • Minimum Height

  • Maximum Width

  • Minimum Width

  • Weight

  • Footprint Diameter

  • Maximum Load

  • Attachment Size

  • Accepts Wheels

  • Air Cushioned

  • Frequency Response

  • Overall System Frequency Response

  • Dynamic Range

  • Harmonic Distortion

  • RF Carrier Frequency

  • Frequency Stability

  • Modulation

  • Operating Range

  • 151 VR Receiver Controls

  • 351 VR Receiver Controls

  • Audio output

  • Connectors

  • LED Indicators

  • Mute

  • Unwanted Signal Rejection

  • Power Requirements

  • Antenna

  • Audio Input

  • WLT-15 Lavalier Transmitter Audio Input

  • Controls

  • LED Indicators

  • RF Power Out

  • Harmonic and Spurious Emissions

  • Battery

  • Battery Life

  • WHT-15 Handheld Mic Transm. Audio Input

  • Controls

  • LED Indicators

  • RF Power Out

  • Harmonic and Spurious Emissions

  • Battery

  • Other

  • Transmitters: Audio Inputs

  • Controls

  • LED Indicator

  • RF Power Out

  • Harmonic & Spurious Emissions

  • Battery

  • Battery Life

  • Weight (w/o battery)

  • Receivers Controls:

  • LED Indicator

  • Dimensions (Max.)

  • Power Requirements

  • Link 2 Transmitter Type

  • Transmitter Input Connector

  • Microphone

  • RF Power Output

  • Battery Type/Approx. Life

  • Mute Switch

  • Level Control

  • Antenna Type

  • Display

  • Type

    Omni-directional electret condenser

  • Impedance

    600 ohms

  • Sensitivity

    -40dB (0dB = 1V/Pa)

  • Frequency response

    20Hz-20kHz

  • Current Consumption

    <2mA

  • Max. SPL

    >120dB SPL.

  • Connector

    Gold-plated XLR

  • Phantom power

    15-48V

  • Dimensions

    Diameter: .87" (22.22mm)
    Length: 7.5" (190mm)

  • Weight

    4 oz (120 grams)

  • UPC Code

    634343258073

About Nady CM-100

The Nady CM 100 ultra linear classic diaphragm electret condenser microphone is optimally designed for precise alignment applications such as room acoustics corrections. Perfect also for many recording uses, both instruments and vocals.

The CM 100 is supplied with a foam windscreen (FW-1/100). This windscreen fits over the grill portion of the microphone and is designed primarily to decrease bass rumble (from wind noise pickup) during outdoor live or recording use.

It is also useful in keeping mouth spray out of the microphone head. The FW-1 or other windscreen should be used whenever someone is close miked to both protect the microphone and to also eliminate popping sounds from percussive breath sounds.

The CM 100 can be used in live or studio alignment applicatoins or studio recording. It must be powered by 48V phantom power (such as supplied by the optional Nady SMPS-1 phantom power supply or a mixing console/alignment device equipped with phantom power), and amplified by a microphone pre-amp (such as built into amixer, or a stand-alone unit).

Nady CM-100 Features

  • True, symmetric omni-directional pattern, high sensitivity, minimal self-noise, increased dynamic range, high SPL capability, and extremely smooth, linear 15Hz to 20KHz frequency response provide ultimate precise measurements and transparent recordings
  • Perfect for use with realtime analyzers for precise, accurate room acoustics alignments
  • Especially suited for highly effective, detailed recording of acoustic guitars and vocals
  • Rugged construction, gold-plated XLR, and internal assembly shockmount for maximum reliability
  • Includes foam windscreen for outdoor applications and mic stand clip (including 5/8" to 3/8" adapter)

Key Features

  • Includes foam windscreen for outdoor applications and mic stand clip

What's in the box:

  • CM 100 microphone
  • Microphone clip
  • Foam windscreen
  • Instruction manual
  • Warranty card
  • SMCC-1 Foam padded plastic carrying case
