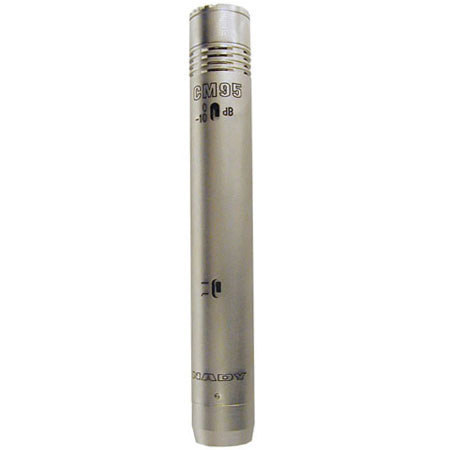

Nady CM-95 Small Diaphragm Wired Instrument Condenser Microphone with Low Cut & 10dB Pad Switches

The Nady CM 95 classic small diaphragm (20mm) condenser microphone. This superior microphone is perfect for recording and stage reinforcement of acoustic guitar, drum overheads, hi-hats, snares, piano and horns. Powerful and versatile, the CM 95 meets the stringent requirements of even the most demanding digital recording and live sound applications.

The CM 95 is supplied with a foam windscreen (FW-1/90). This windscreen fits over the grill portion of the microphone and is designed primarily to decrease bass rumble (from wind noise pickup) during outdoor live or recording use.

It is also useful in keeping mouth spray out of the microphone head. The FW-1 or other windscreen should be used whenever someone is close miked to both protect the microphone and to also eliminate popping sounds frompercussive breath sounds.

The CM 95 can be used in live sound reinforcement and broadcasting and in studioor live recording. It must be powered by 48V phantom power (such as supplied by the optional Nady SMPS-1 phantom power supply or a mixing console with phantom powering), and amplified by a microphone pre-amp (such as built into a mixer, or a stand-alone unit).

The CM 95 can be connected to your mixer or phantom power supply using a standard balanced 3-pin XLR microphone cable. Before connecting to a mixer directly, turn the channel to which you're connecting to its lowest gain setting.

CM 95 SPECIFICATIONS

Type: True condenser pressure-gradient mic with 0.79 inch (20mm) diaphragm and FET
Polar pattern: Cardioid
Controls: Low cutoff and ¨C10dB attenuation switches
Open circuit sensitivity: 14mV/Pa=-37dBV (0dBV=1V/Pa)
Frequency range: 40 to 20KHz
Rated output impedance: <200 Ohms
Recommended load impedance: -1000 Ohms
Max. SPL (1% THD @ 1000Hz): 131 dB
Equivalent noise level to DIN DIN 45405(CCIR 468-2): 28dB
Max. SPL (1% THD @ 1000Hz): 131 dB
Power requirement: +48 VDC phantom power
Equivalent noise level to DIN 45405(CCIR 468-2): 28 dB
IEC 268-4(A weighted): 19 dB-A
S/N ratio re 1 Pa: 75 dB
Current consumption: <3mA
Ambient temperature range: 14°F to 140°F (-10°C to +60°C)
Relative humidity range: 90%
(68°F, 20°C), 85% (140°F, 60°C)
Connector: 3-pin XLR (gold plated)
Phasing: Positive voltage on pin 2 relative to pin 3
Mic cable: 3-pin XLR standard cable (not supplied)
Size: Diameter 0.9" (22mm),
Length: 5.9" (150mm)
Net weight: 5 oz. (130g)
