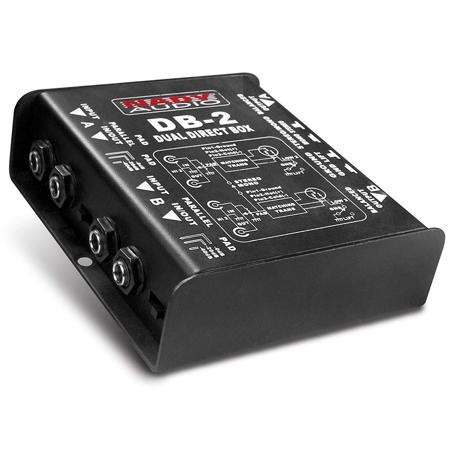

Nady DB-2 2-Channel Passive Direct Box
SKU: NADB2
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Nady DB-2
The Nady DB-2 allows the connection of any two unbalanced audio source signals (e.g., electric instruments, keyboards, unbalanced mics, stereo outputs or amp speaker outputs) to any two mic or line level balanced inputs (e.g., mixer). The DB-2 features two paralleled input/output jacks per channel that allow simultaneous connection to two separate inputs per channel or the ability to break into the signal path between instruments.
Nady DB-2 Features
- Dual channels allow the connection of any two unbalanced audio source signals (e.g., electric instruments, keyboards, unbalanced mics, stereo outputs, even amp speaker outputs) to any two mic or line level balanced inputs (e.g., mixer)
- Two paralleled input/output jacks per channel allow simultaneous connection to two separate inputs per channel or the ability to break into the signal path between instruments and amplifiers, or amps and speakers, by using one jack as the input and the other as the output
- Converts unbalanced DJ mixer signals to balanced mic or line level signals; enables simpler interface with consoles and longer cable runs
- Facilitates multiple keyboard setups plugged into both instrument amp and house console mixer
- Each channel's 3-position input attenuation switch (0dB, -20dB, -40dB) facilitates proper output signal levels for optimal level matching
- Features Stereo/Mono switch for splitting signal input to both balanced XLR outs
- Switchable ground lift eliminates hum problems
- Rugged, roadworthy all-steel construction for superb reliability
