20Hz - 20,000Hz +/-3dB
120dB (A-weighted)
<0.1%
3mSec (48 kHz Sample Rate)
Selected frequencies between 902 and 951MHz
+/- 20PPM, PLL controlled
Digital QPSK
Up to 300 ft. typical (depending on site conditions); optimum line-of- sight
External 7.25" (18.5cm) Antenna Attached (DW-22 - dual antennas)
-94dBm
Power ON/OFF, Volume Control
1/4" (6.35 mm) Unbalanced phone jack (360 mV/ no load)
XLR Balanced output (+/-12 mV/600 Ohm load) (2x for DW-22)
Power ON, RF/AF LEDs
60dB image and spurious
DC 13.5V Regulated @ 400mA
2.1mm jack
8 x 6 x 1.75" (203 x 152 x 44mm)
12 oz (340g)
+13dBm, (50mW maximum allowed by FCC)
< -50 dB
1/8" (3.5mm) locking mini-jack
Power On/Off, Audio Mute
Unit on (single flash), Low Battery Alert (red)
Up to 11 Hours
Required, not included
Alkaline
AA
4
2.5 x 4.25 x 0.5" (64 x 108 x 13mm)
2.39 oz (68g)
634343117882

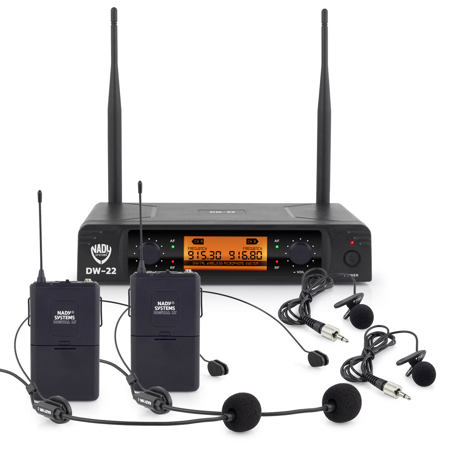

Under the banner of Nady's renowned audio innovation, the DW-22 Digital Wireless Lapel/Headset Microphone System stands out as a high-quality, professional-grade solution for crystal-clear digital sound delivery. This versatile system is meticulously designed for presenters and performers who demand reliability and ease of use without compromising on sound quality.
Crafted with durability in mind, the DW-22 system features state-of-the-art digital wireless technology, ensuring a robust connection that can withstand the rigors of live performances and presentations. With a 48 kHz / 24-bit digital audio conversion, users experience exceptional audio clarity that faithfully reproduces the full audible spectrum from 20Hz to 20kHz. This results in the truest sound reproduction with imperceptible latency, making it ideal for a range of applications including stage performances, karaoke, and public address scenarios such as classes and conferences.
The system's digital wireless operation is engineered to provide reliable, long-range connectivity, with an extended operating range of up to 300 feet line-of-sight. This allows for greater freedom of movement and confidence that your message will be heard clearly, even in large venues. The DQPSK modulation ensures that the digital transmission is virtually immune to interference from nearby obstacles, offering a clean, uninterrupted signal.
The Nady DW-22 system is not only easy to set up but also user-friendly, allowing for quick configuration and operation. The single receiver and transmitter design simplifies the process, making it a go-to choice for professionals who need a dependable wireless microphone system. The UHF 900MHz band operation further guarantees clear channel performance, free from the clutter of competing signals.
In summary, the Nady DW-22 Digital Wireless Lapel/Headset Microphone System is an easy-to-use, durable, and versatile choice for anyone in need of a professional wireless audio solution. Its superior digital sound quality, coupled with the reliability of Nady's design, makes it an excellent investment for those seeking the best in digital wireless microphone technology.
