Nady EO3 Wireless In-Ear Personal Monitoring System, AA/72.1MHz
See all Nady items

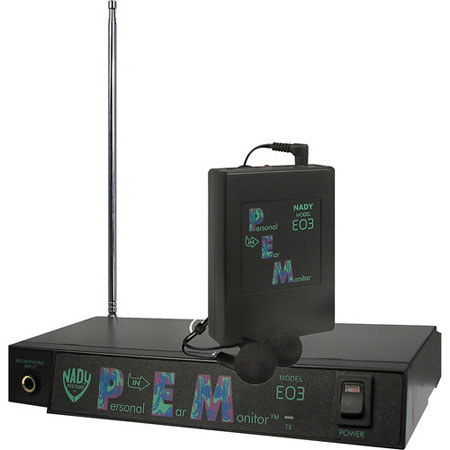

Nady EO3 Wireless In-Ear Personal Monitoring System, Includes Receiver, Transmitter, Earphones, Power Adapter, 300' Range, AA/72.1MHz

SKU: NAE03AA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Melody G : It is the safest best in ear system I’ve ever used.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Nady EO3 Specifications

  • Frequency

    AA / 72.1MHz

  • Frequency Response

    100Hz - 10kHz +/-3dB

  • Signal to Noise Ratio

    60dB

  • Total Harmonic Distortion (THD)

    < 0.5%

  • RF Carrier Frequency Range

    72-76 MHz

  • Frequency Stability

    > 0.005%

  • Modulation

    FM +/-75kHz

  • Operating range

    Up to 300' (91.4m) Line-of-Sight

  • Transmitter: Line Input

    Connector: One 1/4" phone jack
    Impedance: 100 K Ohms, unbalanced

  • Transmitter: Mic Input

    Connector: One 1/4" phone jack
    Impedance: low impedance, unbalanced, with 9 VDC at 1 mA for condenser mic

  • Transmitter: Power Output

    80,000 uV @ 3 meters

  • Transmitter: Controls

    Power On/Off, audio input gain adjust

  • Transmitter: Indicators

    Power On LED, Audio Modulation "TX" LED

  • Transmitter: Antenna

    Permanently mounted telescoping whip

  • Transmitter: Power requirement

    9 VDC regulated, @ 200 mA, AC-EO3 adapter provided

  • Receiver: Controls

    Combination volume/on-off wheel

  • Receiver: Audio Output

    100 mW max into 16 Ohms

  • Receiver: Connectors

    3.5 mm mini jack for earbuds output

  • Receiver: Earphones

    Binaural EB-3 earbuds with optional-use EMI soft rubber inserts

  • Receiver: Antenna

    Integral with earbud cord

  • Receiver: Indicators

    LED power on indicator

  • Receiver: Sensitivity

    2 uV for 12 dB Sinad with squelch defeated
    Squelches at 10 uV for min. 50 dB S-N ratio

  • Receiver: Mute Threshold

    8-10 uV

  • Receiver: Power requirement

    9V carbon zinc or alkaline battery

  • Receiver: Battery life

    17-20 hours with alkaline battery; 10-12 hours with carbon zinc battery

  • Dimensions

    Transmitter: 8.25 x 1.25 x 4.25" / 20.96 x 3.18 x 10.8cm
    Receiver: 2.75 x 3.35 x 0.75" / 6.98 x 8.51 x 1.91cm

  • Weight

    Transmitter: 18.2oz / 515.96g
    Receiver: 2.65oz / 75.13g (Without battery)

  • UPC Code

    634343124118

About Nady EO3

The Nady EO3 Wireless In-Ear Personal Monitoring System (AA/72.1MHz) is a professional wireless in-ear monitoring system that allows you to transmit audio to a performer at distances of up to 300'. The system consists of a compact base station transmitter and a lightweight beltpack receiver. The EO3 system is available in 72-76MHz band. This unit is set for channel AA: 72.1MHz.

The transmitter offers mic and line level inputs to accept a variety of sound sources. It can transmit to an unlimited number of receivers (extra receivers sold separately) and has an input gain control, plus an automatic level control function. It has an extendable antenna, plus LED indicators for visually monitoring the transmitter's status. It operates via the included 9VDC power supply adapter.

The compact beltpack receiver is lightweight and unobtrusive. It has a user-adjustable volume control, with the capability to provide up to 130dB of audio. Instead of a bulky external antenna, the receiver makes use of your connected earphone cord as the antenna. A pair of stereo EB-3 earphones with soft rubber eartips is included. The receiver has an LED power indicator and operates on a single 9V battery.

Nady EO3 Features

  • Any number of EO3 receivers can be used with a single EO3-T transmitter
  • Ultra compact and lightweight
  • Preset to one of eight channels in the 72-76 MHz range
  • Loudness adjustable with volume control-provides up to 130dB in-ear monitoring
  • Antenna is integral with earphone cord
  • A pair of mini binaural EB-3 earphones included; optional EMI soft rubber inserts supplied
  • LED Power On indicator
  • Single 9V alkaline battery operation
  • Transmitter: Ultra compact and lightweight
  • Transmitter: Broadcasts on one of eight channels in the 72-76 MHz band to any number of Nady EO3 wireless bodypack receivers on the same channel
  • Transmitter: 300 ft. wireless operating range
  • Transmitter: Eight factory switchable channels
  • Transmitter: Rear panel input for line level audio
  • Transmitter: Front panel input for microphone
  • Transmitter: Audio input gain control
  • Transmitter: Automatic level control
  • Transmitter: Extendable antenna
  • Transmitter: 9-volt DC input for AC-EO3; 9VDC regulated power supply adapter provided
  • Transmitter: Power switch with red LED Power On indicator
  • Transmitter: Audio modulation LED indicator

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ultra compact and lightweight
  • Antenna is integral
  • LED Power On indicator
  • Single 9V alkaline battery operation
  • Broadcast to any Nady EO3 bodypack on same channel
  • 300 ft. wireless operating range

What's in the box:

  • Nady EO3 Wireless Transmitter
  • Receiver
  • Power Adapter
  • Earphones
  • Nady Warranty
