Nady Encore Duet Dual Receiver VHF Wireless Guitar System, F & E
See all Nady items

Nady Encore Duet Dual Receiver VHF Wireless Guitar System, Includes Receiver, 2xTransmitters, 2 Antennas, Power Supply, F/203.400MHz & E/215.200MHz

SKU: NAENDTGTFE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Nady Encore Duet Specifications

  • RF Carrier Frequency Range

    F/203.400MHz & E/215.200MHz

  • Overall Frequency Response

    25-20,000 Hz, +/-3dB

  • Dynamic Range

    120dB

  • Total Harmonic Distortion

    < 0.3%

  • Frequency Stability

    +/- 0.005%, crystal controlled

  • Modulation

    FM (F3E), +/-20KHz maximum

  • Operating Range

    Up to 250' / 76.2m typical (depending on site conditions)
    up to 500'+ optimum line-of-sight

  • Encore Duet Receiver: Reception Mode

    Dual receivers (Channel A and Channel B)

  • Encore Duet Receiver: Controls

    Power ON/OFF, dual volume and mute controls (one each, Ch A/B)

  • Encore Duet Receiver: Connectors

    Dual balanced XLR and unbalanced adjustable 1/4" audio out jacks (Ch A & B mixed), 2.1mm barrel-type DC input jack

  • Encore Duet Receiver: LED Indicators

    Power ON, Dual 5-LED RF & AF level displays (Ch A/B)

  • Encore Duet Receiver: Power Requirements

    12V at 400mA, nominal, AC/DC adapter supplied

  • Encore Duet Receiver: Antenna

    11.2" (28.5cm), dual telescopic

  • Transmitter: Audio Inputs

    3.5mm mono locking jack for connecting to omni or unidirectional lavalier mic or unidirectional head worn mic, connecting to instrument cable (WGT)

  • Transmitter: Controls

    OFF/STANDBY/ON switch, input level adjust

  • Transmitter: LED Indicator

    Unit "ON" (single flash), Low Battery Alert (steady)

  • Transmitter: RF Power Out

    50mW (Maximum allowed by FCC)

  • Transmitter: Harmonic-Spurious Emissions

    > -40dB

  • Transmitter: Battery

    9V Alkaline

  • Transmitter: Battery Life

    Up to 15 hours

  • Dimensions

    Encore Duet Receiver: 1.75 x 7.5 x 8.1" / 4.4 x 19 x 20.6cm (Maximum)
    Transmitter: 4.1 x 2.4 x 0.8" / 10.4 x 6.1 x 2.0 cm

  • Weight

    Encore Duet Receiver: 1.6lbs / 0.73kg
    Transmitter: 3.6oz / 102g (without battery)

  • UPC Code

    634343005592

About Nady Encore Duet

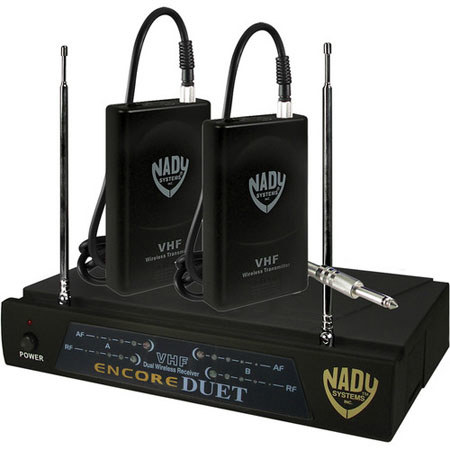

The Nady Encore Duet Dual Receiver VHF Wireless Guitar System (F/203.400MHz & E/215.200MHz) brings you a complete wireless solution for up to two guitars or other instruments and is a cable-free system for houses-of-worship, auditoriums, presentations, small performances and more.

The Encore Duet allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, two WGT Instrument Bodypack transmitters and 1/4" phone and XLR outputs for connection to PA systems. Each transmitter operates up to 15 hours on a single 9V battery.

Nady Encore Duet Features

  • Half-rack receiver design with retractable front panel antennas
  • Unique snap-out panel locking tabs for optional single receiver rack mounting or dual receiver (side-by-side) rack mounting
  • RF and AF 5-LED displays for monitoring incoming signal strength and audio level; balanced XLR and unbalanced adjustable 1/4" jack output
  • Noiseless transmitter On/Off switching
  • Features the Nady DM-20 unidirectional dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
  • Operates up to 15 hours on a single 9V alkaline battery
  • Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
  • Easily accessible Input Level Adjust for optimum sound
  • WGT Instrument Bodypack Transmitters: Off/Standby/On switch allows convenient audio muting with the transmitter on
  • WGT Instrument Bodypack Transmitters: Input level adjust
  • WGT Instrument Bodypack Transmitters: Locking 3.5mm jack
  • WGT Instrument Bodypack Transmitters: LED status indicator flashes once for unit on, lights steady for low-battery alert

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Half-rack receiver design
  • RF & AF 5-LED displays for monitoring incoming signal strength & audio level
  • Balanced XLR & unbalanced adjustable 1/4" jack output
  • Operates up to 15 hours on a single 9V alkaline battery
  • WGT Instrument Bodypack Transmitters

What's in the box:

  • Nady Encore Duet Receiver
  • 2 x WGT Instrument Bodypack Transmitters
  • 2 x Antennas
  • Instrument Cord
  • Power Supply
  • Nady 1 Year Limited Warranty
