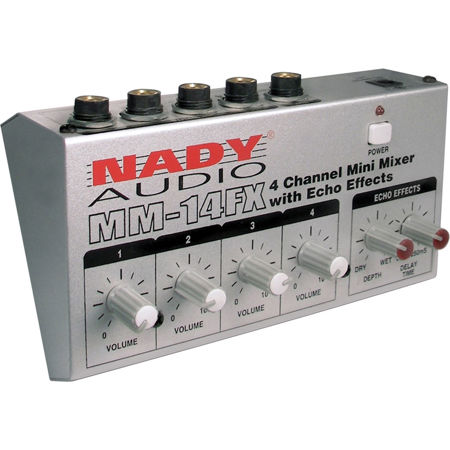

Nady MM-14FX 4-Channel Mini Mixer With Echo Effects

SKU: NAMM14FX

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Nady MM-14FX Specifications

  • Impedance

    Input: 5K Ohms
    Output: 800 Ohms

  • Maximum Input

    -13dBm (200mV)

  • Sensitivity

    -45dBm (8mV)

  • Maximum Output

    +6.5dBm (2V)

  • Max Gain

    49.1dB

  • Frequency Response

    20Hz - 18KHz (+/-3dB)

  • THD+Noise

    0.09%

  • S/N

    -78dB

  • Noise Floor

    300uV

  • Current Drain

    35mA

  • 9V Battery Life

    up to 20 hours

  • Power Requirements

    9V battery or optional PAD-1 AC/DC adapter

  • Dimensions

    6 x 3.3 x 2" (152 x 84 x 52mm)

  • Weight

    0.9 lbs (0.4kg)

  • UPC Code

    634343270129

About Nady MM-14FX

The Nady MM-14FX 4-Channel Mini Mixer provides high-quality audio mixing in a compact and durable design. It offers four 1/4" microphone inputs, mixed to a single 1/4" output with individual level controls are provided for each channel. The MM-14FX delivers high-quality audio with up to 50dB of gain per channel, low distortion, and a high signal-to-noise ratio to deliver all the details in your audio. What sets this mixer apart is the built-in echo effects DSP offers delay time and depth controls to simulate the reverb of various environments. Eliminate the need for bulkier, more expensive mixers, and take the MM-14FX anywhere with you with its 9V battery operation. The MM-14FX can also be powered using the optional PAD-1 9V external power supply.

Nady MM-14FX Features

  • Four mono 1/4" microphone inputs with individual volume controls
  • Built-in echo effects DSP with delay time and depth controls; simulates room/hall/ stadium decay reverbs
  • 1/4" unbalanced output
  • Up to 50dB of gain per channel
  • Power On/Off switch with LED indicator
  • 9VDC powered with either 9V alkaline battery or optional PAD-1 AC/DC external adapter

Key Features

  • Four mono 1/4" microphone inputs with individual volume controls
  • 1/4" unbalanced output
  • Up to 50dB of gain per channel
  • Power On/Off switch with LED indicator
  • 9VDC powered with either 9V alkaline battery or optional PAD-1 AC/DC external adapter

What's in the box:

  • MM-14FX 4-Channel Mini Mixer With Echo Effects
  • Nady 1 Year Limited Warranty
