NUGEN Audio MultiMonitor Multi-Channel Loudness Metering Software, Electronic Download

Enhance your audio monitoring capabilities with the MultiMonitor Multi-Channel Loudness Metering Software, available for electronic download. This powerful software offers a comprehensive multi-channel loudness and true-peak monitoring system, either as a standalone product or as part of the SSL LMS-16 turnkey solution.

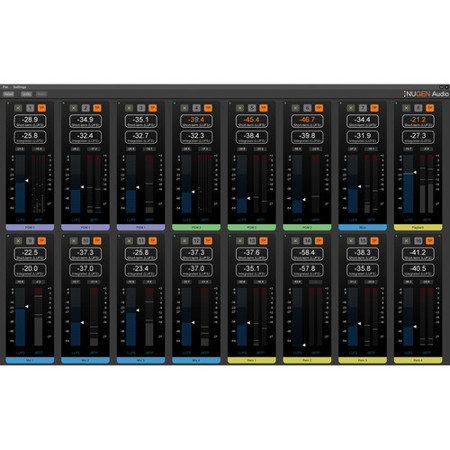

MultiMonitor boasts 16 dedicated real-time meters, each capable of handling mono, stereo, or 5.1 formats. This allows for the monitoring of up to 96 simultaneous audio channels, providing individual True Peak and LUFS momentary displays. Each meter features a dedicated numeric Short Term and Integrated LUFS data display, and can be color-coded for easy grouping.

The software also includes a minimum and maximum short-term alerts function, ensuring you never miss critical audio changes. MultiMonitor is fully compliant with international standards including CALM Act legislation, ITU-R BS1770/1, ATSC A/85, EBU R128, and other specific worldwide localizations.

Ideal for monitoring multiple playback sources or audio sub-groups simultaneously, MultiMonitor is perfect for use in the audio control room, alongside the console for 5.1 and stereo PGM output. It's also well-suited for the MCR, allowing for the simultaneous monitoring of multiple studios and formats.

MultiMonitor's network data and logging features include network data reset and loudness value acquisition, facilitating seamless integration into an automated playout system. It also allows for the generation of individual file-based logs for each meter independently.

With MultiMonitor, you can perform station monitoring and historical diagnostics, manage live broadcast levels rapidly and objectively, achieve channel loudness consistency, maintain loudness consistency across channels, meet recent legislation and adopted standards, harmonize program content, and consistently balance music, dialog, and special effects.

The software is compatible with both OSX and Windows and offers a flexible solution with GPI remote reset, network meter reset, network parameter acquisition, color-coding, and individual meter naming.

The turnkey hardware solution, SSL LMS-16, includes a 1RU PC with a 15-second boot time, SSL MadiXtreme audio interface, 2 x 64 channel fiber connection, GPI connectivity, and an optional LCD monitor arm.

MultiMonitor supports all recommendations and guidance based on the international standard ITU-R B.S. 1170, revisions 1, 2, and 3, including ATSC A/85 (CALM ACT), EBU R128, ARIB TR-B32, OP-59, AGCOM 219/9/CSP, and DPP.

In summary, MultiMonitor is a robust and versatile solution for all your multi-channel loudness and true-peak monitoring needs.
