Nady RPA-6 Sound System with 6 Mono Balanced Inputs, Single
See all Nady items

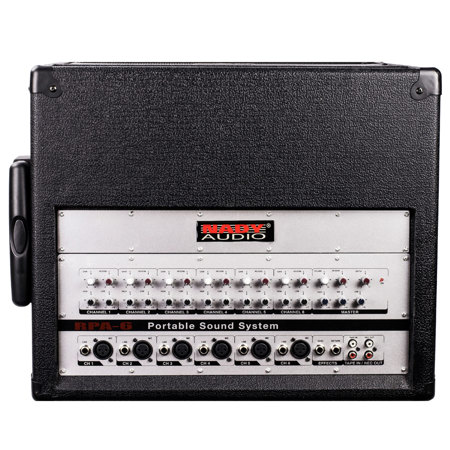

Nady RPA-6 Portable Sound System with 6 Mono Balanced Inputs, 130W RMS Power, Single

SKU: NARPA6

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Nady RPA-6 Specifications

Amplifier and Speaker

Amplifier and Speaker

Jump to...

  • Power

    130W RMS at 4Ohms

  • S/N Ratio

    >115dB

  • THD Power output (20Hz to 20KHz)

    <0.1%

  • Speaker

    8Ohms

  • Tweeter type

    Piezoelectric Horn

  • Woofer

    12" (30.48cm)

Frequency Response (Mic Input to Output)

Jump to...

  • Line level O/P at +4dBu into 600 Ohms

    20Hz - 20KHz (+/-3dB)

  • Power amp O/P 1 watt into 8Ohms per side

    20Hz - 20KHz (+/-3dB)

Sensitivity

Jump to...

  • Mic/Line

    -54/-24dB (at Line Output +4dBu with Master and Channels controls set to MID)

  • Tape in

    -6dB

  • Max Input Level XLR

    -9dB

  • Max Input Level 1/4"

    +22dB

Channel Equalization

Jump to...

  • Low EQ

    100Hz +/-15dB

  • Hi EQ

    12KHz +/-15dB

Master Equalization

Jump to...

  • Low EQ

    100Hz +/-15dB

  • Mid EQ

    1.5KHz +/-15dB

  • Hi EQ

    10KHz +/-15dB

General

Jump to...

  • Microphone Preamp E.I.N.

    -102 dBm (150Ohms Terminated, max. Gain)

  • Power requirements

    100-120, 220-240 VAC, 50-60Hz

  • Fusing

    5x20mm glass type, 4A/250V for 115VAC and 3A/250V for 230VAC operation, fast-blow fuse

  • Dimensions (HxWxD)

    22.8 x 19.5 x 16" (57.91 x 49.53 x 40.64cm)

  • Weight

    66 lbs (29.94kg)

Other

Jump to...

  • UPC Code

    634343262315

About Nady RPA-6

• Compact ("take anywhere"), complete one-piece portable sound system with built-in powered mixer and speaker
• Collapsible/locking handle and built-in rubber rollerblade wheels
• DSP Reverb with Level and Depth controls
• 1/4" Effect Send, Return and Line Out jacks; RCA Tape In/Rec Out
• Master Volume; High, Mid and Low EQ controls
• Rugged enclosure with vinyl cover, carrying handles and basemount for mounting on speaker stand
• 130W RMS at 4 Ohms
• 6 mono balanced (XLR and 1/4" TRS) inputs
• 12" woofer and piezo tweeter
• Channel Controls - Gain, Reverb, High EQ, Low EQ controls

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Nady RPA-6 Portable Sound System with 6 Mono Balanced Inputs
  • AC Power Cord
  • Manual
  • Nady 1 Year Warranty
