Nady SD-2418 Audio Signal Distributor
See all Nady items

Nady SD-2418 Audio Signal Distributor

SKU: NASD2418
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Nady SD-2418 Specifications

  • Frequency Response

    20Hz - 20KHz +/-3dB

  • Total Harmonic Distortion (THD) + Noise

    < 0.03 %

  • S/N Ratio

    > 98 dB

  • Maximum Gain

    +6dB per channel

  • Impedance

    Input: 20K Ohm
    Output: 300 Ohm

  • Power

    115 VAC 60Hz / 230 VAC 50Hz

  • Rack Space

    1u

  • Dimensions

    19 x 1.73 x 5.9" (483 x 44 x 150mm)

  • Weight

    5.3 lbs (2.4kg)

  • UPC Code

    634343259902

About Nady SD-2418

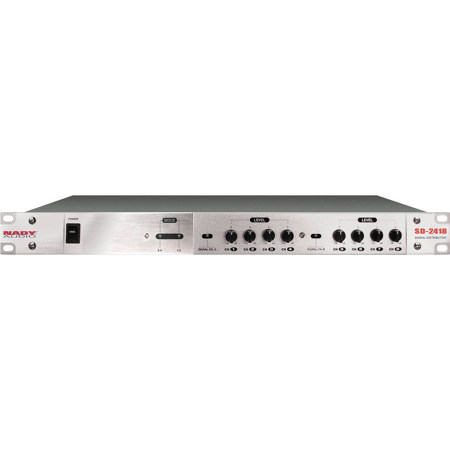

The SD-2418 Signal Distributor is used to split a stereo signal into 4 stereo outputs, or a mono signal into 8 mono outputs. It features a pair of balanced XLR female inputs and 8 XLR balanced outputs. Each output features a level control dial on the face of the 19" 1U rackmountable chassis. The front panel also features channel A/B signal selector switches, and output selector switches.

Nady SD-2418 Features

  • Splits balanced mono signal into eight separate balanced mono signals or stereo pair into four separate stereo pairs
  • Indispensable signal routing tool for live sound and recording applications requiring signal splitting and distribution with level matching to different equipment
  • Individual gain controls (up to +6dB gain) for all eight outputs; 2-4,1-8 split mode select switch and display; dual balanced inputs (Ch. A/B) with Link outputs for optimum signal routing flexibility in hookup
  • Wide dynamic range for optimum signal integrity and transparency

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wide dynamic range for optimum signal integrity and transparency

What's in the box:

  • SD-2418 Audio Signal Distributor
  • Instruction Manual
  • AC Power Cord
  • Nady 1 Year Limited Warranty
